固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422A1473K100FIXED IND 47UH 85MA 7 OHM SMD EPCOS - TDK Electronics |
9,235 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 85 mA | - | Unshielded | 7Ohm Max | 27 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1104K100FIXED IND 100UH 65MA 11.5OHM SMD EPCOS - TDK Electronics |
8,058 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 65 mA | - | Unshielded | 11.5Ohm Max | 27 @ 2.52MHz | 7MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1332K100FIXED IND 3.3UH 200MA 1.2OHM SMD EPCOS - TDK Electronics |
7,193 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 200 mA | - | Unshielded | 1.2Ohm Max | 27 @ 7.96MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1102J100FIXED IND 1UH 380MA 340 MOHM SMD EPCOS - TDK Electronics |
127,950 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 380 mA | - | Unshielded | 340mOhm Max | 20 @ 7.96MHz | 320MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1103K100FIXED IND 10UH 180MA 1.6 OHM SMD EPCOS - TDK Electronics |
7,435 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 180 mA | - | Unshielded | 1.6Ohm Max | 27 @ 2.52MHz | 25MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

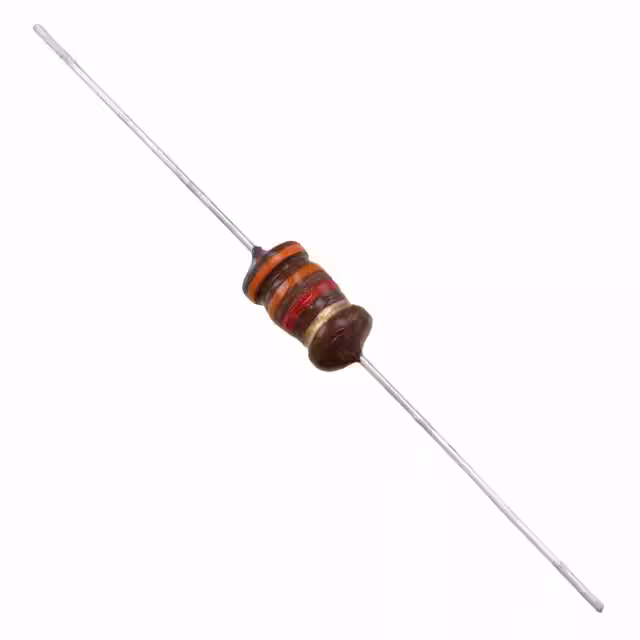

B82145A1335J000FIXED IND 3.3MH 200MA 12.5OHM TH EPCOS - TDK Electronics |
2,409 |
|
数据手册 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 200 mA | - | Unshielded | 12.5Ohm Max | 60 @ 252kHz | 600kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|
B82141A1104J000FIXED IND 100UH 170MA 3.5 OHM TH EPCOS - TDK Electronics |
8,105 |
|
数据手册 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 170 mA | - | Unshielded | 3.5Ohm Max | 60 @ 796kHz | 5.3MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82144A2474J000FIXED IND 470UH 280MA 2.5 OHM TH EPCOS - TDK Electronics |
10,079 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 280 mA | - | Unshielded | 2.5Ohm Max | 40 @ 796kHz | 1.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

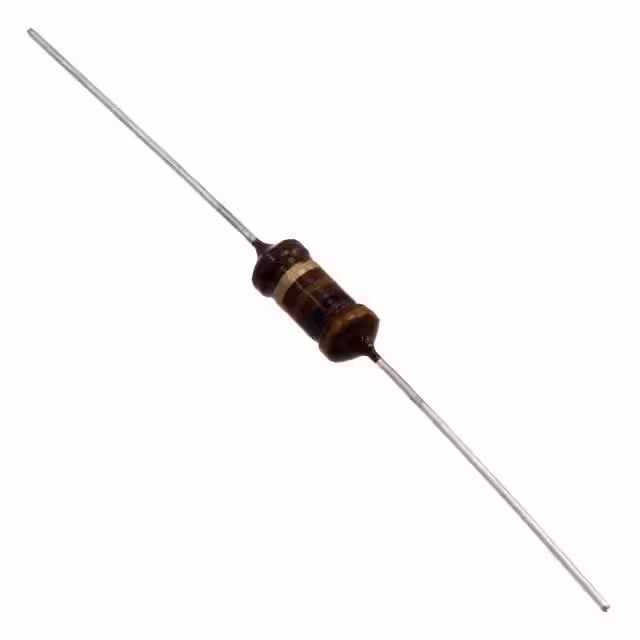

B82144A2104J000FIXED IND 100UH 600MA 700MOHM TH EPCOS - TDK Electronics |
6,975 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 600 mA | - | Unshielded | 700mOhm Max | 50 @ 796kHz | 3.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

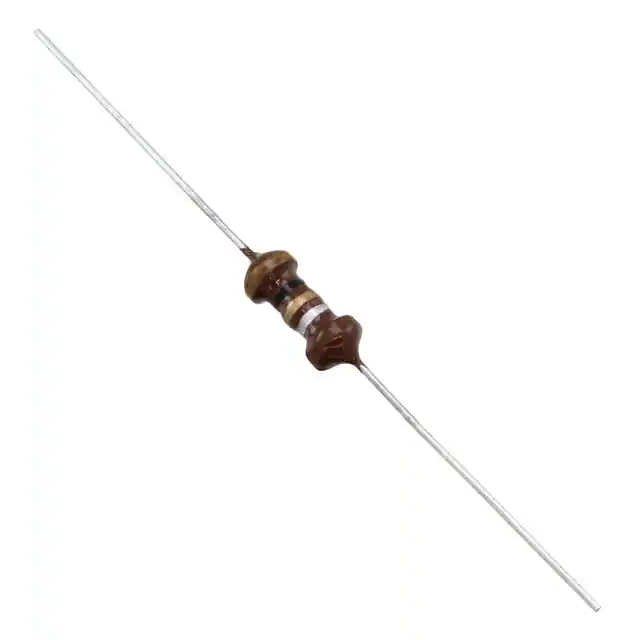

B82144A2102K000FIXED IND 1UH 2.2A 80 MOHM TH EPCOS - TDK Electronics |
6,464 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 2.2 A | - | Unshielded | 80mOhm Max | 40 @ 7.96MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
