固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

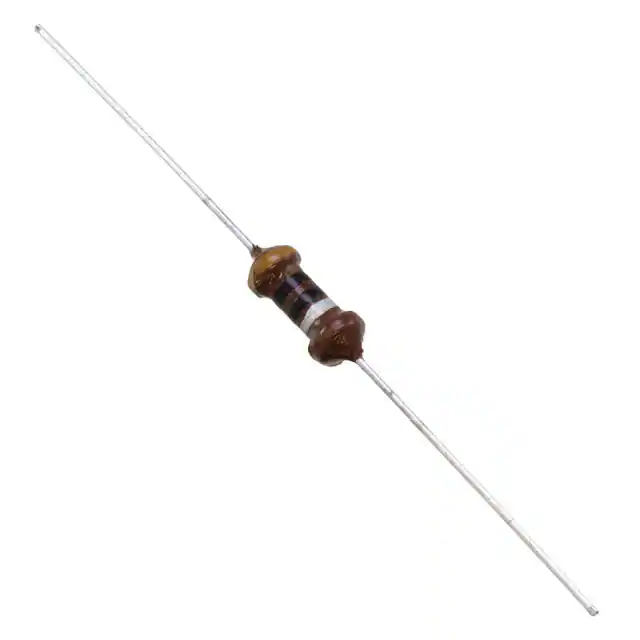

B82144A2103K000FIXED IND 10UH 1.4A 220 MOHM TH EPCOS - TDK Electronics |
5,217 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.4 A | - | Unshielded | 220mOhm Max | 60 @ 2.52MHz | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82144A2222K000FIXED IND 2.2UH 1.9A 110 MOHM TH EPCOS - TDK Electronics |
4,166 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1.9 A | - | Unshielded | 110mOhm Max | 40 @ 7.96MHz | 140MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

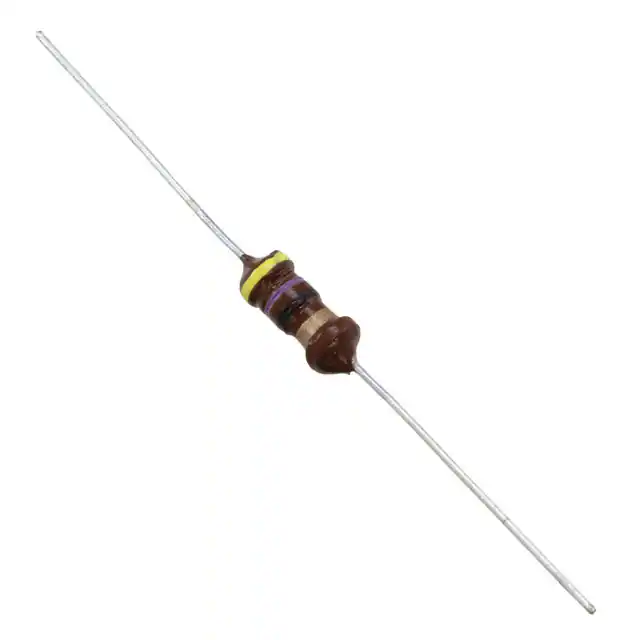

B82144A2473J000FIXED IND 47UH 800MA 500 MOHM TH EPCOS - TDK Electronics |
3,391 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 800 mA | - | Unshielded | 500mOhm Max | 40 @ 2.52MHz | 5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82144A2224J000FIXED IND 220UH 400MA 1.6 OHM TH EPCOS - TDK Electronics |
2,701 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 400 mA | - | Unshielded | 1.6Ohm Max | 50 @ 796kHz | 2.4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
.jpg)
|
B82422H1334K000FIXED IND 330UH 90MA 13 OHM SMD EPCOS - TDK Electronics |
40,301 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1224K000FIXED IND 220UH 100MA 10.9OHM SM EPCOS - TDK Electronics |
14,106 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10.9Ohm Max | 20 @ 796kHz | 5.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1682K000FIXED IND 6.8UH 570MA 350MOHM SM EPCOS - TDK Electronics |
14,150 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 570 mA | - | Unshielded | 350mOhm Max | 10 @ 2.52MHz | 35MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1153K000FIXED IND 15UH 390MA 720MOHM SMD EPCOS - TDK Electronics |
5,563 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 390 mA | - | Unshielded | 720mOhm Max | 12 @ 2.52MHz | 26MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1332K000FIXED IND 3.3UH 770MA 180MOHM SM EPCOS - TDK Electronics |
3,311 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 770 mA | - | Unshielded | 180mOhm Max | 10 @ 2.52MHz | 70MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1333K000FIXED IND 33UH 280MA 1.4 OHM SMD EPCOS - TDK Electronics |
2,673 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 280 mA | - | Unshielded | 1.4Ohm Max | 15 @ 2.52MHz | 15MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
