上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

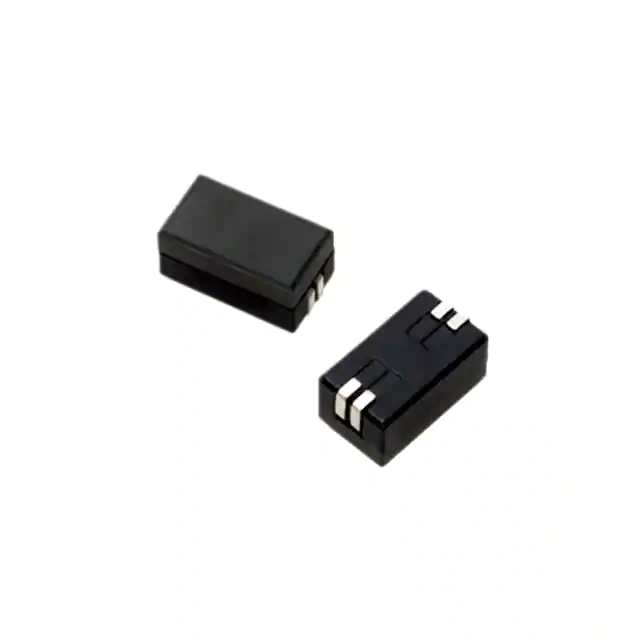

FPV1507-500-RFIXED IND 500NH 25A 1.15MOHM SMD Eaton - Electronics Division |
10,882 |
|
数据手册 |
FPV1507 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±10% | 25 A | 40A | Shielded | 1.15mOhm | 135 @ 1MHz | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.575" L x 0.327" W (14.60mm x 8.30mm) | 0.260" (6.60mm) |
|

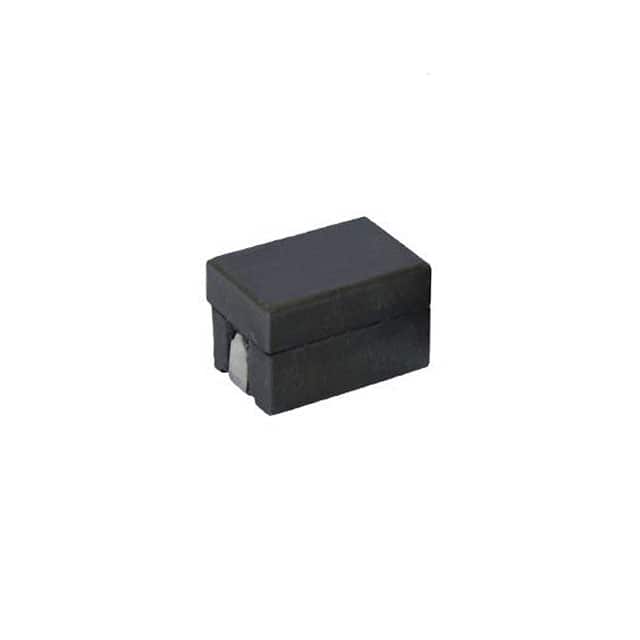

FP1108R1-R10-RFIXED IND 100NH 65A 0.29MOHM SMD Eaton - Electronics Division |
989 |
|
数据手册 |
FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 65 A | 100A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.303" W (10.70mm x 7.70mm) | 0.295" (7.50mm) |
|
MPI4015V2-100-RFIXED IND 10UH 1.8A 294 MOHM SMD Eaton - Electronics Division |
913 |
|
数据手册 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 1.8 A | 2.1A | Shielded | 294mOhm Max | - | 14MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|
UP1B-100-RFIXED IND 10UH 1.5A 110.7MOHM SM Eaton - Electronics Division |
1,423 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.9A | Unshielded | 110.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
FP1007R6-R47-RFIXED IND 470NH 61A 0.29MOHM SMD Eaton - Electronics Division |
47,936 |
|
数据手册 |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±10% | 61 A | 23.5A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
DRA74-150-RFIXED IND 15UH 2.06A 67 MOHM SMD Eaton - Electronics Division |
2,134 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.06 A | 2.36A | Shielded | 67mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|
MPI4020V2-R22-RFIXED IND 220NH 9.5A 6.6MOHM SMD Eaton - Electronics Division |
12,028 |
|
数据手册 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 9.5 A | 12.5A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|
DRA127-101-RFIXED IND 100UH 1.888A 175 MOHM Eaton - Electronics Division |
691 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.888 A | 3.46A | Shielded | 175mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MPI4015V2-4R7-RFIXED IND 4.7UH 2.2A 130MOHM SMD Eaton - Electronics Division |
7,414 |
|
数据手册 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 130mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|

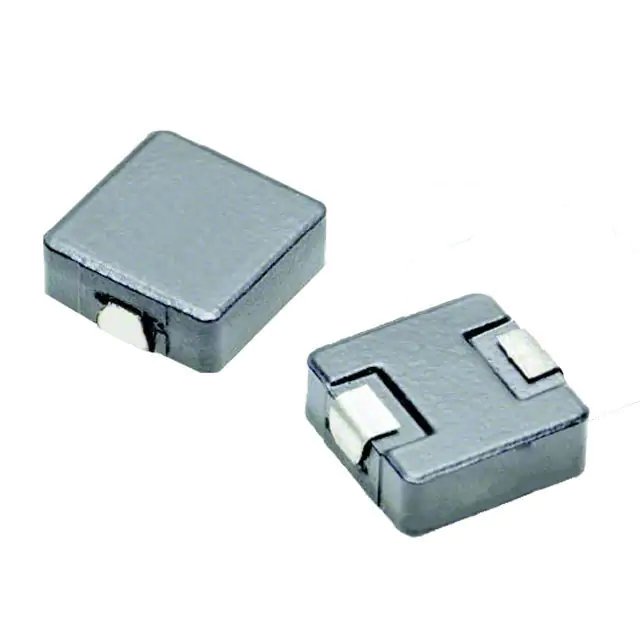

HCMA1305-R22-RFIXED IND 220NH 51A 0.72MOHM SMD Eaton - Electronics Division |
1,780 |
|
数据手册 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 51 A | 110A | Shielded | 0.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
