固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM0703-R15-RFIXED IND 150NH 26A 2.5 MOHM SMD Eaton - Electronics Division |
3,035 |
|
数据手册 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD Eaton - Electronics Division |
2,867 |
|
数据手册 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

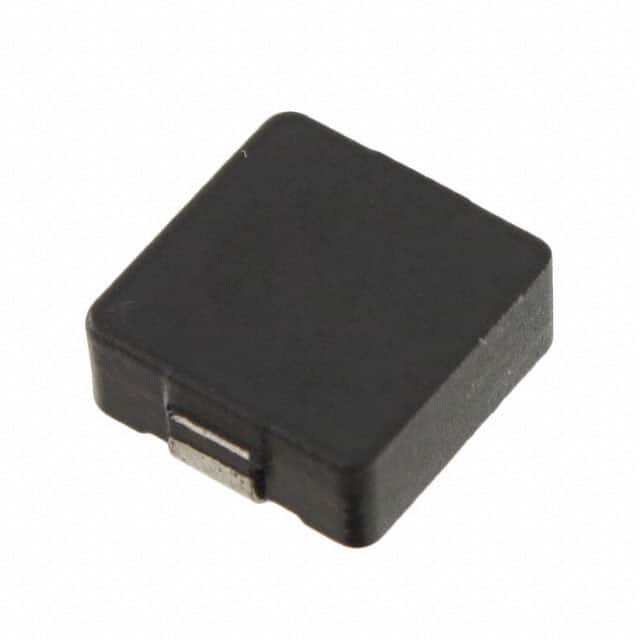

HCM1104-2R2-RFIXED IND 2.2UH 12A 7 MOHM SMD Eaton - Electronics Division |
564 |
|
数据手册 |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 12 A | 18A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
LD1-100-RFIXED IND 10UH 1.13A 182MOHM SMD Eaton - Electronics Division |
655 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.13 A | 1.28A | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
FP0906R1-R30-RFIXED IND 300NH 51A 0.29MOHM SMD Eaton - Electronics Division |
10,154 |
|
数据手册 |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 51 A | 27.5A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
FP0705R2-R07-RFIXED IND 72NH 38A 0.32 MOHM SMD Eaton - Electronics Division |
341 |
|
数据手册 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 72 nH | ±10% | 38 A | 65A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|

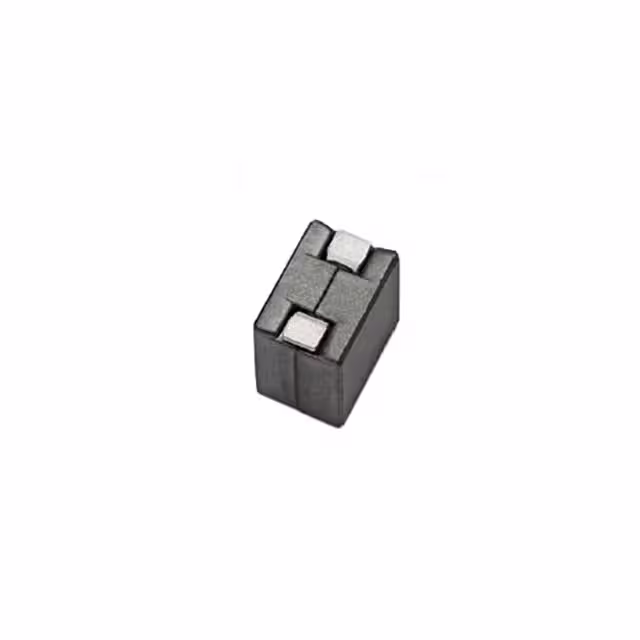

FP1110V1-R27-RFIXED IND 270NH 61A 0.23MOHM SMD Eaton - Electronics Division |
7,700 |
|
数据手册 |
FP1110V | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±10% | 61 A | 44A | Unshielded | 0.23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.374" (9.50mm) |
|
HCM1A0503-6R8-RFIXED IND 6.8UH 2.3A 97.2MOHM SM Eaton - Electronics Division |
2,000 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 2.3 A | 3.8A | Shielded | 97.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCM1A0503-100-RFIXED IND 10UH 2.4A 108MOHM SMD Eaton - Electronics Division |
1,580 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 2.4 A | 2.3A | Shielded | 108mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
DRA74-101-RFIXED IND 100UH 822MA 419MOHM SM Eaton - Electronics Division |
7,639 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 822 mA | 929mA | Shielded | 419mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
