固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A0503V2-R47-RFIXED IND 470NH 11A 6.1MOHM SMD Eaton - Electronics Division |
2,008 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 11 A | 12A | Shielded | 6.1mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

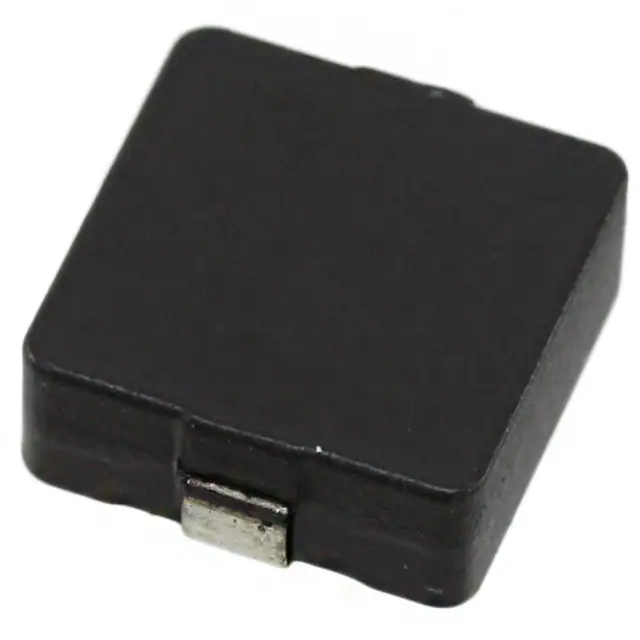

HCM1305-2R2-RFIXED IND 2.2UH 20A 5.29MOHM SMD Eaton - Electronics Division |
167 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 20 A | 32A | Shielded | 5.29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
DRA125-331-RFIXED IND 330UH 998MA 543MOHM SM Eaton - Electronics Division |
591 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 998 mA | 1.194A | Shielded | 543mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRA73-3R3-RFIXED IND 3.3UH 3.59A 22MOHM SMD Eaton - Electronics Division |
244 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 3.59 A | 4.35A | Shielded | 22mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

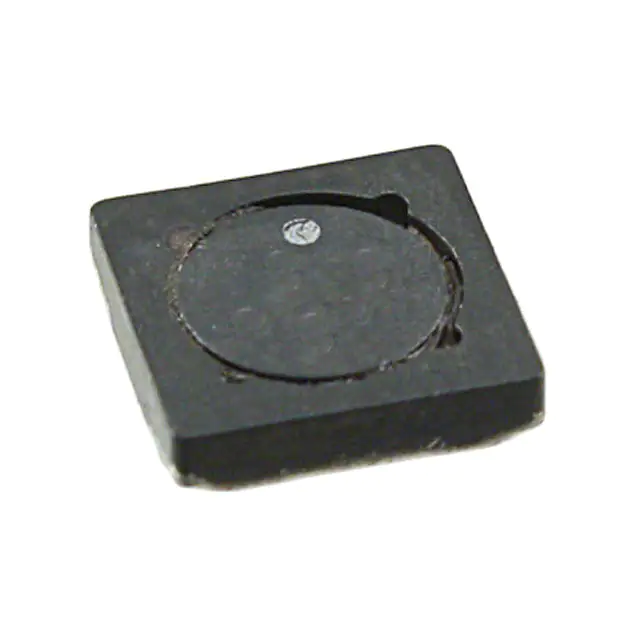

SD12-4R7-RFIXED IND 4.7UH 1.46A 117.7 MOHM Eaton - Electronics Division |
13,167 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.46 A | 1.29A | Shielded | 117.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
|
DRA125-8R2-RFIXED IND 8.2UH 6.41A 13MOHM SMD Eaton - Electronics Division |
595 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 6.41 A | 7.9A | Shielded | 13mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
EXLA1V0707-100-RIND MOLDED SHLD 10.0UH 5.0A Eaton - Electronics Division |
414 |
|
数据手册 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 7 A | 9A | Shielded | 26.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
MPI2510V2-2R2-RFIXED IND 2.2UH 2.1A 110MOHM SMD Eaton - Electronics Division |
8,185 |
|
数据手册 |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2.1 A | 2.8A | Shielded | 110mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
DRA74-1R5-RFIXED IND 1.5UH 5.55A 9.2MOHM SM Eaton - Electronics Division |
12,510 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 5.55 A | 8.36A | Shielded | 9.2mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
HCM1A0703V2-R68-RFIXED IND 680NH 12A 5.5MOHM SMD Eaton - Electronics Division |
3,491 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 12 A | 13A | Shielded | 5.5mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
