固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP3B-680-RFIXED IND 68UH 1.6A 155.8MOHM SM Eaton - Electronics Division |
3,403 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.6 A | 2A | Unshielded | 155.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

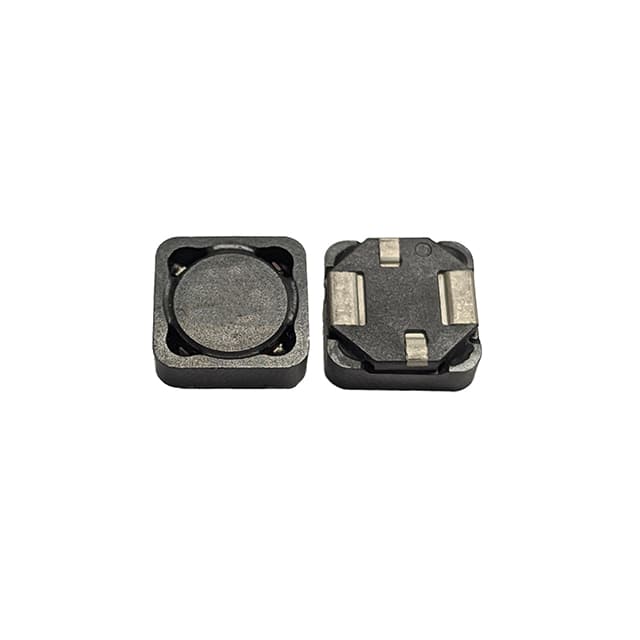

DRAP124-4R7-RFIXED IND 4.7UH 5.47A 17MOHM SMD Eaton - Electronics Division |
4,300 |
|
数据手册 |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 5.47 A | 9.06A | Shielded | 17mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
|
UP3B-151-RFIXED IND 150UH 1.2A 296MOHM SMD Eaton - Electronics Division |
2,225 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.2 A | 1.4A | Unshielded | 296mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

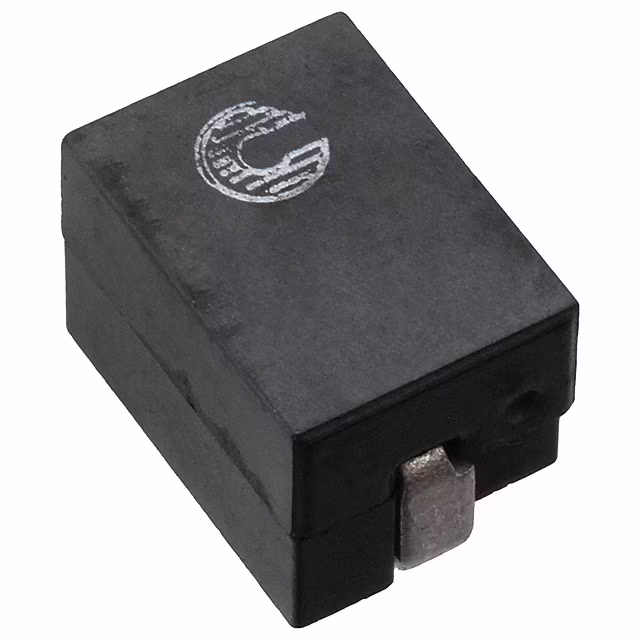

CTX01-18738-RFIXED IND 210NH 50A 0.29MOHM SMD Eaton - Electronics Division |
4,323 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 210 nH | ±10% | 50 A | 55A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.421" L x 0.303" W (10.70mm x 7.70mm) | 0.295" (7.50mm) |
|
HCM1A1305-1R5-RFIXED IND 1.5UH 18A 3.16MOHM SMD Eaton - Electronics Division |
1,940 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 18 A | 22A | Shielded | 3.16mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
FP1006V1-R100-RIND FLAT PAC 100NH 69A 2 PADS Eaton - Electronics Division |
2,660 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP1006V1-R070-RIND FLAT PAC 70NH 95A 2 PADS Eaton - Electronics Division |
2,405 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CPLE-4-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
3,046 |
|
数据手册 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.417" L x 0.394" W (36.00mm x 10.00mm) | 0.189" (4.80mm) |
|
HCM1A1307-R33-RFIXED IND 330NH 44A 0.92MOHM SMD Eaton - Electronics Division |
3,774 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 44 A | 72A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|

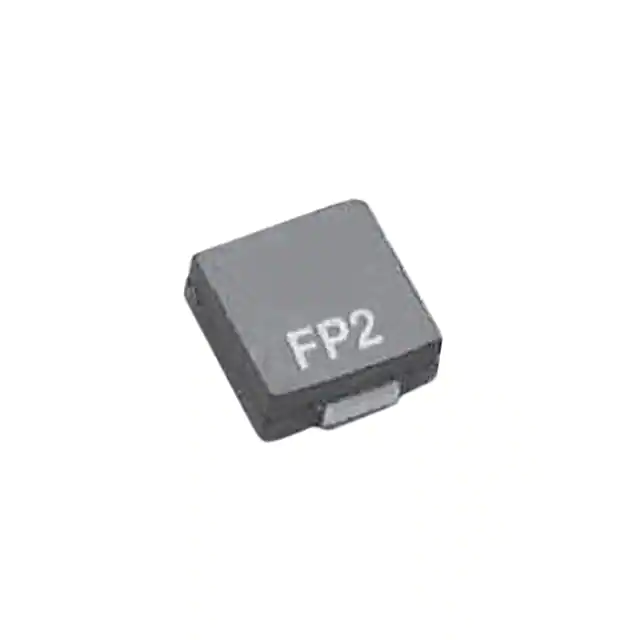

FP2-V150-RFIXED IND 150NH 37A 0.28MOHM SMD Eaton - Electronics Division |
3,952 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 37 A | 25.5A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.197" (5.00mm) |
