固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

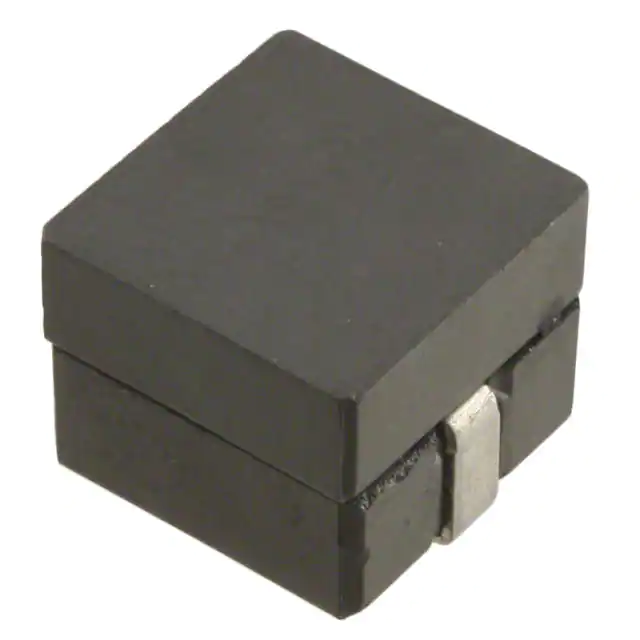

FP1109-R58-RFIXED IND 548NH 35A 0.42MOHM SMD Eaton - Electronics Division |
3,599 |
|
数据手册 |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 548 nH | ±10% | 35 A | 22.5A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
|
FP1109B1-R220-RFIXED IND 220NH 55A 0.19MOHM SMD Eaton - Electronics Division |
3,742 |
|
数据手册 |
FP1109 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 55 A | 40A | Unshielded | 0.19mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.323" W (11.00mm x 8.20mm) | 0.354" (9.00mm) |
|
HCM1406-R47-RFIXED IND 470NH Eaton - Electronics Division |
2,642 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | 470 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP1008R6-R180-RFIXED IND 180NH 74A 0.18MOHM SMD Eaton - Electronics Division |
1,322 |
|
数据手册 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 74 A | 53A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
FP2-D068-RFIXED IND 68NH 37A 0.26 MOHM SMD Eaton - Electronics Division |
4,566 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 nH | ±15% | 37 A | 32A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
|
FP1012V3-R100-RIND FP1012V3-R100-R FLAT-PAC Eaton - Electronics Division |
1,210 |
|
数据手册 |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 84 A | 110A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
FP1012V3-R080-RIND FP1012V3-R080-R FLAT-PAC Eaton - Electronics Division |
1,180 |
|
数据手册 |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±10% | 84 A | 170A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
HCM1305-150-RFIXED IND 15UH 7.7A 33.4MOHM SMD Eaton - Electronics Division |
1,375 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 7.7 A | 13A | Shielded | 33.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-330-RFIXED IND 33UH 5.2A 85.5MOHM SMD Eaton - Electronics Division |
4,724 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 5.2 A | 8A | Shielded | 85.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-5R6-RFIXED IND 5.6UH 11.5A 13.8 MOHM Eaton - Electronics Division |
2,498 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 11.5 A | 22A | Shielded | 13.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
