固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

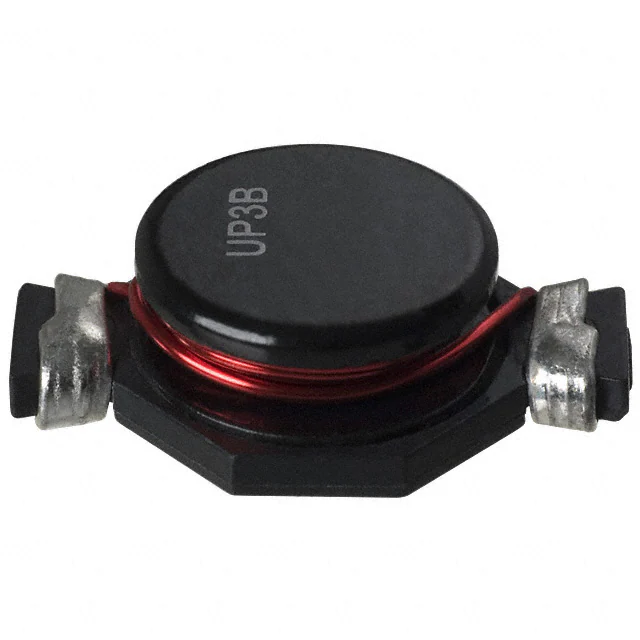

UP3B-3R3-RFIXED IND 3.3UH 8A 8.3 MOHM SMD Eaton - Electronics Division |
2,956 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8 A | 9.3A | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

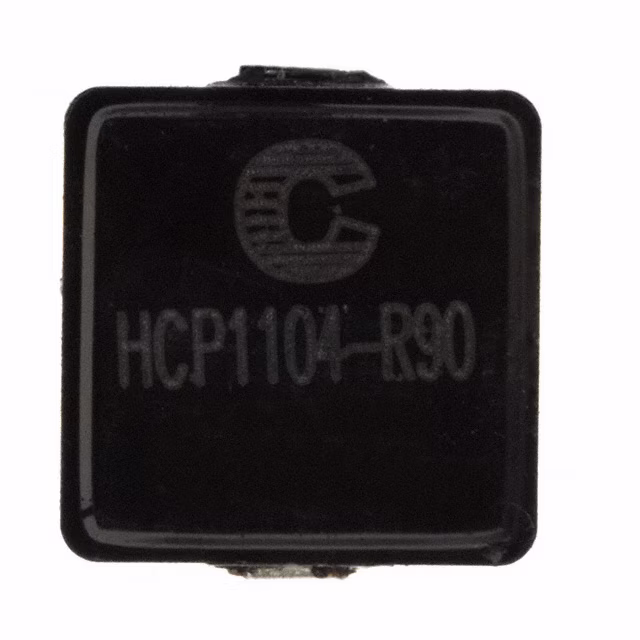

HCP1104-R90-RFIXED IND 900NH 22A 2.5 MOHM SMD Eaton - Electronics Division |
3,821 |
|
数据手册 |
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 900 nH | ±20% | 22 A | 25A | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
TL1211V3-R150-RTRANS IND 150NH 84A 4PADS SMT Eaton - Electronics Division |
4,203 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SD25-1R5-RFIXED IND 1.5UH 3.12A 27.4 MOHM Eaton - Electronics Division |
2,780 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.12 A | 3.23A | Shielded | 27.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|

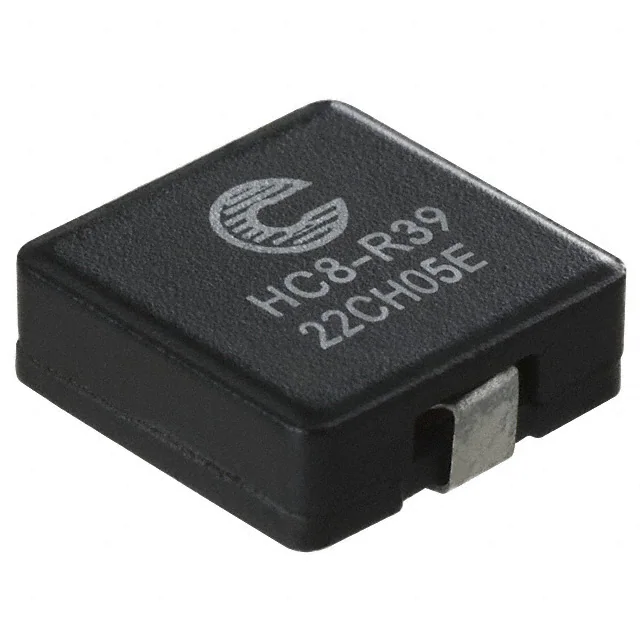

HC8-R39-RFIXED IND 390NH 28.3A 1.55 MOHM Eaton - Electronics Division |
3,287 |
|
数据手册 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 390 nH | ±20% | 28.3 A | 45A | Unshielded | 1.55mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
HC7-R47-RFIXED IND 470NH 23.4A 1.6MOHM SM Eaton - Electronics Division |
2,489 |
|
数据手册 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 23.4 A | 51.9A | Unshielded | 1.6mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|

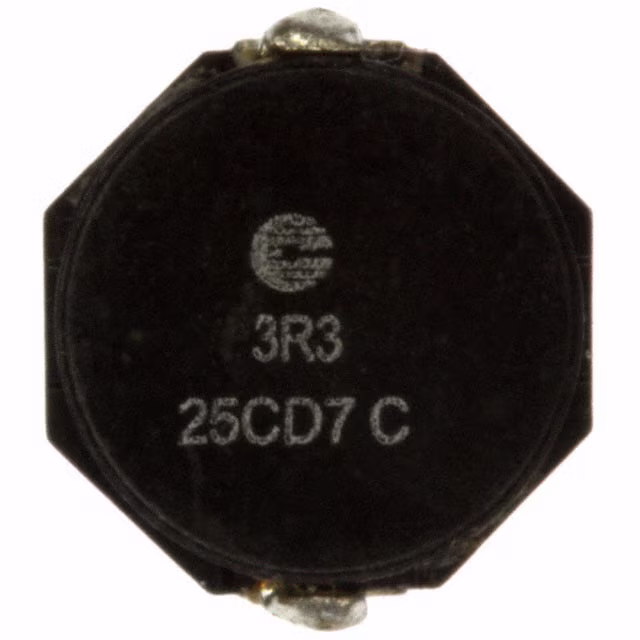

SD8328-3R3-RFIXED IND 3.3UH 6.1A 18 MOHM SMD Eaton - Electronics Division |
3,814 |
|
数据手册 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.1 A | 4A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
SD8328-680-RFIXED IND 68UH 980MA 286MOHM SMD Eaton - Electronics Division |
3,079 |
|
数据手册 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 980 mA | 1A | Shielded | 286mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
|
CPL-5-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
2,269 |
|
数据手册 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.772" L x 0.335" W (45.00mm x 8.50mm) | 0.189" (4.80mm) |
|
HCM1A1104-100-RFIXED IND 10UH 5A 30 MOHM SMD Eaton - Electronics Division |
3,819 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
