固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAP127-R47-RFIXED IND 470NH 15.9A 3MOHM SMD Eaton - Electronics Division |
2,257 |
|
数据手册 |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | 15.9 A | 56A | Shielded | 3mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
|
DRAP127-681-RFIXED IND 680UH 736MA 1.39OHM SM Eaton - Electronics Division |
1,973 |
|
数据手册 |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 736 mA | 1.33A | Shielded | 1.39Ohm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
UP4B-151FIXED IND 150UH 1.7A 239.2 MOHM Eaton - Electronics Division |
2,169 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.7 A | 3A | Unshielded | 239.2mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
|
UP4B-221FIXED IND 220UH 1.4A 357.1 MOHM Eaton - Electronics Division |
2,175 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.4 A | 2.4A | Unshielded | 357.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
DRA127-1R5-RFIXED IND 1.5UH 15.32A 2.7 MOHM Eaton - Electronics Division |
1,780 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 15.32 A | 31.1A | Shielded | 2.7mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
FP0910V3-R330-RFLAT PAC POWER INDUCTOR SMT 2P Eaton - Electronics Division |
4,212 |
|
数据手册 |
FP0910 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±10% | 44 A | 23A | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.374" (9.50mm) |
|
|
FP1012V1-R120-RFIXED IND 120NH Eaton - Electronics Division |
2,207 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | 120 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP1012V1-R220-RFIXED IND 220NH Eaton - Electronics Division |
2,426 |
|
数据手册 |
- | - | Tape & Reel (TR) | Active | - | - | 220 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

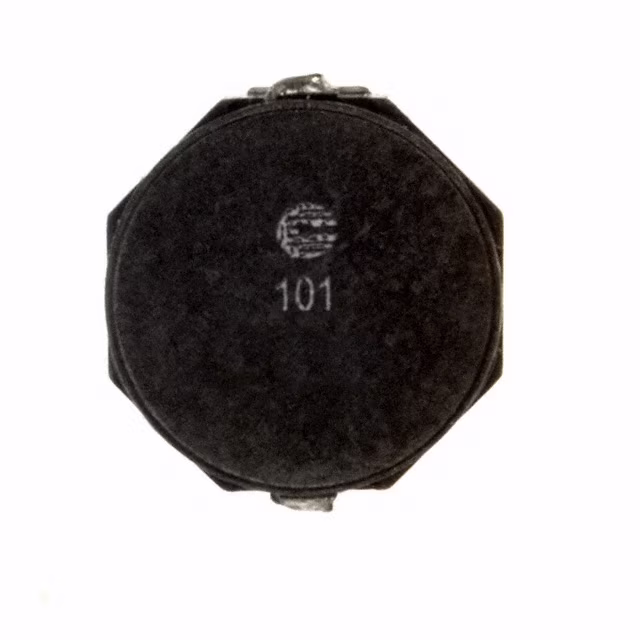

SD8350-101-RFIXED IND 100UH 800MA 360MOHM SM Eaton - Electronics Division |
1,346 |
|
数据手册 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 800 mA | 1.3A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
|
SD8350-150-RFIXED IND 15UH 2.3A 53 MOHM SMD Eaton - Electronics Division |
3,606 |
|
数据手册 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.3 A | 2.9A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
