固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2.8B-331-RFIXED IND 330UH 420MA SMD Eaton - Electronics Division |
1,348 |
|
数据手册 |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
FP1012V2-R470-RIND FLAT PAC 470NH 22A SMT 2 Eaton - Electronics Division |
2,897 |
|
数据手册 |
FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±15% | 84 A | 22A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|

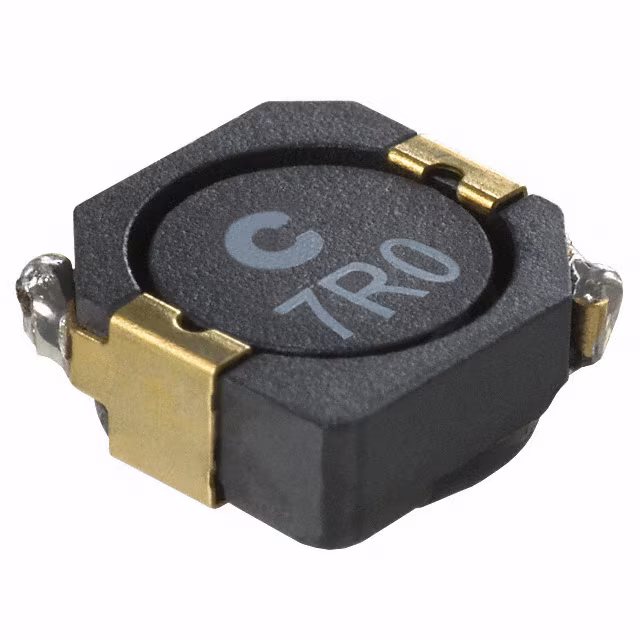

CD1-7R0-RFIXED IND 7UH 4.55A 27 MOHM SMD Eaton - Electronics Division |
4,235 |
|
数据手册 |
CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 4.55 A | 4.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
|
HCM1A1105V2-R68-RFIXED IND 680NH 24.5A 1.93 MOHM Eaton - Electronics Division |
1,446 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 24.5 A | 30A | Shielded | 1.93mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
MP2A-R47-RFIXED IND 470NH 3.52A 24MOHM SMD Eaton - Electronics Division |
4,889 |
|
数据手册 |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 470 nH | ±20% | 3.52 A | 5.8A | Unshielded | 24mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
UP1B-151-RFIXED IND 150UH 400MA 1.61OHM SM Eaton - Electronics Division |
2,923 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 400 mA | 460mA | Unshielded | 1.61Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
RL1218-331-RFIXED IND 330UH 1.25A 366MOHM TH Eaton - Electronics Division |
4,719 |
|
数据手册 |
RL1218 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.25 A | 1.73A | Unshielded | 366mOhm Max | - | 2MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.480" Dia (12.20mm) | 0.709" (18.00mm) |
|
|
CPL-3-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
1,035 |
|
数据手册 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.063" L x 0.335" W (27.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
MP2A-1R0-RFIXED IND 1UH 2.11A 67 MOHM SMD Eaton - Electronics Division |
1,835 |
|
数据手册 |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 1 µH | ±20% | 2.11 A | 3.63A | Unshielded | 67mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
MP2A-R68-RFIXED IND 680NH 3.31A 27MOHM SMD Eaton - Electronics Division |
3,243 |
|
数据手册 |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 680 nH | ±20% | 3.31 A | 4.83A | Unshielded | 27mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
