固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

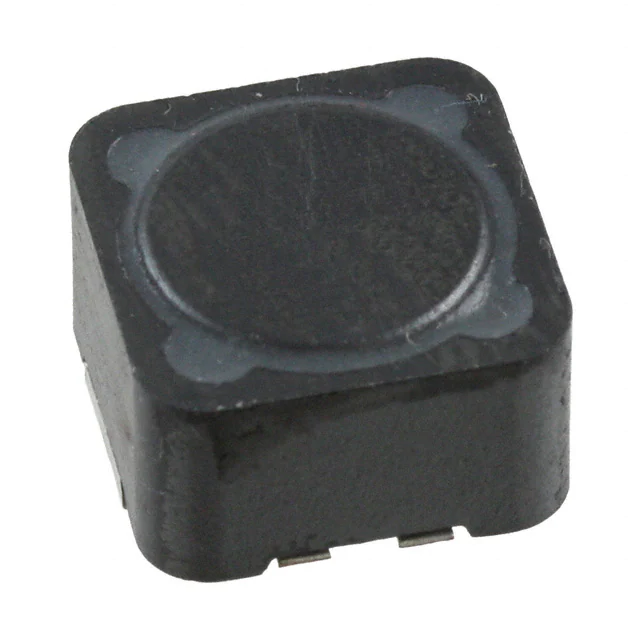

DR127-681FIXED IND 680UH 760MA 1.08OHM SM Eaton - Electronics Division |
1,438 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 760 mA | 1.39A | Shielded | 1.08Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
DR127-821FIXED IND 820UH 650MA 1.47OHM SM Eaton - Electronics Division |
3,161 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 650 mA | 1.27A | Shielded | 1.47Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

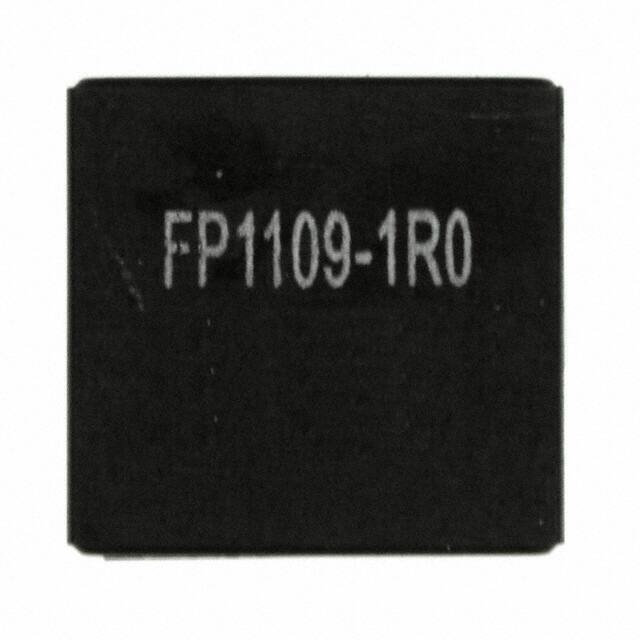

FP1109-1R0-RFIXED IND 950NH 35A 0.42MOHM SMD Eaton - Electronics Division |
1,503 |
|
数据手册 |
FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 950 nH | ±10% | 35 A | 11.5A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
UP2-3R3-RFIXED IND 3.3UH 6.5A 13.8MOHM SM Eaton - Electronics Division |
4,957 |
|
数据手册 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.5 A | 5.1A | Unshielded | 13.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
UP3B-R47-RFIXED IND 470NH 16A 2.1 MOHM SMD Eaton - Electronics Division |
2,669 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 16 A | 25.1A | Unshielded | 2.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
SD3112-151-RFIXED IND 150UH 149MA 6.01OHM SM Eaton - Electronics Division |
4,532 |
|
数据手册 |
SD3112 | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 149 mA | 142mA | Shielded | 6.01Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.047" (1.20mm) |
|
DRA127-R47-RFIXED IND 470NH 22.5A 1.2MOHM SM Eaton - Electronics Division |
4,892 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 22.5 A | 56A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
FP1010R3-R270-RIND FLAT PAC 270NH 63A 2 PADS Eaton - Electronics Division |
2,832 |
|
数据手册 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±10% | 78 A | 30A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010R3-R330-RIND FLAT PAC 330NH 63A 2 PADS Eaton - Electronics Division |
2,486 |
|
数据手册 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 78 A | 20A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010R3-R300-RIND FLAT PAC 300NH 63A 2 PADS Eaton - Electronics Division |
2,936 |
|
数据手册 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±10% | 78 A | 27A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
