固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

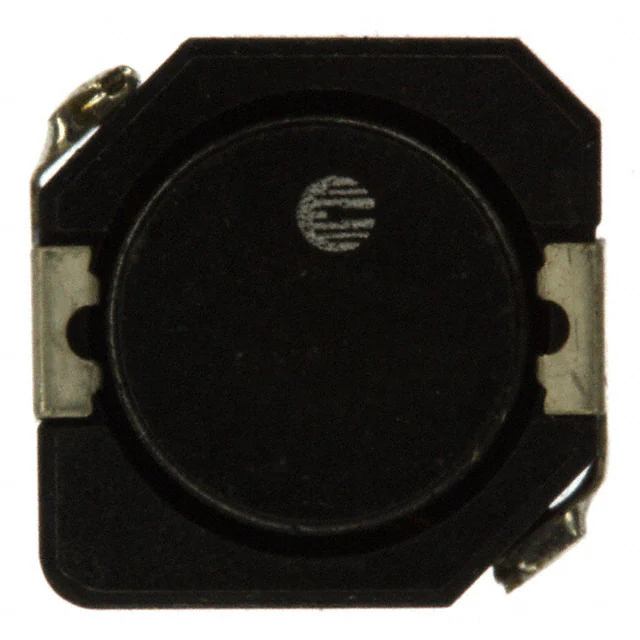

DR1040-820-RFIXED IND 82UH 1.29A 260MOHM SMD Eaton - Electronics Division |
850 |
|
数据手册 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.29 A | 1.47A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
UP2UC-680-RFIXED IND 68UH 1.5A 200 MOHM SMD Eaton - Electronics Division |
700 |
|
数据手册 |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.5 A | 1.4A | Unshielded | 200mOhm Max | - | 10MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
|
UP2UC-2R2-RFIXED IND 2.2UH 6.1A 12 MOHM SMD Eaton - Electronics Division |
600 |
|
数据手册 |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 12mOhm Max | - | 80MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.21mm) |
|
HCM1A1104V2-R47-RFIXED IND 470NH 25A 1.27MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 25 A | 35A | Shielded | 1.27mOhm Max | - | 73MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
HCM1A1104V2-1R5-RFIXED IND 1.5UH 14A 4.2 MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 14 A | 22A | Shielded | 4.2mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
HCM1A1105V2-220-RFIXED IND 22UH 4A 61 MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-150-RFIXED IND 15UH 4.7A 40.3MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 4.7 A | 7A | Shielded | 40.3mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
HCM1A1105V2-2R2-RFIXED IND 2.2UH 14.5A 4.49 MOHM Eaton - Electronics Division |
500 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 14.5 A | 19A | Shielded | 4.49mOhm Max | - | 24MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
FP0705R1-R15-RFIXED IND 150NH 43A 0.25MOHM SMD Eaton - Electronics Division |
950 |
|
数据手册 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 43 A | 30A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
EXLA1V1003-R90-RIND MOLD SHLD 0.90UH 17.A SMT Eaton - Electronics Division |
1,000 |
|
数据手册 |
EXLA1V10 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 900 nH | ±20% | 24 A | 31A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.122" (3.10mm) |
