固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

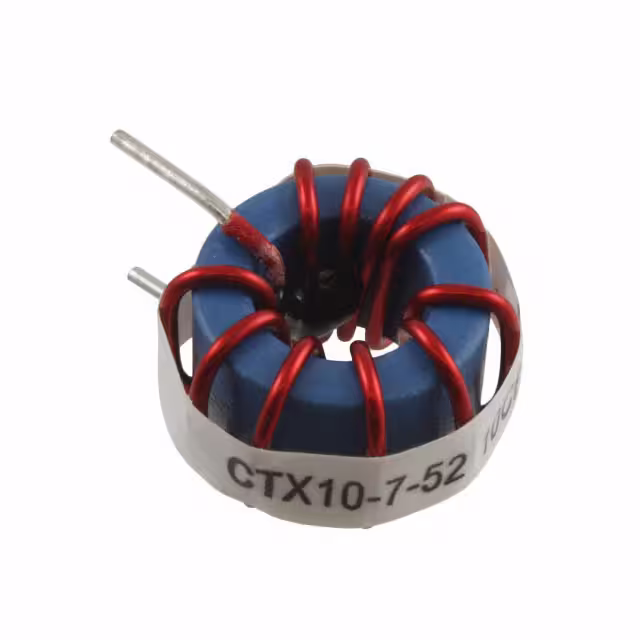

CTX10-7-52-RFIXED IND 10UH 11.4A 8 MOHM TH Eaton - Electronics Division |
1,456 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.012" Dia x 0.709" W (25.70mm x 18.00mm) | - |
|

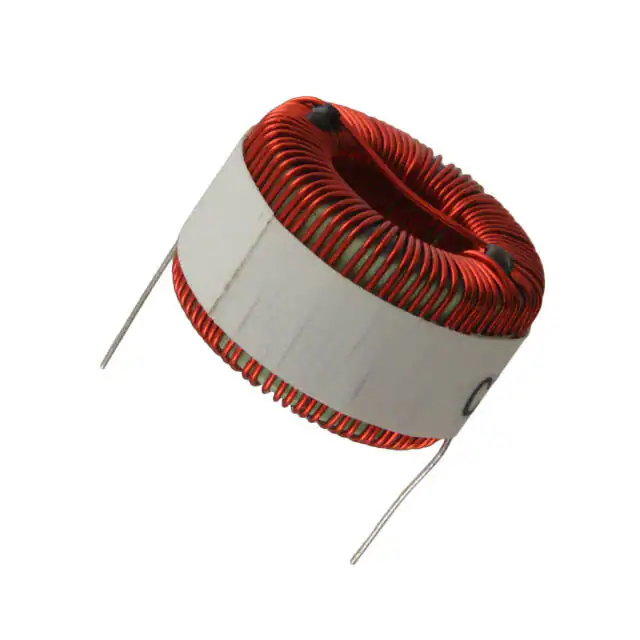

CTX500-1-52LP-RFIXED IND 500UH 1.7A 361 MOHM TH Eaton - Electronics Division |
4,464 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia (24.00mm) | 0.602" (15.30mm) |
|
CTX150-2-52LP-RFIXED IND 150UH 4.3A 71.9MOHM TH Eaton - Electronics Division |
2,749 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.205" Dia (30.60mm) | 0.441" (11.20mm) |
|
HCM1A2213V2-101-RFIXED IND 100UH 6.4A 39.5MOHM SM Eaton - Electronics Division |
1,097 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 µH | ±20% | 6.4 A | 8A | Shielded | 39.5mOhm Max | - | 1.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|

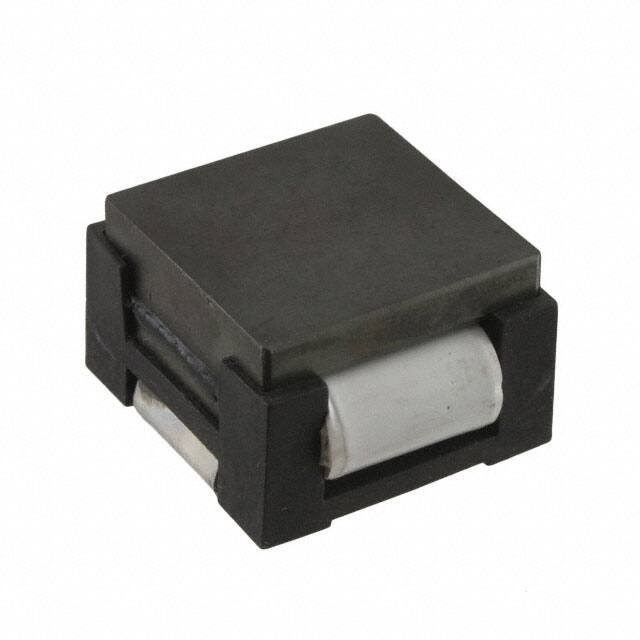

HC3-5R6-RFIXED IND 5.6UH 33.8A 2.17 MOHM Eaton - Electronics Division |
4,609 |
|
数据手册 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 33.8 A | 34.5A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
|
LD2-101-HVIND DRUM CORE 100UH 0.8A Eaton - Electronics Division |
955 |
|
数据手册 |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | - | 800mA | Unshielded | 380mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-220-HVIND DRUM CORE 22UH 2.0A Eaton - Electronics Division |
1,000 |
|
数据手册 |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | - | 2A | Unshielded | 100mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-470-HVIND DRUM CORE 47UH 1.2A Eaton - Electronics Division |
1,000 |
|
数据手册 |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | - | 1.2A | Unshielded | 200mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-221-HVIND DRUM CORE 220UH 0.5A Eaton - Electronics Division |
970 |
|
数据手册 |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | - | 500mA | Unshielded | 750mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
|
LD2-122-HVIND DRUM CORE 1200UH 0.33A Eaton - Electronics Division |
984 |
|
数据手册 |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 mH | ±20% | 400 mA | 330mA | Unshielded | 4.5Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
