固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR1050-R80-RFIXED IND 800NH 9.7A 4 MOHM SMD Eaton - Electronics Division |
497 |
|
数据手册 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 nH | ±30% | 9.7 A | 13.5A | Shielded | 4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

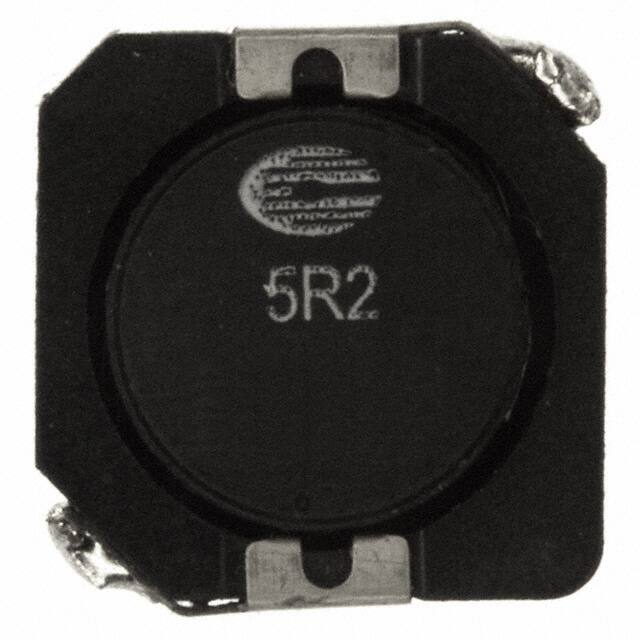

DR1030-5R2-RFIXED IND 5.2UH 3.7A 27.5MOHM SM Eaton - Electronics Division |
1,816 |
|
数据手册 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.2 µH | ±30% | 3.7 A | 4.75A | Shielded | 27.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
EXLA1V0605-4R7-RIND MOLDED SHLD 4.7UH 8.5A Eaton - Electronics Division |
989 |
|
数据手册 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 8.5 A | 8.4A | Shielded | 18.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
|
EXLA1V0605-R82-RIND MOLDED SHLD 0.82UH 21.0A Eaton - Electronics Division |
970 |
|
数据手册 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 820 nH | ±20% | 21 A | 20A | Shielded | 4.18mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
HCM0503-R75-RFIXED IND 750NH 11.3A 9.35 MOHM Eaton - Electronics Division |
103 |
|
数据手册 |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 750 nH | ±20% | 11.3 A | 9.7A | Shielded | 9.35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
EXLA1V0705-4R7-RIND MOLDED SHLD 4.7UH 8.5A Eaton - Electronics Division |
995 |
|
数据手册 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 11 A | 13A | Shielded | 15.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
EXL1V0603-2R2-RFIXED IND 2.2UH 10A 12.2MOHM SMD Eaton - Electronics Division |
3,212 |
|
数据手册 |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 10 A | 11A | Shielded | 12.2mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
DR1050-1R5-RFIXED IND 1.5UH 8.6A 5 MOHM SMD Eaton - Electronics Division |
500 |
|
数据手册 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.6 A | 10.5A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

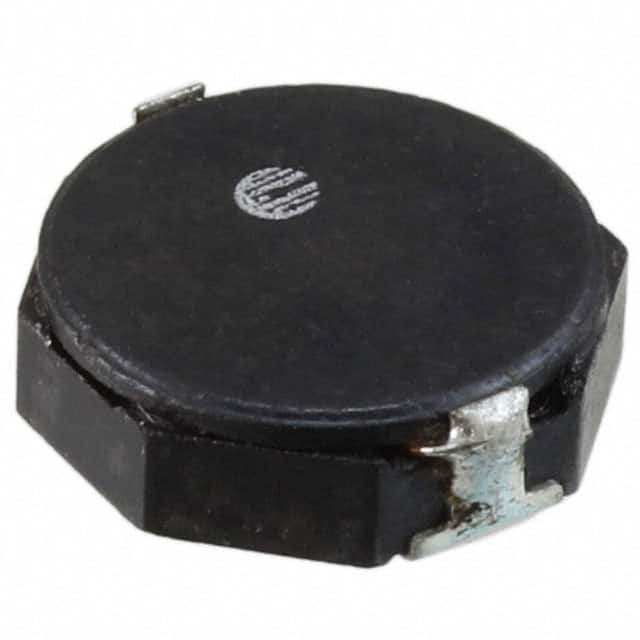

SD8328-330-RFIXED IND 33UH 1.45A 156MOHM SMD Eaton - Electronics Division |
4,121 |
|
数据手册 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.45 A | 1.4A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
|
EXLA1V0605-1R2-RIND MOLDED SHLD 1.2UH 18.0A Eaton - Electronics Division |
800 |
|
数据手册 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 18 A | 16A | Shielded | 5.83mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
