固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

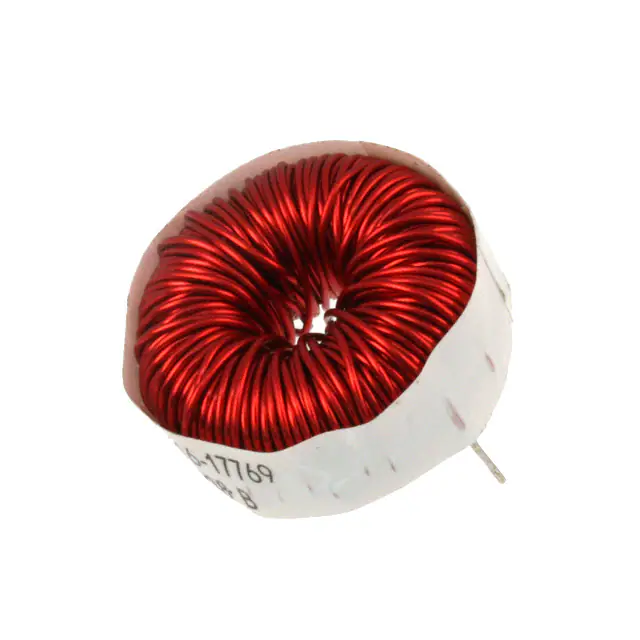

CTX16-17769-RFIXED IND 340UH 5.3A 35 MOHM TH Eaton - Electronics Division |
2,327 |
|
数据手册 |
PFC | Radial, Horizontal, 4 Leads (Open) | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 340 µH | - | 5.3 A | - | Unshielded | 35mOhm Max | - | - | - | -20°C ~ 105°C | 20 kHz | - | Through Hole | - | 1.575" Dia (40.00mm) | 0.780" (19.80mm) |
|

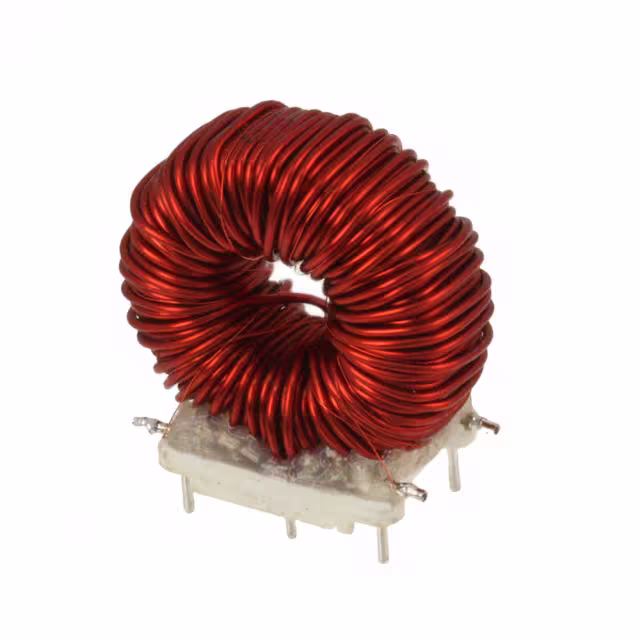

CTX22-16885FIXED IND 200UH 7A 164 MOHM TH Eaton - Electronics Division |
3,798 |
|
数据手册 |
PFC | Radial, Vertical, 6 Leads (Open) | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 200 µH | - | 7 A | - | Unshielded | 164mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.866" W (35.40mm x 22.00mm) | 1.850" (47.00mm) |
|
CTX10-16-52-RFIXED IND 10UH 27.3A 3.2 MOHM TH Eaton - Electronics Division |
2,008 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 27.3 A | 29.3A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.980" Dia x 0.945" W (50.30mm x 24.00mm) | - |
|
MCLA1005V2-1R0-RFIXED IND 1NH 400MA 100 MOHM SMD Eaton - Electronics Division |
1,000 |
|
数据手册 |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 nH | ±0.3nH | 400 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCLA1608V2-820-RFIXED IND 82NH 300MA 1 OHM SMD Eaton - Electronics Division |
990 |
|
数据手册 |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 82 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 800MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCLA1608V2-150-RFIXED IND 15NH 300MA 500MOHM SMD Eaton - Electronics Division |
930 |
|
数据手册 |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 15 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 12 @ 100MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCLA1608V2-1R8-RFIXED IND 1.8NH 500MA 100MOHM SM Eaton - Electronics Division |
625 |
|
数据手册 |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.8 nH | ±0.3nH | 500 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCLA1608V1-2R7-RFIXED IND 2.7UH 15MA 900MOHM SMD Eaton - Electronics Division |
440 |
|
数据手册 |
MCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.7 µH | ±10% | 15 mA | - | Unshielded | 900mOhm Max | 25 @ 10MHz | 45MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
HCM0503V2-4R7-RND MP 4.7uH 6.0A molded Eaton - Electronics Division |
800 |
|
数据手册 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | - | 4.1 A | 6A | Unshielded | 47mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
WCLA1608V1-330-RFIXED IND 33NH 600MA 220MOHM SMD Eaton - Electronics Division |
1,000 |
|
数据手册 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 36 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
