固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

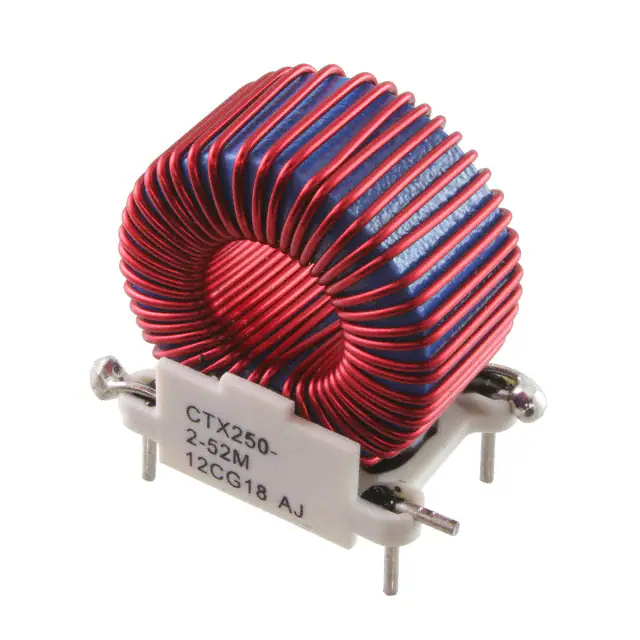

CTX250-2-52M-RFIXED IND 250UH 4.2A 83.3MOHM TH Eaton - Electronics Division |
2,428 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.315" (33.40mm) |
|
HCM1A2213V2-R47-RFIXED IND 470NH 66A 0.5 MOHM SMD Eaton - Electronics Division |
1,866 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 66 A | 100A | Shielded | 0.5mOhm Max | - | 52MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
CTX50-7-52LP-RFIXED IND 50UH 10.5A 16.3MOHM TH Eaton - Electronics Division |
1,217 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.535" Dia (39.00mm) | 0.661" (16.80mm) |
|
CTX20-10-52LP-RFIXED IND 20UH 16A 7 MOHM TH Eaton - Electronics Division |
4,579 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 16 A | 16A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.594" Dia (40.50mm) | 0.709" (18.00mm) |
|
HC3-4R7-RFIXED IND 4.7UH 33.8A 2.17 MOHM Eaton - Electronics Division |
1,800 |
|
数据手册 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 33.8 A | 38A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|

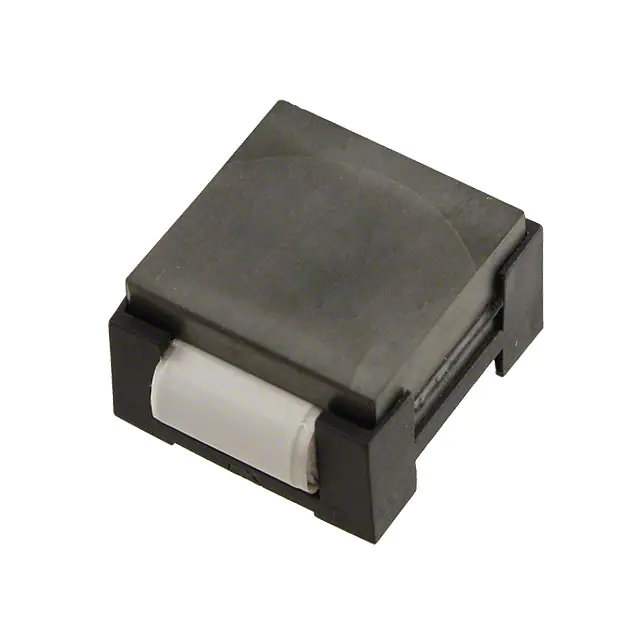

HC3-6R0-RFIXED IND 6UH 33.8A 2.17MOHM SMD Eaton - Electronics Division |
3,435 |
|
数据手册 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 33.8 A | 30A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|

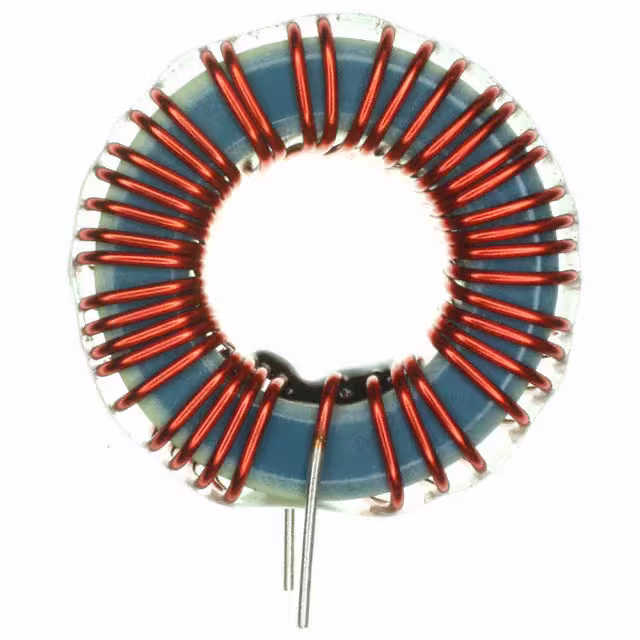

CTX150-5-52-RFIXED IND 150UH 7.7A 40.1MOHM TH Eaton - Electronics Division |
1,680 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.827" Dia x 0.780" W (46.40mm x 19.80mm) | - |
|
|
CTX150-5-52LP-RFIXED IND 150UH 7.7A 40.1MOHM TH Eaton - Electronics Division |
3,691 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.827" Dia (46.40mm) | 0.780" (19.80mm) |
|

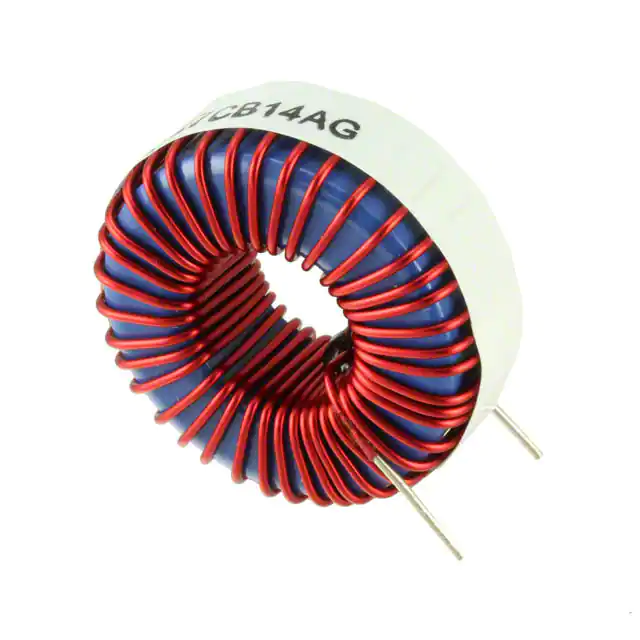

CTX250-5-52-RFIXED IND 250UH 9.2A 40 MOHM TH Eaton - Electronics Division |
1,854 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 9.2 A | 8.1A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.114" Dia x 0.957" W (53.70mm x 24.30mm) | - |
|
MCLA1005V2-100-RFIXED IND 10NH 300MA 400MOHM SMD Eaton - Electronics Division |
1,000 |
|
数据手册 |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
