固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM0503-1R0-RFIXED IND 1UH 10.1A 11.44MOHM SM Eaton - Electronics Division |
718 |
|
数据手册 |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 10.1 A | 8.5A | Shielded | 11.44mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

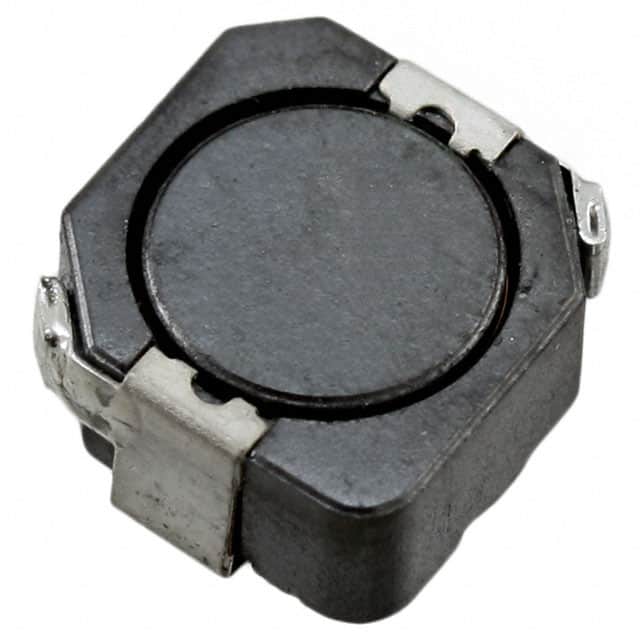

DR1050-102-RFIXED IND 1MH 430MA 1.95 OHM SMD Eaton - Electronics Division |
1,319 |
|
数据手册 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±30% | 430 mA | 480mA | Shielded | 1.95Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
DR1040-680-RFIXED IND 68UH 1.42A 183MOHM SMD Eaton - Electronics Division |
928 |
|
数据手册 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.42 A | 1.65A | Shielded | 183mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

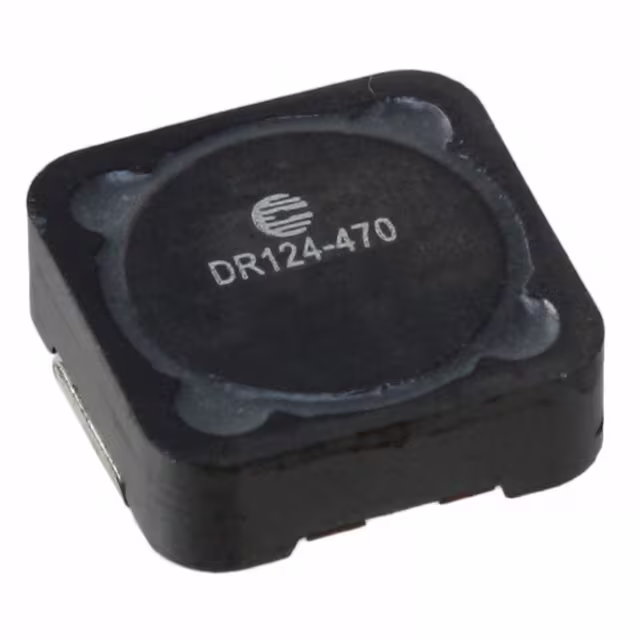

DR124-470-RFIXED IND 47UH 2.2A 149.6MOHM SM Eaton - Electronics Division |
750 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.2 A | 2.63A | Shielded | 149.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
EXL1V0707-4R7-RFIXED IND 4.7UH 13.6A 13.5 MOHM Eaton - Electronics Division |
4,828 |
|
数据手册 |
EXL1V0707 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 13.6 A | 14A | Shielded | 13.5mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
|
EXL1V0707-6R8-RFIXED IND 6.8UH 9.5A 19.6MOHM SM Eaton - Electronics Division |
2,773 |
|
数据手册 |
EXL1V0707 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 9.5 A | 11A | Shielded | 19.6mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|

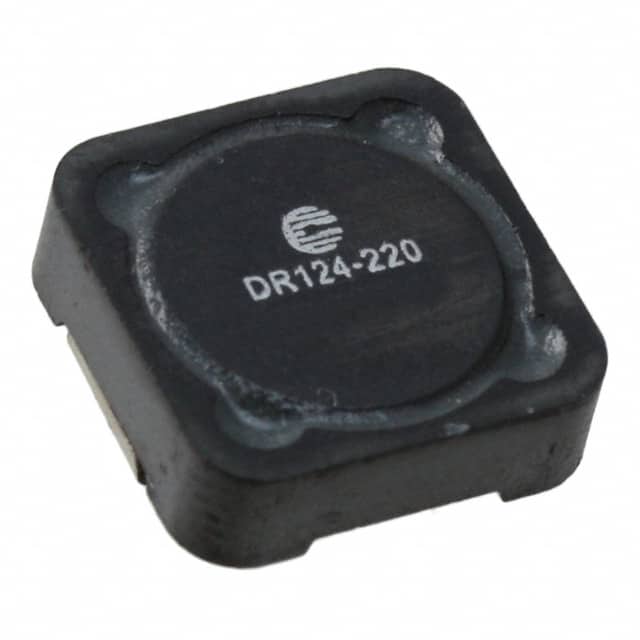

DR124-220-RFIXED IND 22UH 3.2A 64.8MOHM SMD Eaton - Electronics Division |
157 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.2 A | 3.83A | Shielded | 64.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
EXL1V0606-5R6-RFIXED IND 5.6UH 10A 15.8MOHM SMD Eaton - Electronics Division |
750 |
|
数据手册 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 10 A | 9A | Shielded | 15.8mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
|
EXL1V0606-100-RFIXED IND 10UH 7A 29.3 MOHM SMD Eaton - Electronics Division |
1,588 |
|
数据手册 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 7 A | 6.8A | Shielded | 29.3mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
EXLA1V0606-100-RIND MOLDED SHLD 10.0UH 7.0A Eaton - Electronics Division |
756 |
|
数据手册 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 7 A | 6.8A | Shielded | 29.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
