固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA127-331-RFIXED IND 330UH 1.011A 612 MOHM Eaton - Electronics Division |
2,446 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.011 A | 1.93A | Shielded | 612mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA124-331-RFIXED IND 330UH 690MA 892MOHM SM Eaton - Electronics Division |
2,697 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 690 mA | 1.092A | Shielded | 892mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

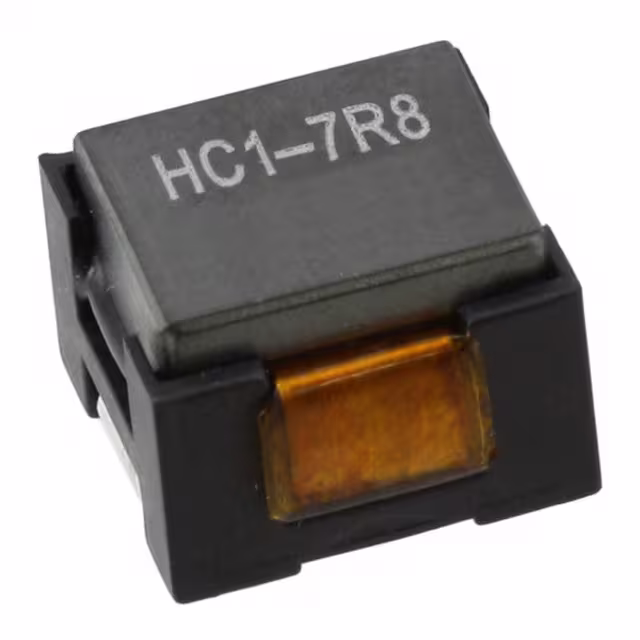

HC1-7R8-RFIXED IND 7.8UH 12.79A 5.7 MOHM Eaton - Electronics Division |
2,957 |
|
数据手册 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±15% | 12.79 A | 6.7A | Unshielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|

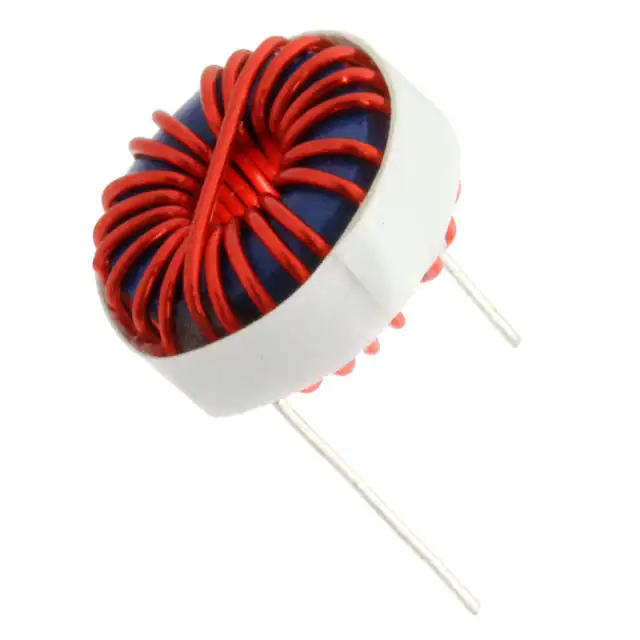

CTX20-2-52LP-RFIXED IND 20UH 3.2A 39.2 MOHM TH Eaton - Electronics Division |
4,192 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 3.2 A | 3.2A | Unshielded | 39.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.295" (7.50mm) |
|
HC8-220-RFIXED IND 22UH 3.4A 99.5MOHM SMD Eaton - Electronics Division |
2,569 |
|
数据手册 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 3.4 A | 6.2A | Unshielded | 99.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|

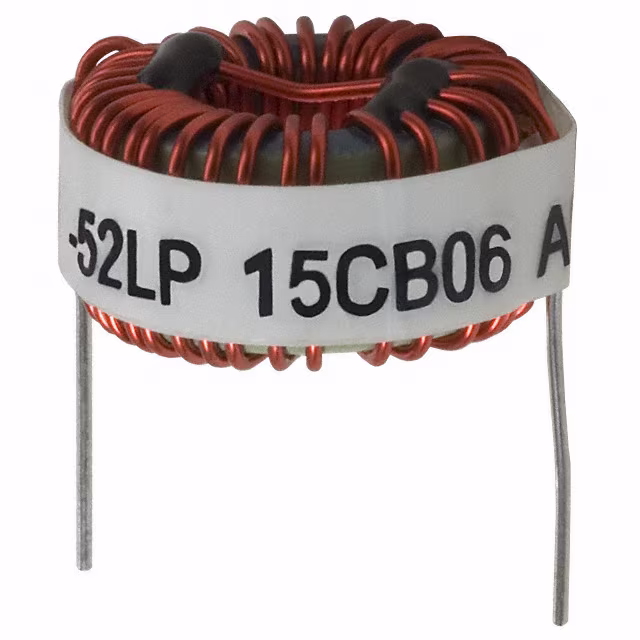

CTX50-1-52LP-RFIXED IND 50UH 2.6A 71.5 MOHM TH Eaton - Electronics Division |
2,543 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 2.6 A | 2.7A | Unshielded | 71.5mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.638" Dia (16.20mm) | 0.354" (9.00mm) |
|

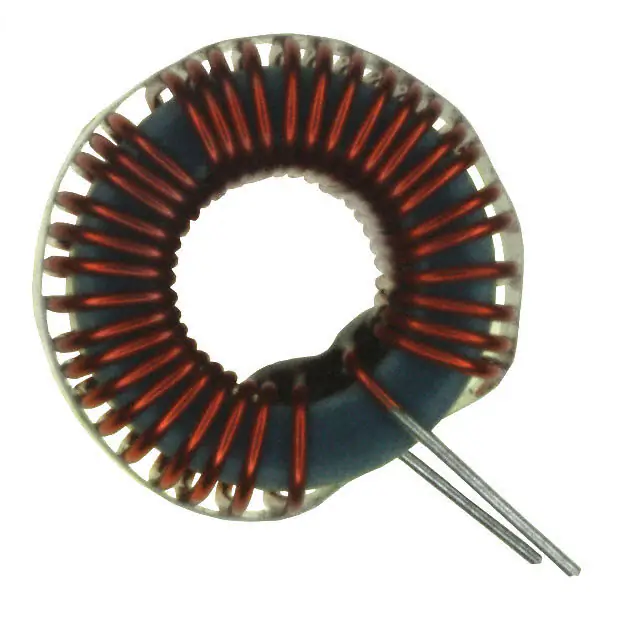

CTX100-2-52-RFIXED IND 100UH 4.4A 53.4MOHM TH Eaton - Electronics Division |
3,776 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 4.4 A | 4.3A | Unshielded | 53.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia x 0.654" W (24.00mm x 16.60mm) | - |
|
CTX50-5-52-RFIXED IND 50UH 7.6A 24.8 MOHM TH Eaton - Electronics Division |
3,693 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.272" Dia x 0.744" W (32.30mm x 18.90mm) | - |
|

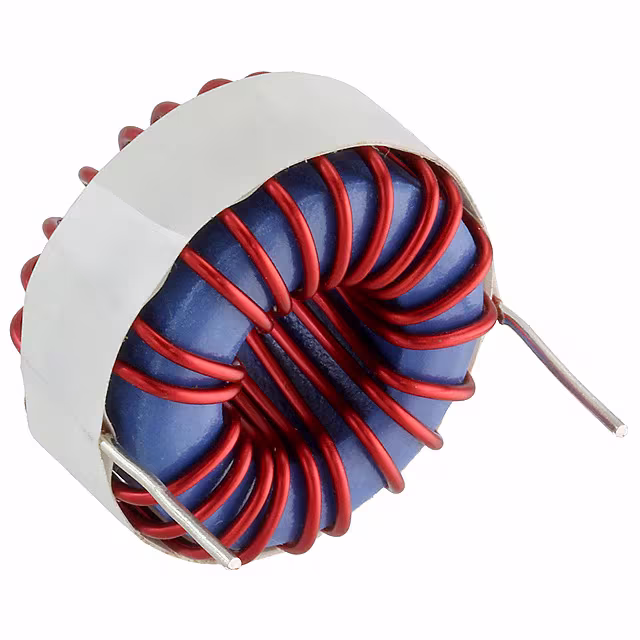

CTX50-5-52LP-RFIXED IND 50UH 7.6A 24.8 MOHM TH Eaton - Electronics Division |
4,209 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.272" Dia (32.30mm) | 0.744" (18.90mm) |
|

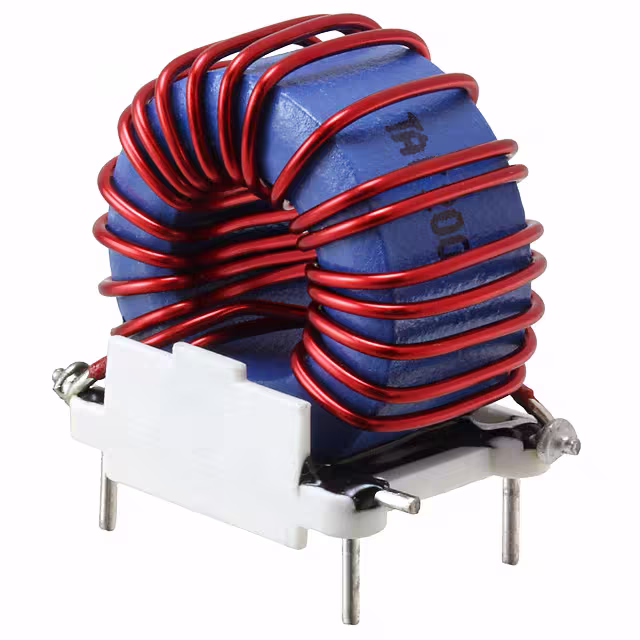

CTX50-5-52M-RFIXED IND 50UH 7.6A 24.8 MOHM TH Eaton - Electronics Division |
4,823 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.327" (33.70mm) |
