固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSPI2D18F-1R2MSMD SHIELDED POWER INDUCTOR |
4,231 |
|
数据手册 |
CTSPI2D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 1.76 A | 940mA | Shielded | 41mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.071" (1.80mm) |
|
|
CTSPI2D18F-100MSMD SHIELDED POWER INDUCTOR |
2,538 |
|
数据手册 |
CTSPI2D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 880 mA | 360mA | Shielded | 190mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.071" (1.80mm) |
|
CTSPI2D15F-6R8MSMD SHIELDED POWER INDUCTOR |
3,001 |
|
数据手册 |
CTSPI2D15F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1 A | 420mA | Shielded | 166mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|

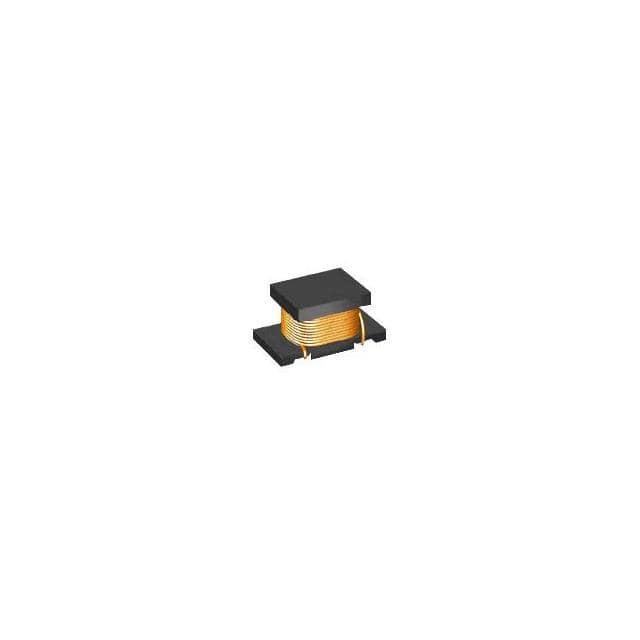

CTLQ1210NF-221J220UH 65MA SMD WW INDUCTOR |
2,202 |
|
数据手册 |
CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±5% | 65 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 5.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210NF-1R0M1.0UH 445MA SMD WW INDUCTOR |
2,083 |
|
数据手册 |
CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 445 mA | - | Unshielded | 500mOhm Max | 20 @ 1MHz | 100MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

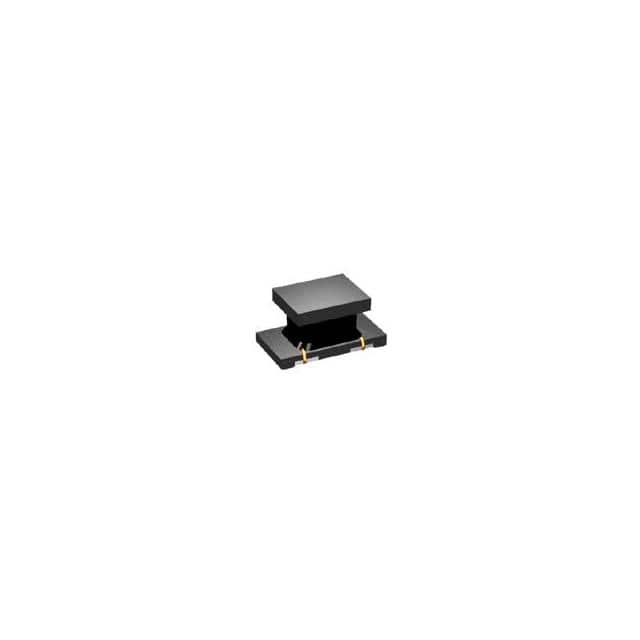

CTLQ1206NF-R68K0.68UH 190MA SMD WW INDUCTOR |
3,784 |
|
数据手册 |
CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±10% | 190 mA | - | Unshielded | 930mOhm Max | 30 @ 25MHz | 160MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
CTLQ1206NF-8R2J8.2UH 105MA SMD WW INDUCTOR |
3,969 |
|
数据手册 |
CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±5% | 105 mA | - | Unshielded | 2.86Ohm Max | 35 @ 8MHz | 23MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
CTLQ1206NF-680J68UH 50MA SMD WW INDUCTOR |
4,039 |
|
数据手册 |
CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±5% | 50 mA | - | Unshielded | 12.87Ohm Max | 40 @ 2.5MHz | 8.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
CTMMP1304AF-R68MSMD Shielded Power Inductor |
2,388 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 6.1 A | - | Shielded | 34mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-R47MSMD Shielded Power Inductor |
1,937 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 7.2 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-2R2MSMD Shielded Power Inductor |
1,523 |
|
数据手册 |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 3.4 A | - | Shielded | 98mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-6R8MSMD Shielded Power Inductor |
4,802 |
|
数据手册 |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 2 A | - | Shielded | 360mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-4R7MSMD Shielded Power Inductor |
2,445 |
|
数据手册 |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 2.8 A | - | Shielded | 266mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-3R3MSMD Shielded Power Inductor |
4,818 |
|
数据手册 |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 3.1 A | - | Shielded | 191mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-R82MSMD Shielded Power Inductor |
3,754 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.82 µH | ±20% | 5.8 A | - | Shielded | 41mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-1R0MSMD Shielded Power Inductor |
3,316 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 5.5 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-R56MSMD Shielded Power Inductor |
4,318 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.56 µH | ±20% | 6.6 A | - | Shielded | 31mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-5R6MSMD Shielded Power Inductor |
2,644 |
|
数据手册 |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 2.2 A | - | Shielded | 310mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-1R5MSMD Shielded Power Inductor |
3,267 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1.5 µH | ±20% | 4 A | - | Shielded | 71mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-8R2MSMD Shielded Power Inductor |
3,404 |
|
数据手册 |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 1.7 A | - | Shielded | 420mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
