固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP2712F-2R2MSMD Shielded Power Inductor |
2,574 |
|
数据手册 |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 12 A | - | Shielded | 20mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
CTMMP2712F-8R2MSMD Shielded Power Inductor |
1,365 |
|
数据手册 |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 6 A | - | Shielded | 68mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
CTMMP2712F-6R8MSMD Shielded Power Inductor |
3,859 |
|
数据手册 |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 7 A | - | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
CTMMP2712F-220MSMD Shielded Power Inductor |
3,898 |
|
数据手册 |
- | - | Bulk | Active | - | - | 22 µH | ±20% | 3 A | - | Shielded | 230mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
SMHC2511-R15MHF-CT0.15uH, 20%, 1.9mOhm, 52Amp Max. |
2,088 |
|
数据手册 |
SMHC2511 | Nonstandard | Strip | Active | Molded | Metal | 150 nH | ±20% | 26 A | 52A | Unshielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SMHC2511-R47MHF-CT0.47uH, 20%, 4mOhm, 26Amp Max. |
4,422 |
|
数据手册 |
SMHC2511 | Nonstandard | Strip | Active | Molded | Metal | 470 nH | ±20% | 17.5 A | 26A | Unshielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SMHC2511-R33MHF-CT0.33uH, 20%, 3.5mOhm, 30Amp Max. |
1,937 |
|
数据手册 |
SMHC2511 | Nonstandard | Strip | Active | Molded | Metal | 330 nH | ±20% | 20 A | 30A | Unshielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

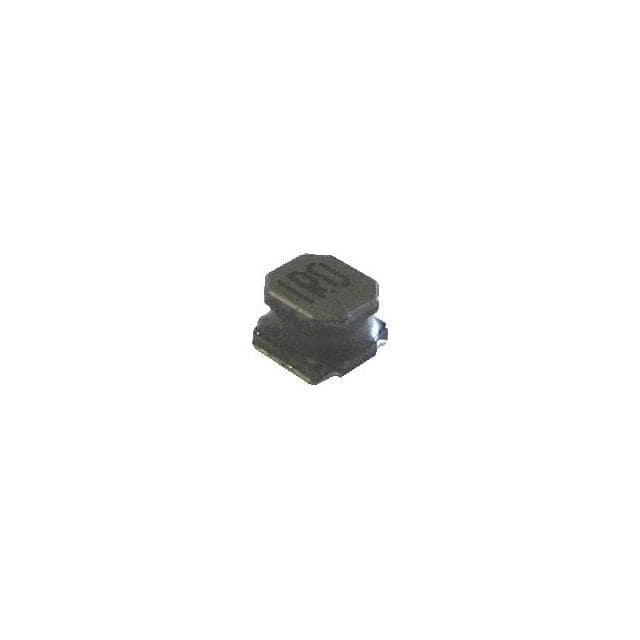

CTLVC6045F-221M220UH SMD POWER INDUCTOR |
3,840 |
|
数据手册 |
CTLVC6045F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 340 mA | 730mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|

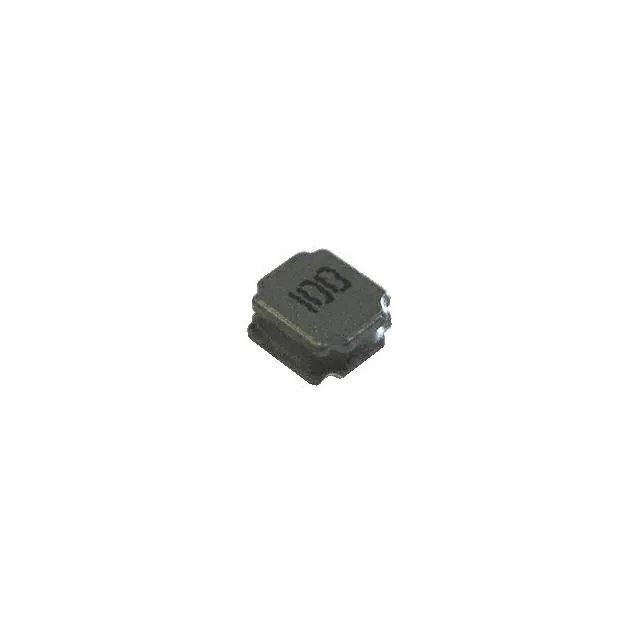

CTLVC6020F-1R5M1.5UH SMD POWER INDUCTOR |
1,792 |
|
数据手册 |
CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 3.6 A | 5A | Shielded | 26mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTLVC6020F-6R8M6.8UH SMD POWER INDUCTOR |
2,152 |
|
数据手册 |
CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.8 A | 2.2A | Shielded | 85mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTLVC6020F-2R2M2.2UH SMD POWER INDUCTOR |
4,382 |
|
数据手册 |
CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.2 A | 4.2A | Shielded | 34mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTLVC6020F-3R3M3.3UH SMD POWER INDUCTOR |
2,454 |
|
数据手册 |
CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.7 A | 3.2A | Shielded | 40mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTLVC6020F-100M10UH SMD POWER INDUCTOR |
1,064 |
|
数据手册 |
CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.6 A | 2A | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTLVC6020F-4R7M4.7UH SMD POWER INDUCTOR |
2,252 |
|
数据手册 |
CTLVC6020F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.2 A | 2.5A | Shielded | 58mOhm | - | - | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
CTMMP2709F-R56MSMD Shielded Power Inductor |
4,642 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.56 µH | ±20% | 19 A | - | Shielded | 7.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.157" (4.00mm) |
|
|
CTMMP2709F-1R0MSMD Shielded Power Inductor |
3,811 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 16 A | - | Shielded | 14.2mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.157" (4.00mm) |
|
CT494LYF-390KRADIAL LEADED FIXED INDUCTOR |
2,126 |
|
数据手册 |
ct494lyf | - | Bulk | Active | Wirewound | - | 39 µH | ±10% | - | - | - | 91mOhm | - | - | - | -30°C ~ 105°C | - | - | Through Hole | - | - | - |
|
|
CTMMP2012CF-3R3MSMD Shielded Power Inductor |
2,846 |
|
数据手册 |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 8 A | - | Shielded | 32mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|

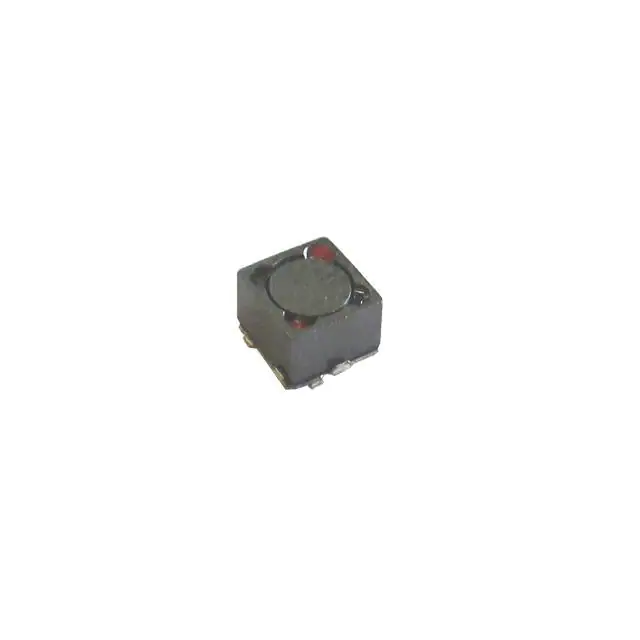

CTSPI2D10F-1R2MSMD SHIELDED POWER INDUCTOR |
2,164 |
|
数据手册 |
CTSPI2D10F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 1.5 A | 1A | Shielded | 78mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.041" (1.05mm) |
|
|
CTSPI2D10F-100MSMD SHIELDED POWER INDUCTOR |
2,100 |
|
数据手册 |
CTSPI2D10F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 600 mA | 420mA | Shielded | 400mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.041" (1.05mm) |
