固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT1008PSF-182MSMD WIRE-WOUND CHIP INDUCTOR |
4,728 |
|
数据手册 |
ct1008psf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±20% | - | - | - | 90mOhm | - | 225MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT1008PSF-223MSMD WIRE-WOUND CHIP INDUCTOR |
1,606 |
|
数据手册 |
ct1008psf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | - | - | - | 1.4Ohm | - | 30MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT1008PSF-473KSMD WIRE-WOUND CHIP INDUCTOR |
4,848 |
|
数据手册 |
ct1008psf | - | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | - | - | - | 2.2Ohm | - | 15MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CTLV5020SF-1R5M1.5UH SMD POWER INDUCTOR |
4,304 |
|
数据手册 |
CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 3.15 A | 4.41A | Shielded | 23mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
CTLV5020SF-4R7M4.7UH SMD POWER INDUCTOR |
4,656 |
|
数据手册 |
CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.98 A | 2.43A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|

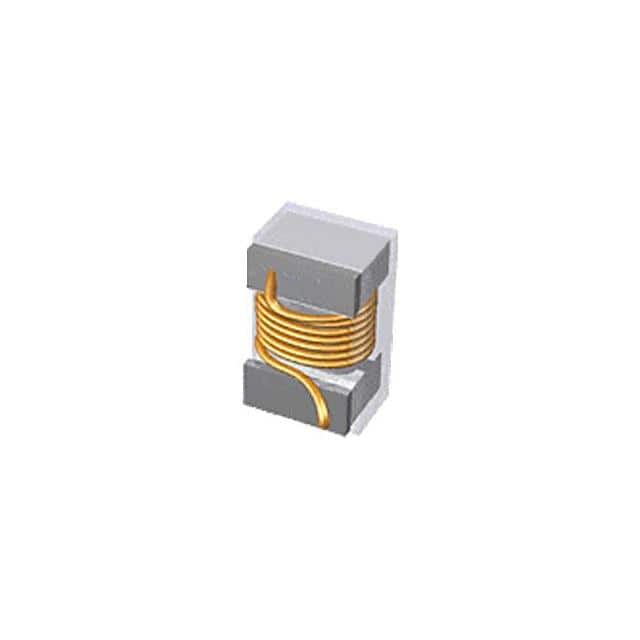

CT0805LSF-273JSMD FER CORE WIRE-WOUND INDUCTOR |
4,128 |
|
数据手册 |
ct0805lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±5% | - | - | - | 7.8Ohm | - | 2.5MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0805LSF-123JSMD FER CORE WIRE-WOUND INDUCTOR |
2,422 |
|
数据手册 |
ct0805lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±5% | - | - | - | 3.2Ohm | - | 2.5MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

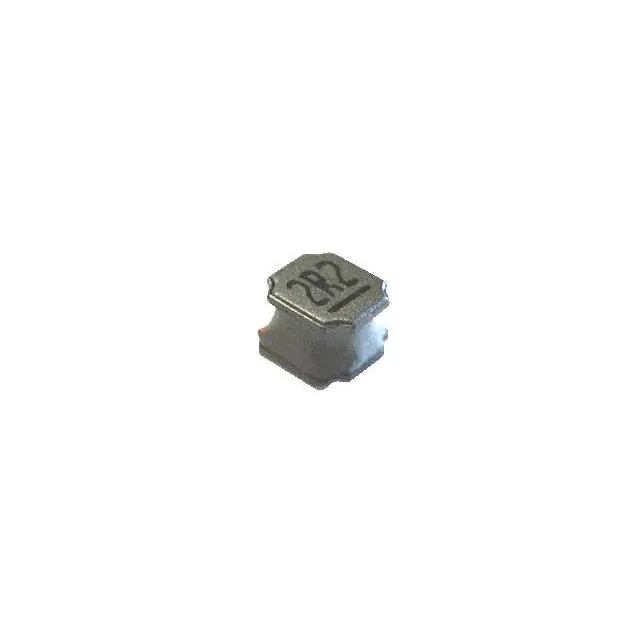

CTLV5040SF-2R2M2.2UH SMD POWER INDUCTOR |
4,264 |
|
数据手册 |
CTLV5040SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 4.05 A | 6.12A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
CTLV5040SF-100M10UH SMD POWER INDUCTOR |
2,118 |
|
数据手册 |
CTLV5040SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.7 A | 2.7A | Shielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
CTLV5040SF-1R5M1.5UH SMD POWER INDUCTOR |
4,799 |
|
数据手册 |
CTLV5040SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 4.86 A | 7.11A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|
|
CTLV5040SF-4R7M4.7UH SMD POWER INDUCTOR |
3,848 |
|
数据手册 |
CTLV5040SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.88 A | 3.96A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.165" (4.20mm) |
|

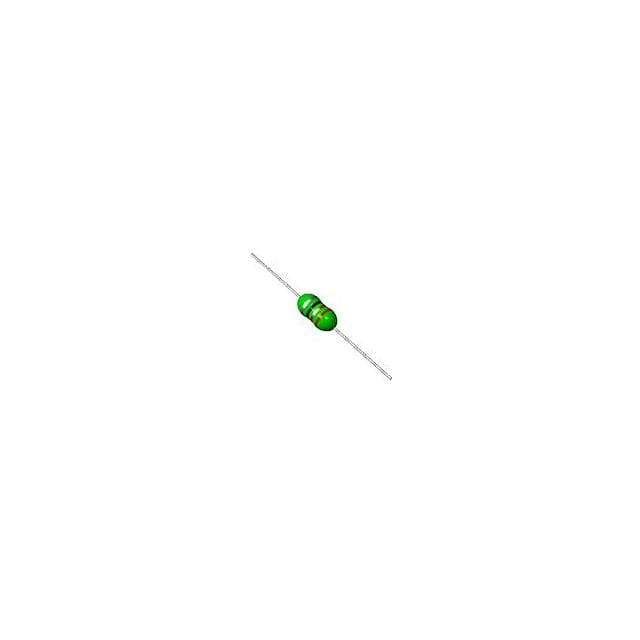

CTC4F-221K220UH AXIAL CONF COATD INDUCTOR |
4,141 |
|
数据手册 |
ctc4f | - | Tape & Reel (TR) | Active | - | - | - | ±10% | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTLV6028SF-1R5M1.5UH SMD POWER INDUCTOR |
1,999 |
|
数据手册 |
CTLV6028SF | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 4.95 A | 6.3A | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLV6028SF-2R2M2.2UH SMD POWER INDUCTOR |
1,451 |
|
数据手册 |
CTLV6028SF | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 4.5 A | 5.4A | Shielded | 20mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLV6028SF-4R7M4.7UH SMD POWER INDUCTOR |
4,260 |
|
数据手册 |
CTLV6028SF | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3.06 A | 3.6A | Shielded | 36mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLV6028SF-1R0M1.0UH SMD POWER INDUCTOR |
3,949 |
|
数据手册 |
CTLV6028SF | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.67 A | 7.11A | Shielded | 12mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTC4F-180K18UH AXIAL CONF COATD INDUCTOR |
1,962 |
|
数据手册 |
ctc4f | - | Tape & Reel (TR) | Active | - | - | 18 µH | ±10% | - | - | - | 670mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTC4F-272J2700UH AXIAL CONF COATD INDUCTOR |
4,964 |
|
数据手册 |
ctc4f | - | Tape & Reel (TR) | Active | - | - | - | ±5% | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTLV6028SF-6R8M6.8UH SMD POWER INDUCTOR |
4,568 |
|
数据手册 |
CTLV6028SF | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.7 A | 2.88A | Shielded | 48mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTMMP2712F-1R0MSMD Shielded Power Inductor |
1,769 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 17 A | - | Shielded | 10mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
