固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT0603LSF-781JSMD FER CORE WIRE-WOUND INDUCTOR |
4,556 |
|
数据手册 |
ct0603lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 780 nH | ±5% | - | - | - | 830mOhm | - | 540MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT0603LSF-821JSMD FER CORE WIRE-WOUND INDUCTOR |
1,909 |
|
数据手册 |
ct0603lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±5% | - | - | - | 690mOhm | - | 480MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CTRL5480F-1-3R9K3.9UH RADIAL FIXED INDUCTOR |
3,568 |
|
数据手册 |
CTRL5480F-1 | Radial, Vertical Cylinder | Bulk | Active | - | - | 3.9 µH | ±10% | 800 mA | 1.5A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.224" Dia (5.70mm) | 0.337" (8.57mm) |
|
|
CT0603LSF-222JSMD FER CORE WIRE-WOUND INDUCTOR |
1,424 |
|
数据手册 |
ct0603lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±5% | - | - | - | 1.2Ohm | - | 150MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTRL5480F-1-121K120UH RADIAL FIXED INDUCTOR |
3,414 |
|
数据手册 |
CTRL5480F-1 | Radial, Vertical Cylinder | Bulk | Active | - | - | 120 µH | ±10% | 190 mA | 270mA | Unshielded | 640mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.224" Dia (5.70mm) | 0.337" (8.57mm) |
|

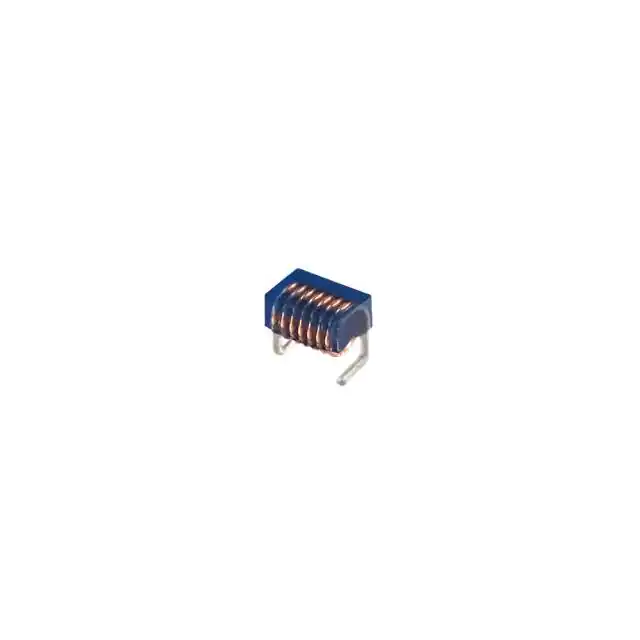

CTAC0805F-47NKSMD AIR CORE INDUCTOR |
1,327 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTAC0805F-10NKSMD AIR CORE INDUCTOR |
1,924 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 nH | ±10% | - | - | - | 5.4mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-15NKSMD AIR CORE INDUCTOR |
2,951 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 nH | ±10% | - | - | - | 7.2mOhm | - | 2.5GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-18NKSMD AIR CORE INDUCTOR |
3,984 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 nH | ±10% | - | - | - | 12.5mOhm | - | 2.5GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-27NKSMD AIR CORE INDUCTOR |
2,067 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 27 nH | ±10% | - | - | - | 14.5mOhm | - | 1.6GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-12NKSMD AIR CORE INDUCTOR |
1,385 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 nH | ±10% | - | - | - | 6.3mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-8N2KSMD AIR CORE INDUCTOR |
3,723 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | 8.2 nH | ±10% | - | - | - | 5.3mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-22NKSMD AIR CORE INDUCTOR |
1,463 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 nH | ±10% | - | - | - | 12.9mOhm | - | 2.4GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-4N7KSMD AIR CORE INDUCTOR |
3,144 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 nH | ±10% | - | - | - | 3.6mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-3N9KSMD AIR CORE INDUCTOR |
2,332 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 nH | ±10% | - | - | - | 2.6mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-6N8KSMD AIR CORE INDUCTOR |
1,228 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 nH | ±10% | - | - | - | 4.5mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-5N6KSMD AIR CORE INDUCTOR |
2,145 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | 5.6 nH | ±10% | - | - | - | 3.7Ohm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-39NKSMD AIR CORE INDUCTOR |
3,798 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTAC0805F-33NKSMD AIR CORE INDUCTOR |
3,749 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 nH | ±10% | - | - | - | 18.7Ohm | - | 1.6GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC0805F-68NKSMD AIR CORE INDUCTOR |
2,352 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
