固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMC1210SF-R68KSMD FERRITE CORE WW INDUCTOR |
4,986 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 370MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R33KSMD FERRITE CORE WW INDUCTOR |
1,961 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 520MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R82KSMD FERRITE CORE WW INDUCTOR |
1,847 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±10% | 450 mA | - | Unshielded | 650mOhm Max | 30 @ 25.2MHz | 310MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R27KSMD FERRITE CORE WW INDUCTOR |
2,354 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 525MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R18KSMD FERRITE CORE WW INDUCTOR |
1,229 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 450 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 685MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-8R2JSMD FERRITE CORE WW INDUCTOR |
2,083 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 170 mA | - | Unshielded | 2Ohm Max | 30 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R56KSMD FERRITE CORE WW INDUCTOR |
1,728 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±10% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 395MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R39KSMD FERRITE CORE WW INDUCTOR |
1,390 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 470MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R22KSMD FERRITE CORE WW INDUCTOR |
4,767 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 560MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-820JSMD FERRITE CORE WW INDUCTOR |
2,668 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 45 mA | - | Unshielded | 10Ohm Max | 30 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-5R6JSMD FERRITE CORE WW INDUCTOR |
2,037 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 200 mA | - | Unshielded | 1.6Ohm Max | 30 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-680JSMD FERRITE CORE WW INDUCTOR |
1,183 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 50 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R12KSMD FERRITE CORE WW INDUCTOR |
2,805 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 450 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 875MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

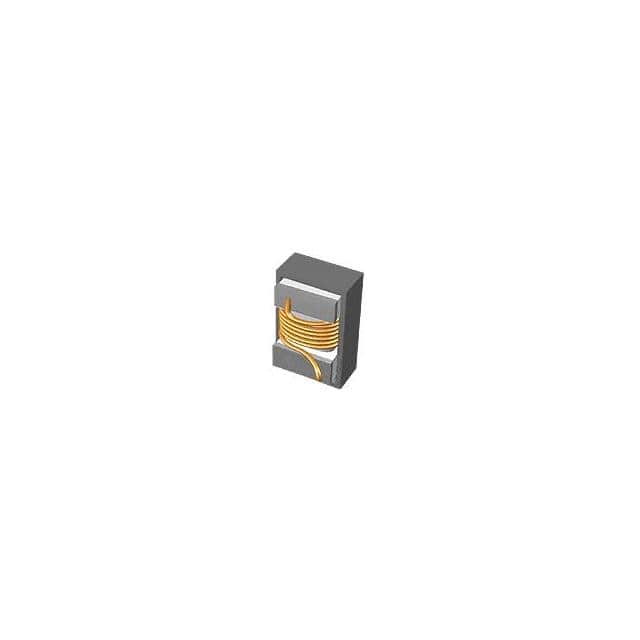

CT1210LSCF-220KSMD FER CORE WIRE-WOUND INDUCTOR |
1,421 |
|
数据手册 |
ct1210lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | - | - | - | 770mOhm | - | 16MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

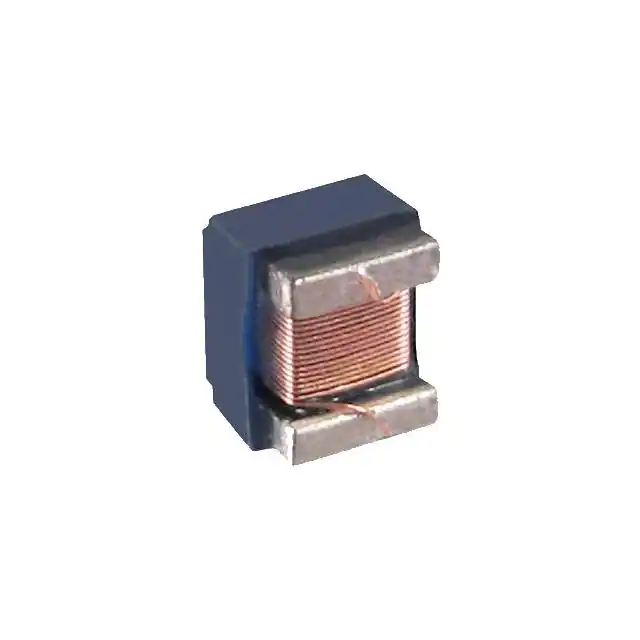

CT0402LSF-R10KSMD FER CORE WIRE-WOUND INDUCTOR |
2,217 |
|
数据手册 |
ct0402lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±10% | - | - | - | 160mOhm | - | 1.4GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1210LSCF-6R8JSMD FER CORE WIRE-WOUND INDUCTOR |
1,746 |
|
数据手册 |
ct1210lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±5% | - | - | - | 270mOhm | - | 33MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTMC1210SF-6R8JSMD FERRITE CORE WW INDUCTOR |
4,185 |
|
数据手册 |
CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 180 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
CT0805HTF-R39GSMD CER CORE WIRE-WOUND INDUCTOR |
100 |
|
数据手册 |
ct0805htf | - | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±2% | - | - | - | 1.6Ohm | - | 700MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTMLP080504CF-1R0M1.0UH SMD MULTIL POWER INDUCTOR |
2,165 |
|
数据手册 |
CTMLP080504CF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.8 A | 1.4A | Shielded | 100mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMLP080504CF-2R2M2.2UH SMD MULTIL POWER INDUCTOR |
3,145 |
|
数据手册 |
CTMLP080504CF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.6 A | 500mA | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
