固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTAC0805F-56NKSMD AIR CORE INDUCTOR |
3,514 |
|
数据手册 |
ctac0805f | - | Tape & Reel (TR) | Active | Wirewound | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CT1812SMSF-56NJSMD AIR CORE INDUCTOR |
2,182 |
|
数据手册 |
ct1812smsf | - | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±5% | - | - | - | 6.3mOhm | - | 1.5MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT1812SMSF-22NKSMD AIR CORE INDUCTOR |
4,913 |
|
数据手册 |
ct1812smsf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 nH | ±10% | - | - | - | 4.7mOhm | - | 3.2MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

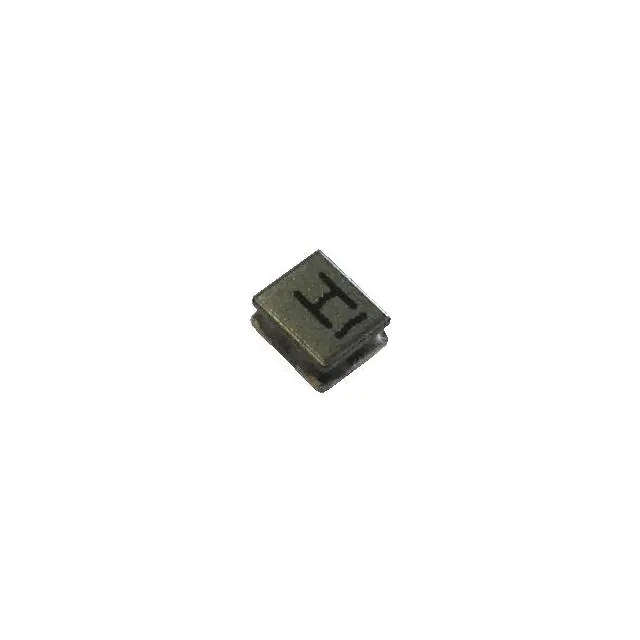

CTLV2510SF-220M22UH SMD POWER INDUCTOR |
2,039 |
|
数据手册 |
CTLV2510SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 360 mA | 390mA | Shielded | 1.2Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.040" (1.02mm) |
|
CTLVH3012F-100MSMD SHIELDED POWER INDUCTOR |
2,764 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.15 A | 1.7A | Shielded | 370mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CTLVH3012F-3R3MSMD SHIELDED POWER INDUCTOR |
2,702 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 1.9 A | 3A | Shielded | 138mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CTLVH3012F-4R7MSMD SHIELDED POWER INDUCTOR |
4,220 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 2.5A | Shielded | 195mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CTLVH3012F-1R0MSMD SHIELDED POWER INDUCTOR |
3,994 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 3 A | 5.4A | Shielded | 54mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CTLVH3012F-220MSMD SHIELDED POWER INDUCTOR |
2,311 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 700 mA | 1.2A | Shielded | 795mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CTLVH3012F-6R8MSMD SHIELDED POWER INDUCTOR |
2,575 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 1.3 A | 2.1A | Shielded | 265mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CTLV2510SF-1R5M1.5UH SMD POWER INDUCTOR |
2,817 |
|
数据手册 |
CTLV2510SF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 1.53 A | 1.66A | Shielded | 95mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.040" (1.02mm) |
|
|
CT1812SMSF-33NKSMD AIR CORE INDUCTOR |
2,713 |
|
数据手册 |
ct1812smsf | - | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±10% | - | - | - | 5.7mOhm | - | 2.5MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTLVH3012F-2R2MSMD SHIELDED POWER INDUCTOR |
3,306 |
|
数据手册 |
CTLVH3012F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 2.3 A | 3.7A | Shielded | 95mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
|
CT1812SMSF-27NKSMD AIR CORE INDUCTOR |
4,212 |
|
数据手册 |
ct1812smsf | - | Tape & Reel (TR) | Active | Wirewound | - | 27 nH | ±10% | - | - | - | 4.4mOhm | - | 2.7MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
SM2011A-1R0MHFMOLDED INDUCTOR 1UH 11.2M 11A |
4,657 |
|
数据手册 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 1 µH | ±20% | 8.8 A | 8A | Unshielded | 12.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SM2011A-R20MHFMOLDED INDUCTOR 0.2UH 3.3M 26A |
1,159 |
|
数据手册 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 200 nH | ±20% | 14 A | 21A | Unshielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SM2011A-2R2MHFMOLDED INDUCTOR 2.2UH 24.5M 7.5 |
2,824 |
|
数据手册 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 2.2 µH | ±20% | 7 A | 5.2A | Unshielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SM2011A-R47MHFMOLDED INDUCTOR0.47UH7.85M17.5A |
1,643 |
|
数据手册 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 470 nH | ±20% | 11 A | 12A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SM2011A-R68MHFMOLDED INDUCTOR 0.68UH9.8M13.5A |
2,743 |
|
数据手册 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 680 nH | ±20% | 9 A | 9A | Unshielded | 11.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SM2011A-1R5MHFMOLDED INDUCTOR1.5UH13.75M10.5A |
3,789 |
|
数据手册 |
SM2011A | Nonstandard | Bulk | Active | Molded | - | 1.5 µH | ±20% | 8.2 A | 7.5A | Unshielded | 15.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
