固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDO3340PF-104100UH SMD POWER INDUCTOR Central Technologies |
238 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.2 A | 2.5A | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3340PF-68368UH SMD POWER INDUCTOR Central Technologies |
1,794 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.2 A | 3A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|

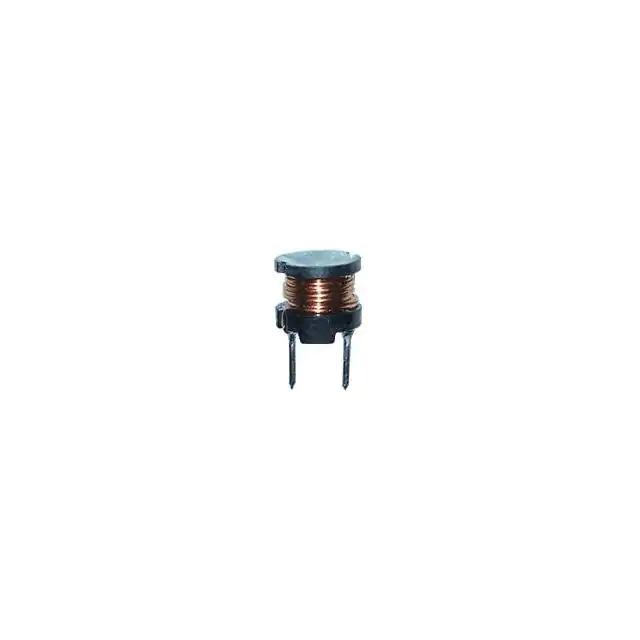

CTCH875F-100M10UH RADIAL LEAD FIX INDUCTOR Central Technologies |
4,014 |
|
数据手册 |
CTCH875F | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±20% | - | 2.9A | Unshielded | 50mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
CTRFB1010F-101K100UH RADIAL FIXED INDUCTOR Central Technologies |
4,441 |
|
数据手册 |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 2.2 A | 1.9A | Unshielded | 150mOhm Max | - | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
CTRFB0810F-101K100UH RADIAL FIXED INDUCTOR Central Technologies |
2,535 |
|
数据手册 |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 1.8 A | 1.4A | Unshielded | 200mOhm Max | - | 5.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
|
CTRFB0810F-332K3300UH RADIAL FIXED INDUCTOR Central Technologies |
3,901 |
|
数据手册 |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 3.3 mH | ±10% | 330 mA | 240mA | Unshielded | 7.6Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
CTCH895F-102K1000UH RADIAL LEAD FIX INDUCTOR Central Technologies |
2,928 |
|
数据手册 |
CTCH895F | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | - | 300mA | Unshielded | 1.84Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
CTH6EF-220K22UH MINI AXL P-LINE INDUCTOR Central Technologies |
1,318 |
|
数据手册 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 1 A | 640mA | Unshielded | 190mOhm Max | - | 8.4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
CTM2F-6R8K6.8UH AXIAL MOLDED INDUCTOR Central Technologies |
2,164 |
|
数据手册 |
CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
CTM2F-241J240UH AXIAL MOLDED INDUCTOR Central Technologies |
2,332 |
|
数据手册 |
CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 240 µH | ±5% | 115 mA | - | Unshielded | 7.8Ohm Max | 65 @ 790kHz | 5.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
