固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTCH654F-390K39UH RADIAL LEAD FIXED INDUCTOR Central Technologies |
497 |
|
数据手册 |
CTCH654F | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 39 µH | ±10% | - | 680mA | Unshielded | 290mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.236" Dia (6.00mm) | 0.197" (5.00mm) |
|
CTHC2220F-680J68UH SMD WW MOLDED INDUCTOR Central Technologies |
900 |
|
数据手册 |
CTHC2220F | 2220 (5750 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 290 mA | - | Shielded | 1.2Ohm Max | 10 @ 2.52MHz | 7MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Surface Mount | 2220 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.169" (4.30mm) |
|
CTCDRH62BF-100M10UH SMD SHIELDED POWR INDUCTOR Central Technologies |
505 |
|
数据手册 |
CTCDRH62BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 1.1A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|

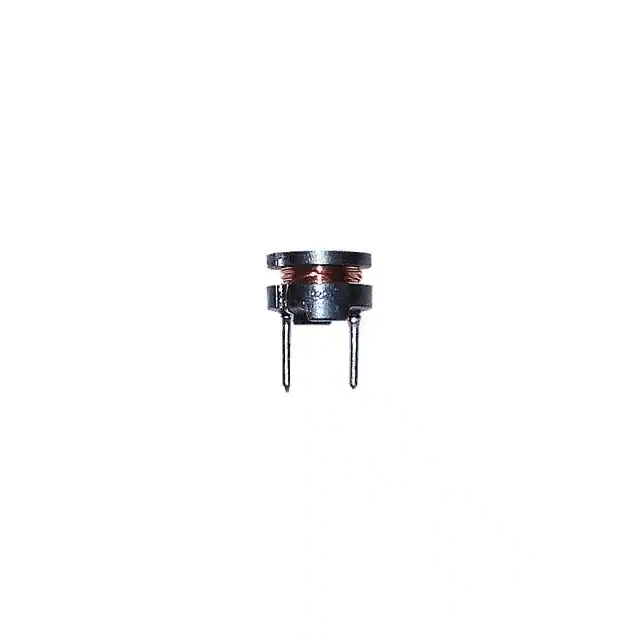

CTCH855F-680K68UH RADIAL LEAD FIX INDUCTOR Central Technologies |
172 |
|
数据手册 |
CTCH855F | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | - | 1A | Unshielded | 340mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
CTMC1812SF-471KSMD FERRITE CORE WW INDUCTOR Central Technologies |
157 |
|
数据手册 |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 62 mA | - | Unshielded | 26Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTDO3340PF-10310UH SMD POWER INDUCTOR Central Technologies |
900 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.5 A | 8A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3340PF-1051000UH SMD POWER INDUCTOR Central Technologies |
890 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 100 mA | 800mA | Unshielded | 2Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3340PF-47347UH SMD POWER INDUCTOR Central Technologies |
715 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.6 A | 3.8A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
CTMC2220F-682J6800UH FER CORE WIRE-WND INDUCTR Central Technologies |
535 |
|
数据手册 |
CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 mH | ±5% | 30 mA | - | Unshielded | 110Ohm Max | 20 @ 252kHz | 700kHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
|
CTDO3340PF-22322UH SMD POWER INDUCTOR Central Technologies |
255 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.5 A | 5.5A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
