固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

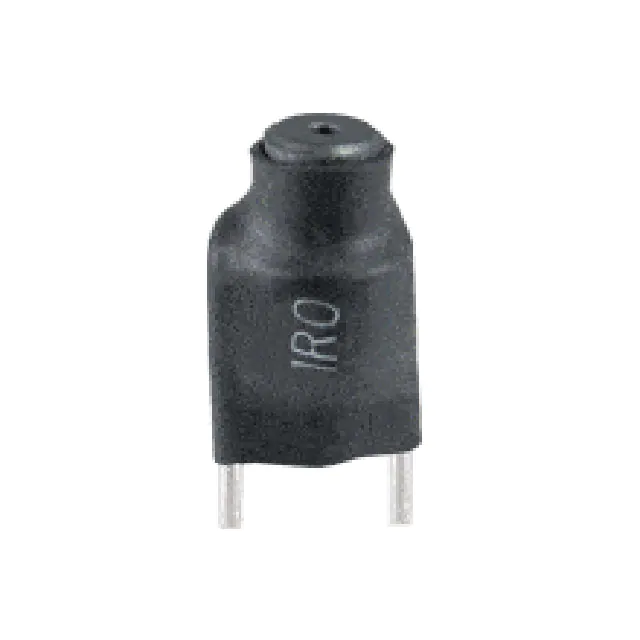

CTVF-0-221K-03220UH RADIAL POWER INDUCTOR Central Technologies |
105 |
|
数据手册 |
CTVF-0 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 220 µH | ±10% | 2.1 A | - | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 15.75 kHz | - | Through Hole | Radial | 0.551" Dia (14.00mm) | 1.201" (30.50mm) |
|
CTRL5480F-4-221K220UH RADIAL FIXED INDUCTOR Central Technologies |
150 |
|
数据手册 |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 220 µH | ±10% | 1.3 A | 1.9A | Unshielded | 252mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
CTDR2F-4R7M4.7UH RADIAL DRUM CORE INDUCTOR Central Technologies |
448 |
|
数据手册 |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 11.4 A | - | Unshielded | 5mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-101K100UH RADIAL DRUM CORE INDUCTOR Central Technologies |
301 |
|
数据手册 |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 100 µH | ±10% | 4 A | - | Unshielded | 80mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-680K68UH RADIAL DRUM CORE INDUCTOR Central Technologies |
253 |
|
数据手册 |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 68 µH | ±10% | 4.8 A | - | Unshielded | 53mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
CTDR2F-391K390UH RADIAL DRUM CORE INDUCTOR Central Technologies |
150 |
|
数据手册 |
CTDR2F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 390 µH | ±10% | 1.6 A | - | Unshielded | 320mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
CTDR3F-471K470UH RADIAL DRUM CORE INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 470 µH | ±10% | - | 4A | Unshielded | 187mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
|
CTDR3F-101K100UH RADIAL DRUM CORE INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 100 µH | ±10% | - | 9A | Unshielded | 34mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|
|
CTDR3F-221K220UH RADIAL DRUM CORE INDUCTOR Central Technologies |
200 |
|
数据手册 |
CTDR3F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 220 µH | ±10% | - | 5.5A | Unshielded | 80mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.102" Dia (28.00mm) | 0.866" (22.00mm) |
|

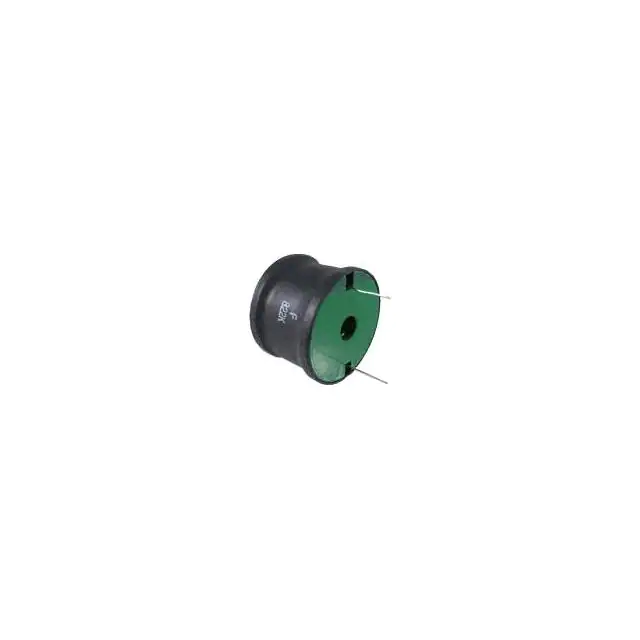

CTDR4F-102K1000UH RADIAL DRUM CORE INDUCTOR Central Technologies |
500 |
|
数据手册 |
CTDR4F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1 mH | ±10% | - | 5.5A | Unshielded | 216mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
