固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74439358022FIXED IND 2.2UH 13A 3.7 MOHM SMD Würth Elektronik |
365 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 13 A | 30A | Shielded | 3.7mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8080 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
74439358150WE-XHMI SMT POWER INDUCTOR SIZE Würth Elektronik |
239 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 5.6 A | 10.7A | Shielded | 25mOhm | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
78439369022WE-XHMA SMT POWER INDUCTOR 1090; Würth Elektronik |
553 |
|
数据手册 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 16 A | 32.1A | Shielded | 2.2mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
78439369150WE-XHMA SMT POWER INDUCTOR 1090; Würth Elektronik |
528 |
|
数据手册 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 8.3 A | 16.95A | Shielded | 14.8mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
78439369033WE-XHMA SMT POWER INDUCTOR 1090; Würth Elektronik |
515 |
|
数据手册 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 15 A | 34A | Shielded | 3.4mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
74439369033FIXED IND 3.3UH 15A 3.4MOHM SMD Würth Elektronik |
456 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 15 A | 29A | Shielded | 3.4mOhm | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
74439369068FIXED IND 6.8UH 10.5A 7.6MOHM SM Würth Elektronik |
301 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 10.5 A | 21.5A | Shielded | 7.6mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
74439369022FIXED IND 2.2UH 16A 2.2MOHM SMD Würth Elektronik |
200 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 16 A | 34A | Shielded | 2.2mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
7447076FIXED IND 150UH 5A 45 MOHM TH Würth Elektronik |
290 |
|
数据手册 |
WE-FI | Radial, Vertical (Open) | Tray | Active | Toroidal | Ferrite | 150 µH | ±20% | 5 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.083" Dia x 0.512" W (27.50mm x 13.00mm) | - |
|

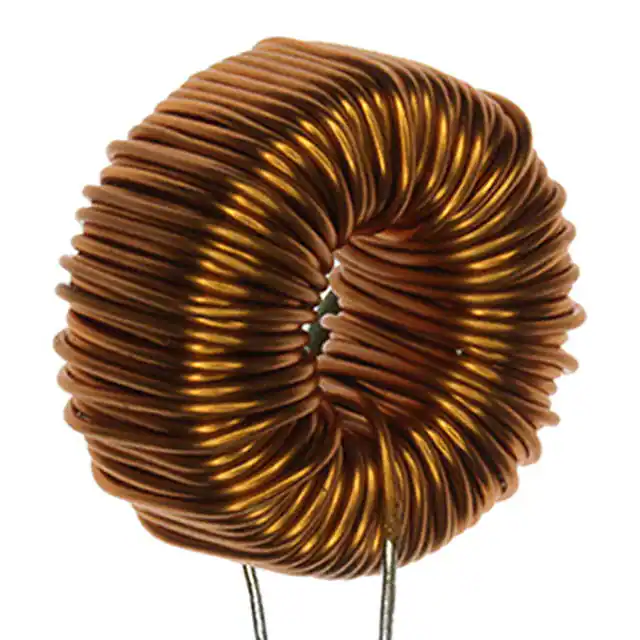

7447075FIXED IND 860UH 3A 150 MOHM TH Würth Elektronik |
195 |
|
数据手册 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 860 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.591" W (28.50mm x 15.00mm) | - |
