固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443550320FIXED IND 3.2UH 16A 5.3 MOHM SMD Würth Elektronik |
384 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.2 µH | ±20% | 16 A | 15A | Shielded | 5.3mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|
744355047FIXED IND 470NH 26A 0.9 MOHM SMD Würth Elektronik |
341 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 26 A | 50A | Shielded | 0.9mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|
7843332000WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik |
128 |
|
数据手册 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 20 µH | ±20% | 4.3 A | 7A | Shielded | 60.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
7447798221FIXED IND 22UH 4.7A 37.3MOHM SMD Würth Elektronik |
8,994 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4.7 A | 3.5A | Shielded | 37.3mOhm Max | - | 17MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798151FIXED IND 15UH 5.45A 25.8MOHM SM Würth Elektronik |
8,468 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 5.45 A | 4A | Shielded | 25.8mOhm Max | - | 19MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798271FIXED IND 27UH 4.3A 42.5MOHM SMD Würth Elektronik |
1,401 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 27 µH | ±20% | 4.3 A | 3.1A | Shielded | 42.5mOhm Max | - | 15MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798360FIXED IND 3.6UH 12A 5.95 MOHM Würth Elektronik |
1,298 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.6 µH | ±30% | 12 A | 8.6A | Shielded | 5.95mOhm Max | - | 46MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798620FIXED IND 6.2UH 9.4A 9.5MOHM SMD Würth Elektronik |
750 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 6.2 µH | ±30% | 9.4 A | 6.7A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
7687709152FIXED IND 1.5MH 520MA 2.2OHM SMD Würth Elektronik |
682 |
|
数据手册 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 mH | ±20% | 520 mA | 800mA | Shielded | 2.2Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
|

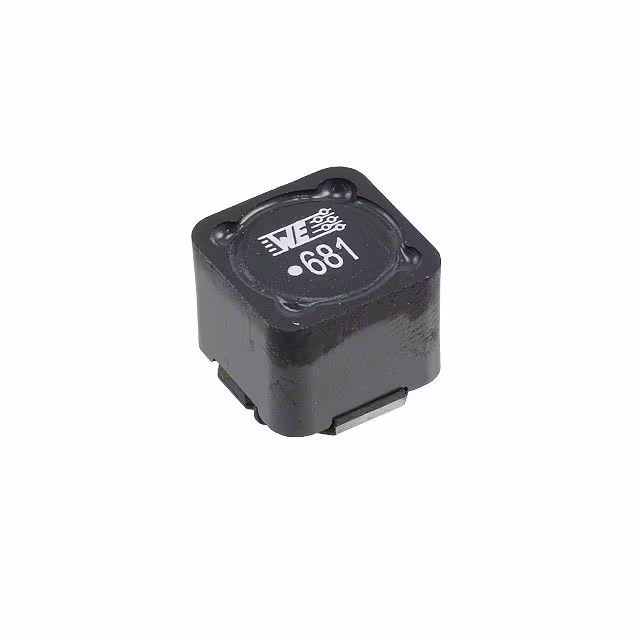

7687709681FIXED IND 680UH 800MA 1.15OHM SM Würth Elektronik |
543 |
|
数据手册 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 800 mA | 1.2A | Shielded | 1.15Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.413" (10.50mm) |
