固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744373965330FIXED IND 33UH 4.7A 0.058OHM SMD Würth Elektronik |
506 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 33 µH | ±20% | 4.7 A | 13.2A | Shielded | 58mOhm Max | - | 4.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
7443091150FIXED IND 1.5UH 34A 0.00042OHM Würth Elektronik |
570 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±20% | 34 A | 27.1A | Shielded | 0.42mOhm | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1411 | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
|
7443091080FIXED IND 800NH 34A 0.00042OHM Würth Elektronik |
407 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 800 nH | ±20% | 34 A | 58.5A | Shielded | 0.42mOhm | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1411 | 0.571" L x 0.531" W (14.50mm x 13.50mm) | 0.421" (10.70mm) |
|
7443552560FIXED IND 5.6UH 6.7A 20.6MOHM SM Würth Elektronik |
1,294 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 6.7 A | 7.5A | Shielded | 20.6mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7447797360FIXED IND 3.6UH 8.2A 12.2MOHM SM Würth Elektronik |
4,815 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 3.6 µH | ±20% | 8.2 A | 8.5A | Shielded | 12.2mOhm Max | - | 55MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
|
7447797820FIXED IND 8.2UH 5.05A 28.6 MOHM Würth Elektronik |
3,776 |
|
数据手册 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 8.2 µH | ±20% | 5.05 A | 5.8A | Shielded | 28.6mOhm Max | - | 28MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|

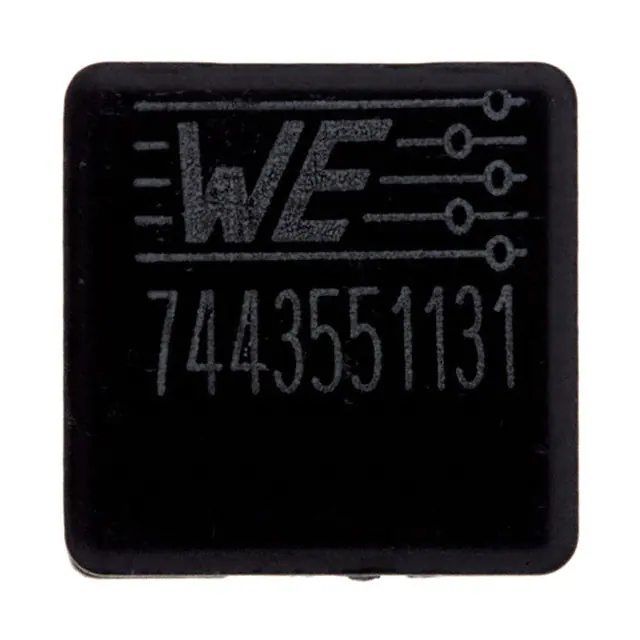

7443551131FIXED IND 13UH 10A 11.2 MOHM SMD Würth Elektronik |
10,514 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 13 µH | ±20% | 10 A | 9A | Shielded | 11.2mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

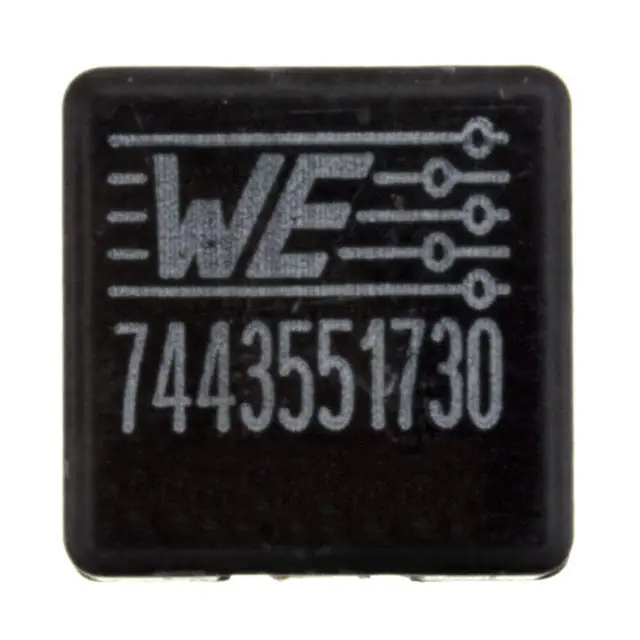

7443551730FIXED IND 7.3UH 13A 5.9 MOHM SMD Würth Elektronik |
7,790 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.3 µH | ±20% | 13 A | 12A | Shielded | 5.9mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

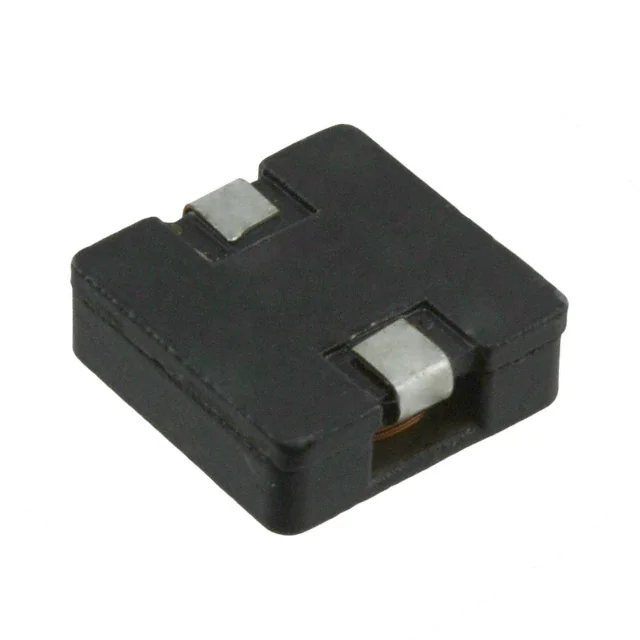

7443550820FIXED IND 8.2UH 10A 11.6MOHM SMD Würth Elektronik |
5,710 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 10 A | 11A | Shielded | 11.6mOhm | - | 20MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|
7443551920FIXED IND 9.2UH 12A 7.8 MOHM SMD Würth Elektronik |
4,382 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 9.2 µH | ±20% | 12 A | 10.5A | Shielded | 7.8mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
