固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744393440018FIXED IND 180NH 20A 1.32MOHM SMD Würth Elektronik |
860 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 180 nH | ±20% | 20 A | 39A | Shielded | 1.32mOhm | - | 168MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
7847227010FIXED IND 1UH 22.5A 2 MOHM SMD Würth Elektronik |
162 |
|
数据手册 |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 22.5 A | 29A | Unshielded | 2mOhm | - | 213MHz | AEC-Q200 | -40°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.591" L x 0.394" W (15.00mm x 10.00mm) | 0.307" (7.80mm) |
|
744115FIXED IND 200UH 2.2A 180 MOHM TH Würth Elektronik |
940 |
|
数据手册 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 200 µH | ±20% | 2.2 A | 900mA | Unshielded | 180mOhm Max | - | 3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.709" Dia x 0.354" W (18.00mm x 9.00mm) | - |
|
7443552150FIXED IND 1.5UH 14A 5.3 MOHM SMD Würth Elektronik |
1,399 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 14 A | 17A | Shielded | 5.3mOhm | - | 63MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|

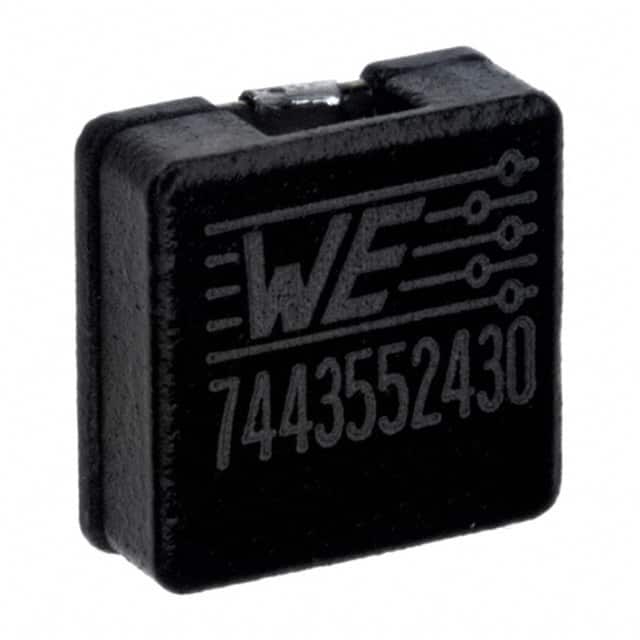

7443552430FIXED IND 4.3UH 8A 14.1 MOHM SMD Würth Elektronik |
988 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.3 µH | ±20% | 8 A | 8A | Shielded | 14.1mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
744373965100FIXED IND 10UH 8.8A 0.0165OHM SM Würth Elektronik |
2,245 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 8.8 A | 23.9A | Shielded | 16.5mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
744373965150FIXED IND 15UH 6.8A 0.028OHM SMD Würth Elektronik |
1,344 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 15 µH | ±20% | 6.8 A | 18.5A | Shielded | 28mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
744373965047FIXED IND 4.7UH 11A 0.0084OHM SM Würth Elektronik |
1,206 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 11 A | 35.8A | Shielded | 8.4mOhm Max | - | 13.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
744373965220FIXED IND 22UH 5.7A 0.037OHM SMD Würth Elektronik |
1,189 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 5.7 A | 13.9A | Shielded | 37mOhm Max | - | 5.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
|
744373965056FIXED IND 5.6UH 9.6A 0.01OHM SMD Würth Elektronik |
884 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 9.6 A | 33A | Shielded | 10mOhm Max | - | 13.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
