固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74439369082WE-XHMI SMT POWER INDUCTOR 8,2 U Würth Elektronik |
273 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 9.8 A | 20.45A | Shielded | 10mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
74435561100FIXED IND 10UH 15A 6.9 MOHM SMD Würth Elektronik |
430 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 15 A | 21.5A | Shielded | 6.9mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
7443556130FIXED IND 1.3UH 34.5A 0.94 MOHM Würth Elektronik |
367 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.3 µH | ±20% | 34.5 A | 62A | Shielded | 0.94mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
7443556450FIXED IND 4.5UH 20.5A 3.4MOHM SM Würth Elektronik |
129 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.5 µH | ±20% | 20.5 A | 37A | Shielded | 3.4mOhm | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|

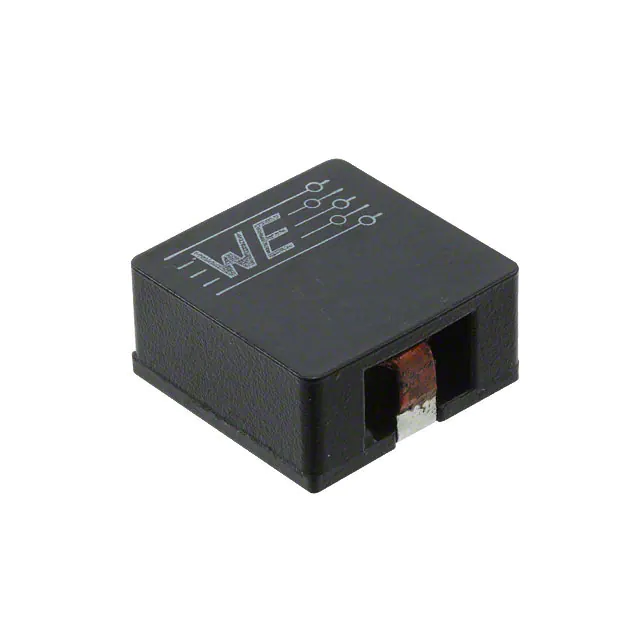

7443557760FIXED IND 7.6UH 20A 3.75MOHM SMD Würth Elektronik |
264 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 7.6 µH | ±20% | 20 A | 20.5A | Shielded | 3.75mOhm | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
74439370100FIXED IND 10UH 11.5A 6.5MOHM SMD Würth Elektronik |
365 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 11.5 A | 35.8A | Shielded | 6.5mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
74439370150FIXED IND 15UH 10A 11.3MOHM SMD Würth Elektronik |
165 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 10 A | 34A | Shielded | 11.3mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
74439370330WE-XHMI SMT POWER INDUCTOR 33 UH Würth Elektronik |
425 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 8.5 A | 18.15A | Shielded | 18mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.433" (11.00mm) |
|
74435586800FIXED IND 68UH 7.5A 27.3MOHM SMD Würth Elektronik |
1,579 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 68 µH | ±20% | 7.5 A | 9.5A | Shielded | 27.3mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435588200FIXED IND 82UH 7A 30.4 MOHM SMD Würth Elektronik |
692 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 82 µH | ±20% | 7 A | 8.5A | Shielded | 30.4mOhm | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
