固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437321047FIXED IND 4.7UH 1.9A 0.145OHM SM Würth Elektronik |
8,768 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 1.9 A | 4.1A | Shielded | 145mOhm Max | - | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
74437321022FIXED IND 2.2UH 2.5A 0.08OHM SMD Würth Elektronik |
2,219 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 2.5 A | 6.2A | Shielded | 80mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
744373210010FIXED IND 100NH 8.1A 0.0055OHM Würth Elektronik |
2,080 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 100 nH | ±30% | 8.1 A | 29.6A | Shielded | 5.5mOhm Max | - | 365MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|

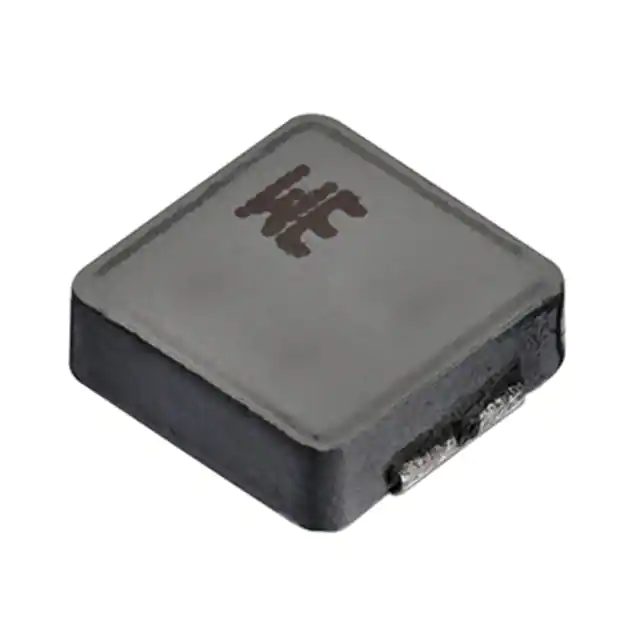

74437334047FIXED IND 4.7UH 2.5A 0.116OHM SM Würth Elektronik |
2,059 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 2.5 A | 7.5A | Shielded | 116mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
|
744373210022FIXED IND 220NH 7.7A 0.008OHM SM Würth Elektronik |
1,052 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 7.7 A | 21.5A | Shielded | 8mOhm Max | - | 230MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4012 | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.047" (1.20mm) |
|
|
74437334100FIXED IND 10UH 1.8A 0.199OHM SMD Würth Elektronik |
305 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 1.8 A | 5.15A | Shielded | 199mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|

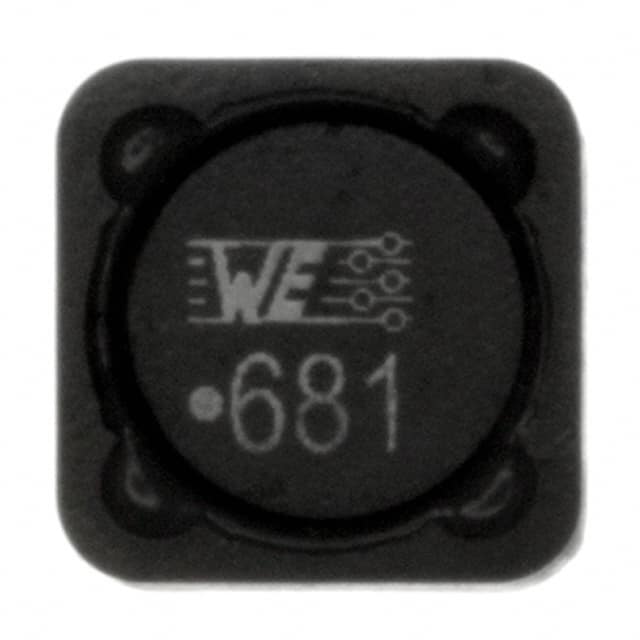

7447709681FIXED IND 680UH 1.1A 825MOHM SMD Würth Elektronik |
12,097 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 1.1 A | 1.3A | Shielded | 825mOhm Max | - | 1.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

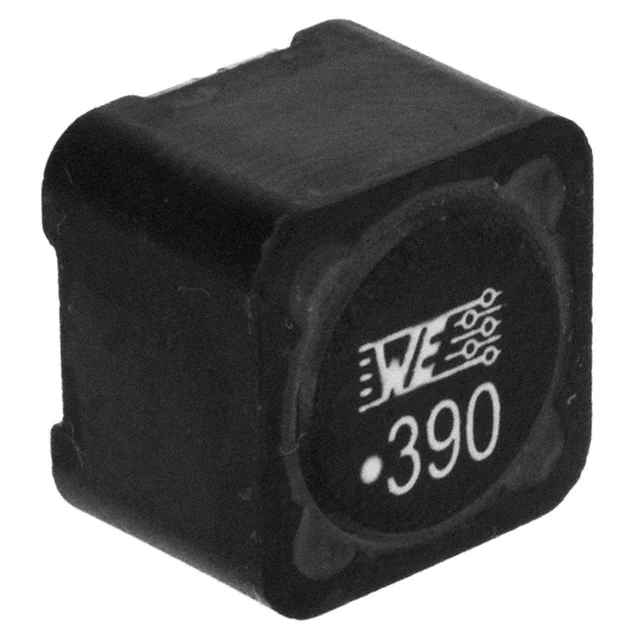

7447709390FIXED IND 39UH 4.1A 56 MOHM SMD Würth Elektronik |
11,493 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 4.1 A | 5A | Shielded | 56mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709271FIXED IND 270UH 1.6A 330MOHM SMD Würth Elektronik |
6,214 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 1.6 A | 2.1A | Shielded | 330mOhm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7447709270FIXED IND 27UH 4.6A 40 MOHM SMD Würth Elektronik |
3,687 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 4.6 A | 5.8A | Shielded | 40mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
