固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443331000FIXED IND 10UH 9A 23.1 MOHM SMD Würth Elektronik |
14,878 |
|
数据手册 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9 A | 8A | Shielded | 23.1mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

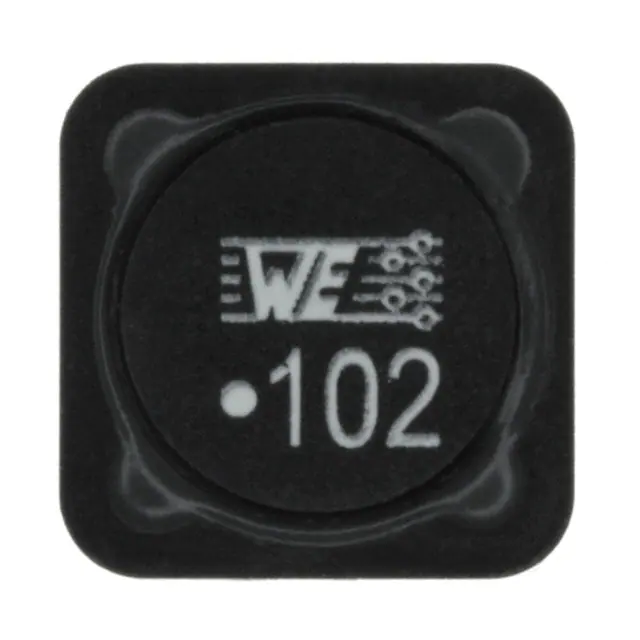

74477030FIXED IND 1MH 600MA 1.82 OHM SMD Würth Elektronik |
4,458 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 600 mA | 700mA | Shielded | 1.82Ohm Max | - | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330220FIXED IND 2.2UH 16.5A 4.8MOHM SM Würth Elektronik |
3,902 |
|
数据手册 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 16.5 A | 22A | Shielded | 4.8mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

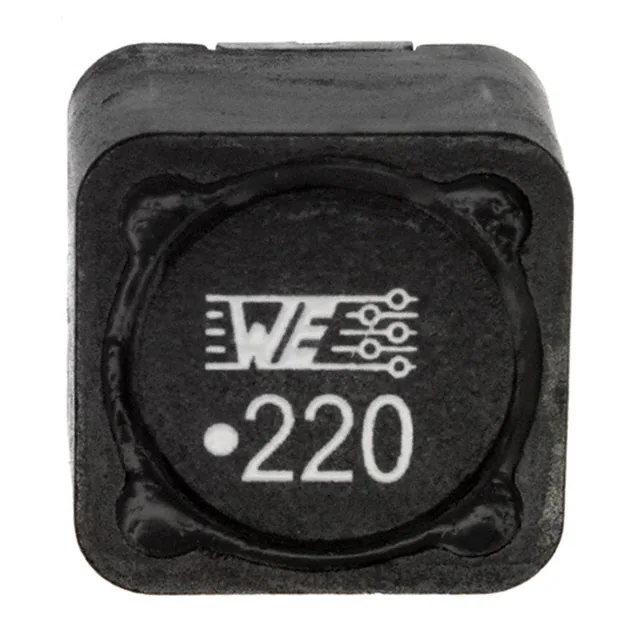

744770122FIXED IND 22UH 4.1A 43 MOHM SMD Würth Elektronik |
2,960 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.6 A | 5A | Shielded | 43mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

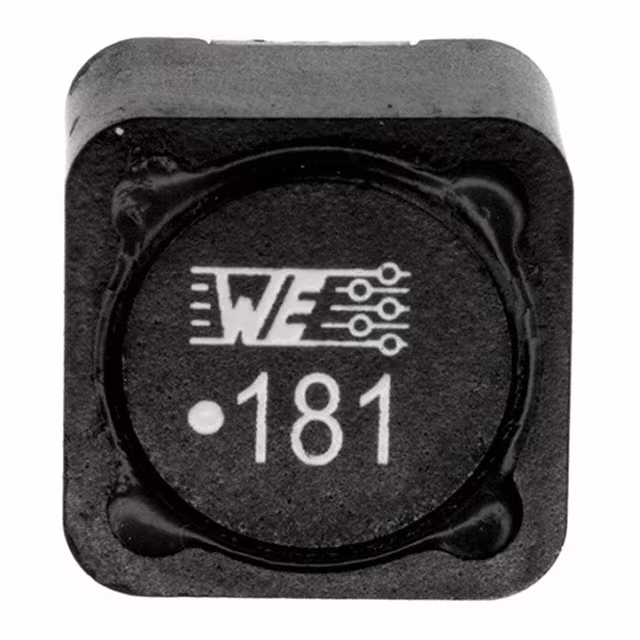

744770218FIXED IND 180UH 1.4A 350MOHM SMD Würth Elektronik |
1,438 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 1.4 A | 1.6A | Shielded | 350mOhm Max | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330820FIXED IND 8.2UH 11.5A 15MOHM SMD Würth Elektronik |
1,391 |
|
数据手册 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 11.5 A | 8A | Shielded | 15mOhm Max | - | 36MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
744770168FIXED IND 68UH 2.3A 140 MOHM SMD Würth Elektronik |
1,332 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.3 A | 2.5A | Shielded | 140mOhm Max | - | 6.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330680FIXED IND 6.8UH 11.5A 15MOHM SMD Würth Elektronik |
1,215 |
|
数据手册 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 11.5 A | 11A | Shielded | 15mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

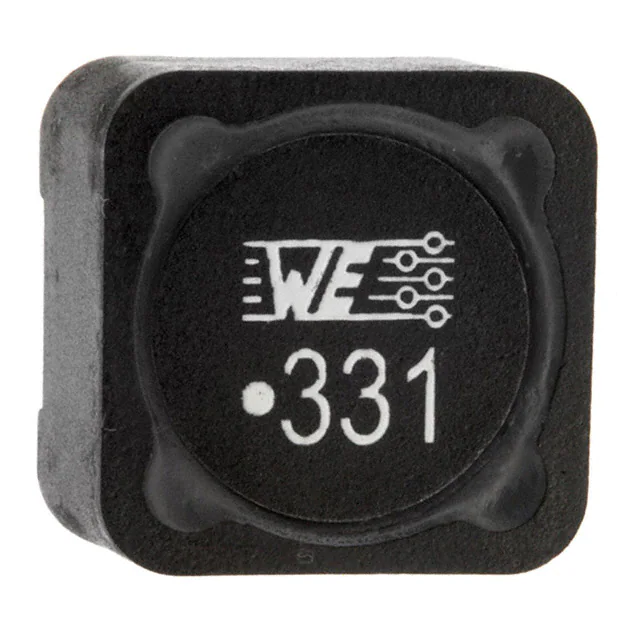

744770233FIXED IND 330UH 1.1A 640MOHM SMD Würth Elektronik |
1,146 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.1 A | 1.1A | Shielded | 640mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
744770127FIXED IND 27UH 3.7A 46 MOHM SMD Würth Elektronik |
768 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.7 A | 3.8A | Shielded | 46mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
