固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447714068FIXED IND 6.8UH 5.2A 22 MOHM SMD Würth Elektronik |
458 |
|
数据手册 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.2 A | 5.8A | Shielded | 22mOhm Max | - | 23.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744771115FIXED IND 15UH 3.75A 30 MOHM SMD Würth Elektronik |
452 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.2 A | 4.5A | Shielded | 28mOhm Max | - | 16.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447715101FIXED IND 100UH 1.3A 270MOHM SMD Würth Elektronik |
375 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 1.4A | Shielded | 270mOhm Max | - | 6.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
7447714151FIXED IND 150UH 1.2A 300MOHM SMD Würth Elektronik |
329 |
|
数据手册 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.2 A | 1.4A | Shielded | 300mOhm Max | - | 4.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

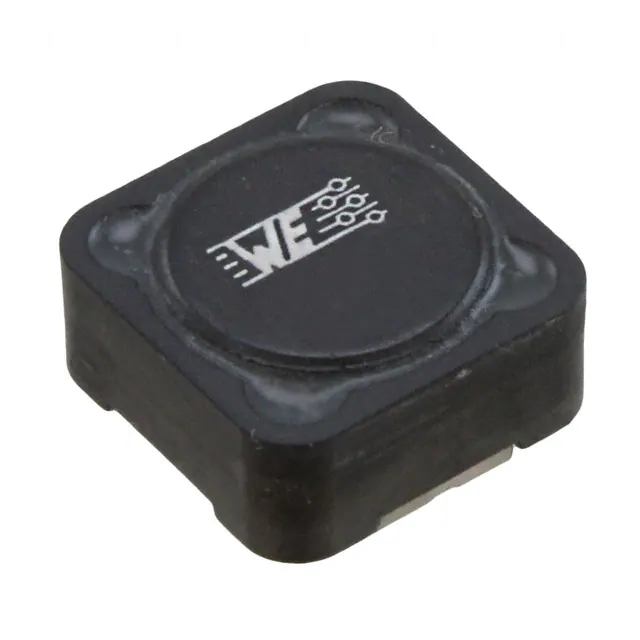

744771006FIXED IND 6.8UH 6.25A 22MOHM SMD Würth Elektronik |
311 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.25 A | 6.4A | Shielded | 22mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714270FIXED IND 27UH 2.6A 74 MOHM SMD Würth Elektronik |
176 |
|
数据手册 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.6 A | 3.4A | Shielded | 74mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744750460220FIXED IND 22UH 6.9A 16 MOHM TH Würth Elektronik |
247 |
|
数据手册 |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 6.9 A | 7.5A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.504" Dia (12.80mm) | 0.622" (15.80mm) |
|
74437349220FIXED IND 22UH 2.1A 0.17OHM SMD Würth Elektronik |
3,798 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 2.1 A | 8.5A | Shielded | 170mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
74437349150FIXED IND 15UH 2.75A 0.092OHM SM Würth Elektronik |
2,750 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 15 µH | ±20% | 2.75 A | 7.2A | Shielded | 92mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7050 | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.197" (5.00mm) |
|
|
74437349015FIXED IND 1.5UH 8A 0.009OHM SMD Würth Elektronik |
2,579 |
|
数据手册 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 8 A | 18.7A | Shielded | 9mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
