固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744750560100FIXED IND 10UH 11.4A 6.8MOHM TH Würth Elektronik |
136 |
|
数据手册 |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 11.4 A | 13.4A | Shielded | 6.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.583" Dia (14.80mm) | 0.622" (15.80mm) |
|
7687779471FIXED IND 470UH 350MA 3.2OHM SMD Würth Elektronik |
733 |
|
数据手册 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 350 mA | 370mA | Shielded | 3.2Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7687779102FIXED IND 1MH 240MA 6 OHM SMD Würth Elektronik |
525 |
|
数据手册 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 240 mA | 250mA | Shielded | 6Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.154" (3.90mm) |
|
744778510FIXED IND 10UH 1.9A 125 MOHM SMD Würth Elektronik |
11,161 |
|
数据手册 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 1.9 A | 1.6A | Shielded | 125mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.130" (3.30mm) |
|
7447789004FIXED IND 4.7UH 2.9A 35 MOHM SMD Würth Elektronik |
6,982 |
|
数据手册 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.9 A | 3.9A | Shielded | 35mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
744777910FIXED IND 10UH 2A 49 MOHM SMD Würth Elektronik |
6,647 |
|
数据手册 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 2.6A | Shielded | 49mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777004FIXED IND 4.7UH 3.2A 40 MOHM SMD Würth Elektronik |
5,942 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.2 A | 4A | Shielded | 40mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447789006FIXED IND 6.8UH 2.5A 44 MOHM SMD Würth Elektronik |
5,812 |
|
数据手册 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.5 A | 2.75A | Shielded | 44mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
744778910FIXED IND 10UH 1.83A 72 MOHM SMD Würth Elektronik |
5,290 |
|
数据手册 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.83 A | 2.2A | Shielded | 72mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|

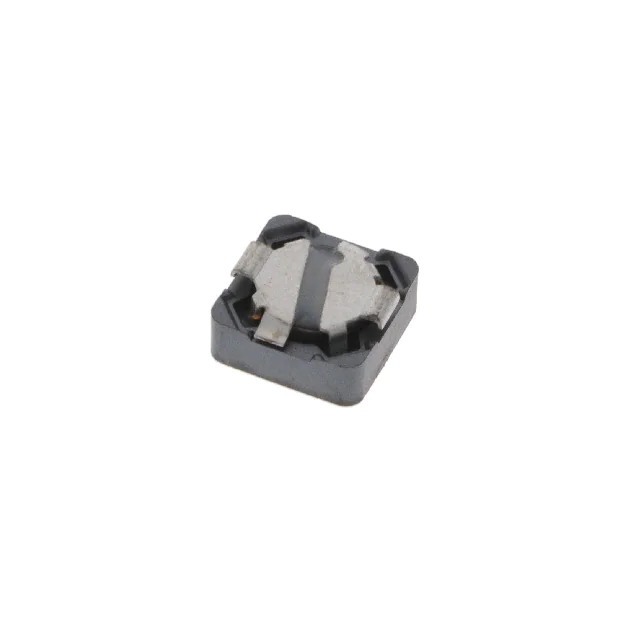

74477820FIXED IND 100UH 620MA 790MOHM SM Würth Elektronik |
4,843 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 620 mA | 760mA | Shielded | 790mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
