固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404042470FIXED IND 47UH 600MA 620MOHM SMD Würth Elektronik |
4,641 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 600 mA | 700mA | Shielded | 620mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
74404086103FIXED IND 10MH 130MA 22.8OHM SMD Würth Elektronik |
405 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 130 mA | 200mA | Shielded | 22.8Ohm | - | 411kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
744732100FIXED IND 10UH 4A 33 MOHM TH Würth Elektronik |
4,754 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Unshielded | 33mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
74404086221WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
3,694 |
|
数据手册 |
WE-LQS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 950 mA | 1.44A | Shielded | 555mOhm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
744787068FIXED IND 6.8UH 3A 33 MOHM SMD Würth Elektronik |
2,546 |
|
数据手册 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 3A | Shielded | 33mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
7447231102FIXED IND 1MH 800MA 860 MOHM TH Würth Elektronik |
1,031 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 1 mH | ±5% | 800 mA | 1A | Unshielded | 860mOhm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
744710205FIXED IND 2UH 5A 6.5 MOHM TH Würth Elektronik |
4,843 |
|
数据手册 |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 5 A | - | Unshielded | 6.5mOhm | - | 100MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.232" Dia x 0.551" L (5.90mm x 14.00mm) | - |
|

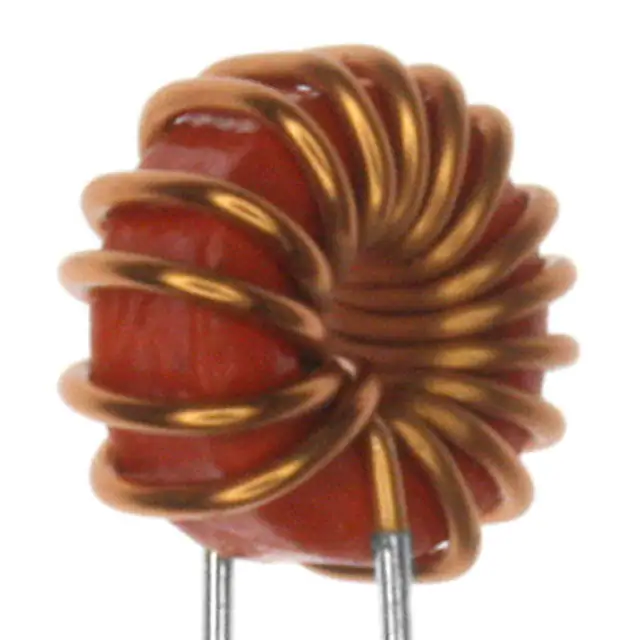

7447054FIXED IND 10UH 2A 20 MOHM TH Würth Elektronik |
2,955 |
|
数据手册 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 10 µH | ±20% | 2 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | - |
|

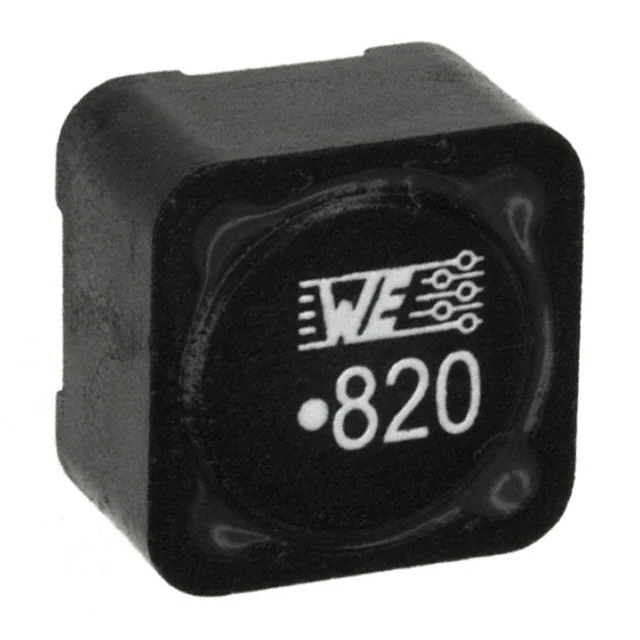

744770182FIXED IND 82UH 2.25A 160MOHM SMD Würth Elektronik |
3,709 |
|
数据手册 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.25 A | 2.45A | Shielded | 160mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74458304FIXED IND 4.7MH 400MA 4.8OHM SMD Würth Elektronik |
3,997 |
|
数据手册 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 400 mA | 900mA | Unshielded | 4.8Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
