固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447720100FIXED IND 10UH 3.5A 43 MOHM TH Würth Elektronik |
107 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 µH | ±15% | 3.5 A | 4.9A | Unshielded | 43mOhm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
7440450039FIXED IND 3.9UH 1.32A 140MOHM SM Würth Elektronik |
1,246 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.32 A | 2.5A | Unshielded | 140mOhm Max | 40 @ 1MHz | 54MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

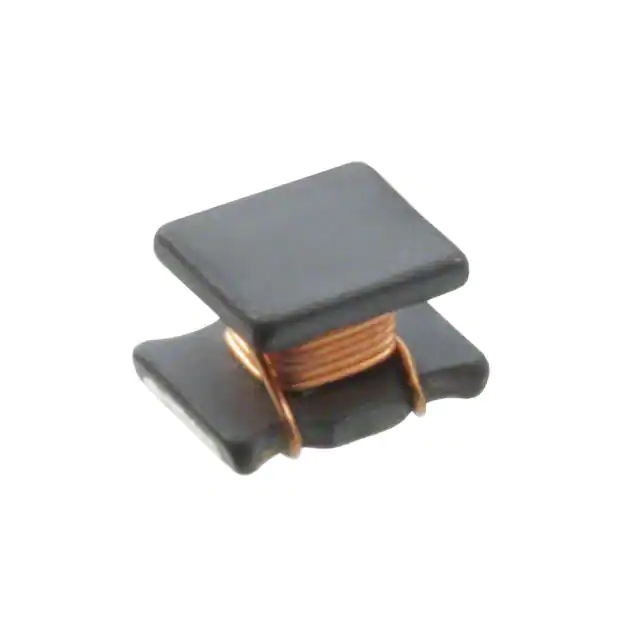

744045004FIXED IND 4.7UH 1.24A 150MOHM SM Würth Elektronik |
1,004 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.24 A | 2A | Unshielded | 150mOhm Max | 36 @ 1MHz | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045471FIXED IND 470UH 105MA 14.2OHM SM Würth Elektronik |
863 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 105 mA | 180mA | Unshielded | 14.2Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

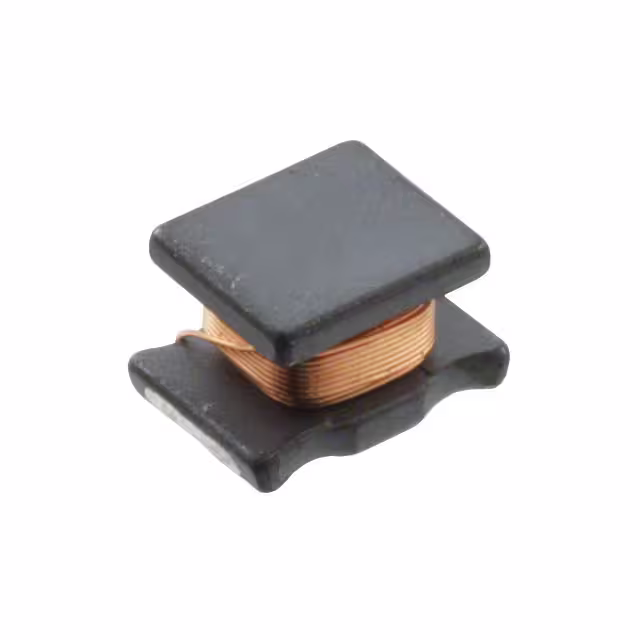

744045215FIXED IND 150UH 220MA 3.7OHM SMD Würth Elektronik |
745 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 220 mA | 420mA | Unshielded | 3.7Ohm Max | 55 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045102FIXED IND 1MH 70MA 30 OHM SMD Würth Elektronik |
627 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 70 mA | 160mA | Unshielded | 30Ohm Max | 28 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045006FIXED IND 6.8UH 1.1A 200MOHM SMD Würth Elektronik |
570 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 1.6A | Unshielded | 200mOhm Max | 36 @ 1MHz | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
744045391FIXED IND 390UH 110MA 13 OHM SMD Würth Elektronik |
380 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 110 mA | 270mA | Unshielded | 13Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

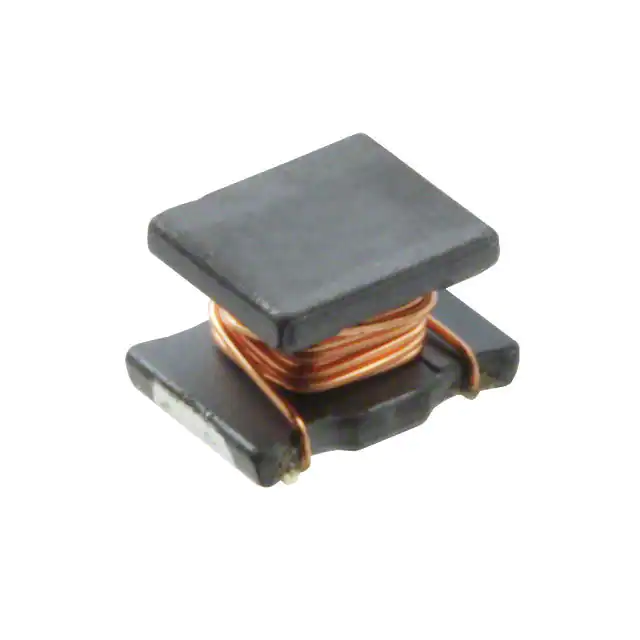

7440450056FIXED IND 5.6UH 1.18A 180MOHM SM Würth Elektronik |
348 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.18 A | 1.9A | Unshielded | 180mOhm Max | 36 @ 1MHz | 41MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045222FIXED IND 2.2MH 40MA 63 OHM SMD Würth Elektronik |
127 |
|
数据手册 |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 40 mA | 78mA | Unshielded | 63Ohm Max | 30 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
