固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 0.118 Height.jpg)
|

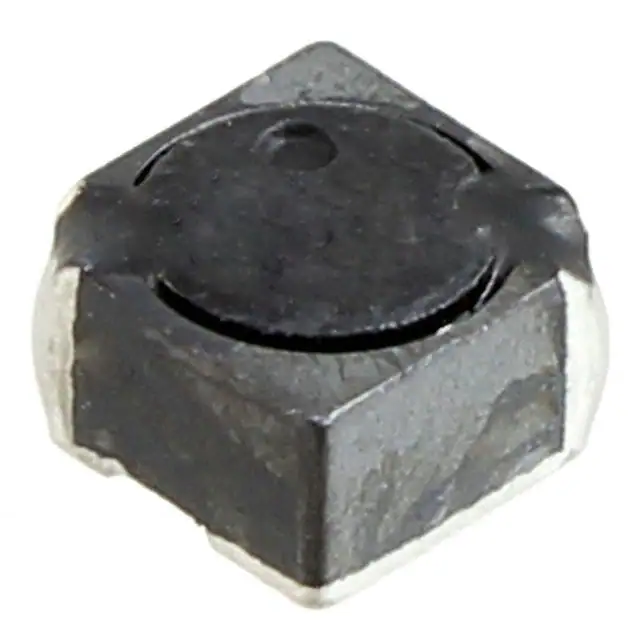

74408942560FIXED IND 56UH 510MA 920MOHM SMD Würth Elektronik |
500 |
|
数据手册 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 510 mA | 820mA | Shielded | 920mOhm Max | - | 9.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
784775182FIXED IND 82UH 900MA 370MOHM SMD Würth Elektronik |
500 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 900 mA | 950mA | Unshielded | 370mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775212FIXED IND 120UH 670MA 470MOHM SM Würth Elektronik |
500 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 670 mA | 810mA | Unshielded | 470mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
784775218FIXED IND 180UH 550MA 710MOHM SM Würth Elektronik |
490 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 550 mA | 570mA | Unshielded | 710mOhm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

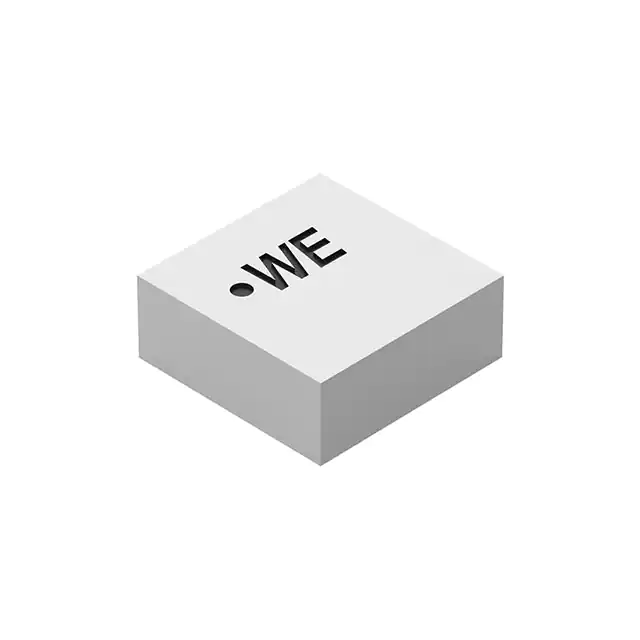

78438366015WE-MAIA SMT POWER INDUCTOR Würth Elektronik |
988 |
|
数据手册 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.5 µH | ±20% | 6.7 A | 9.5A | Shielded | 21.3mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.083" (2.10mm) |
|
74453168FIXED IND 68UH 480MA 0.8OHM SMD Würth Elektronik |
1,000 |
|
数据手册 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 68 µH | ±20% | 480 mA | 1.1A | Shielded | 800mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
|
784776112FIXED IND 12UH 2.72A 70 MOHM SMD Würth Elektronik |
500 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.72 A | 3.15A | Unshielded | 70mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776115FIXED IND 15UH 2.47A 80 MOHM SMD Würth Elektronik |
500 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.47 A | 2.88A | Unshielded | 80mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776227FIXED IND 270UH 620MA 970MOHM SM Würth Elektronik |
500 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 620 mA | 680mA | Unshielded | 970mOhm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784776082FIXED IND 8.2UH 4.2A 24 MOHM SMD Würth Elektronik |
499 |
|
数据手册 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 4.2 A | 4.25A | Unshielded | 24mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 1054 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
