固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437529203471FIXED IND 470UH 5.5A 83.45 MOHM Würth Elektronik |
1,969 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 470 µH | ±20% | 5.5 A | 3.7A | Shielded | 83.45mOhm | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
|
74437429203330FIXED IND 33UH 13A 15.3 MOHM SMD Würth Elektronik |
3,647 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 13 A | 16.3A | Shielded | 15.3mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2920 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | 0.807" (20.50mm) |
|
7443641000BFIXED IND 10UH 47.5A 0.968 MOHM Würth Elektronik |
1,731 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 47.5 A | 25.1A | Shielded | 0.968mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
7443640470BFIXED IND 4.7UH 47.5A 0.968 MOHM Würth Elektronik |
2,486 |
|
数据手册 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±20% | 47.5 A | 49.5A | Shielded | 0.968mOhm Max | - | 22.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
7443783533650FIXED IND 65UH 17.2A 14.44 MOHM Würth Elektronik |
4,841 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 65 µH | ±20% | 17.2 A | 26.6A | Shielded | 14.44mOhm Max | - | 4.28MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
760800101FIXED IND 255UH 11.2A 0.036OHM Würth Elektronik |
1,178 |
|
数据手册 |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 255 µH | ±20% | 11.2 A | 10.5A | Unshielded | 36mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.362" Dia (60.00mm) | 1.339" (34.00mm) |
|
|
760801401FIXED IND 118UH 13.9A 0.022OHM Würth Elektronik |
1,132 |
|
数据手册 |
WE-TORPFC | Nonstandard | Tray | Active | Toroidal | - | 118 µH | ±20% | 13.9 A | 23A | Unshielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | Flat Wire | Bolt Mount | - | 2.087" Dia (53.00mm) | 1.102" (28.00mm) |
|

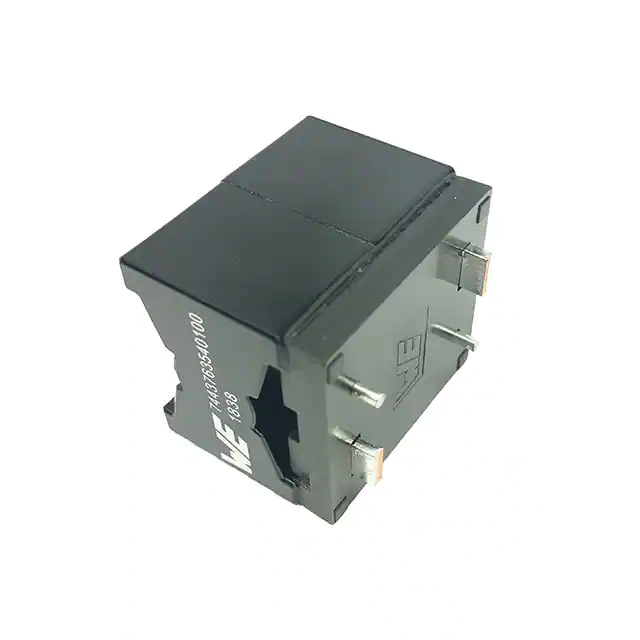

7443763540100FIXED IND 10UH 56.7A 1.2 MOHM TH Würth Elektronik |
1,725 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 56.7 A | 62A | Shielded | 1.2mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
7443763540330FIXED IND 33UH 32A 6.38 MOHM TH Würth Elektronik |
4,428 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 32 A | 38.9A | Shielded | 6.38mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
750343811FIXED IND 9.5UH 15A 6 MOHM TH Würth Elektronik |
4,383 |
|
数据手册 |
MID-FLT | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 9.5 µH | ±10% | 15 A | 15A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 1.060" W (42.00mm x 27.00mm) | 1.654" (42.00mm) |
