固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
74479775247FIXED IND 4.7UH 850MA 312.5 MOHM Würth Elektronik |
5,224 |
|
数据手册 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 850 mA | 250mA | Shielded | 312.5mOhm Max | 25 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
744761168CFIXED IND 68NH 600MA 350MOHM SMD Würth Elektronik |
5,066 |
|
数据手册 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 350mOhm Max | 32 @ 200MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761133CFIXED IND 33NH 600MA 200MOHM SMD Würth Elektronik |
1,470 |
|
数据手册 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 36 @ 250MHz | 2.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761139CFIXED IND 39NH 600MA 210MOHM SMD Würth Elektronik |
1,356 |
|
数据手册 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 600 mA | - | Unshielded | 210mOhm Max | 36 @ 250MHz | 2.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|

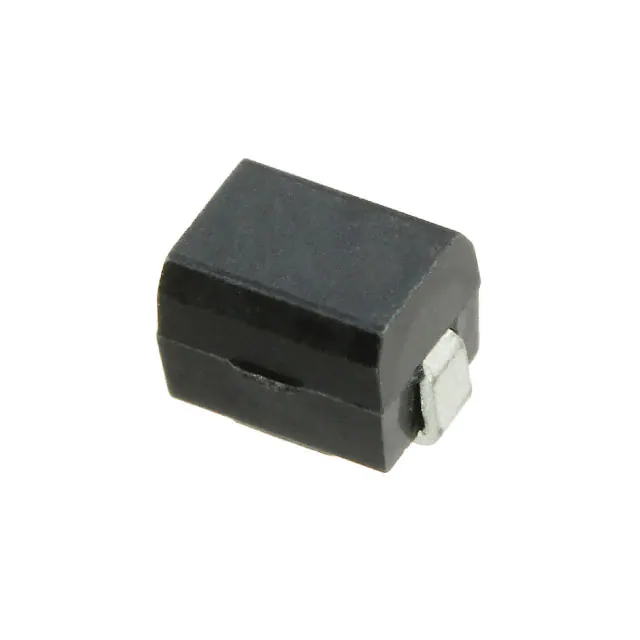

7447669220FIXED IND 220UH 200MA 7.2OHM SMD Würth Elektronik |
1,933 |
|
数据手册 |
WE-GFH | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 µH | ±10% | 200 mA | - | Unshielded | 9Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
744765116AFIXED IND 16NH 560MA 220MOHM SMD Würth Elektronik |
11,495 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±5% | 560 mA | - | Unshielded | 220mOhm Max | 24 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765019AFIXED IND 1.9NH 1.04A 70MOHM SMD Würth Elektronik |
10,338 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.9 nH | ±0.2nH | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765133AFIXED IND 33NH 400MA 350MOHM SMD Würth Elektronik |
8,749 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 400 mA | - | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765075AFIXED IND 7.5NH 680MA 104MOHM SM Würth Elektronik |
7,360 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 25 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765056AFIXED IND 5.6NH 760MA 83MOHM SMD Würth Elektronik |
5,511 |
|
数据手册 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
