固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74435574700FIXED IND 47UH 6.8A 33.5MOHM SMD Würth Elektronik |
1,129 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 6.8 A | 7A | Shielded | 33.5mOhm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435573300FIXED IND 33UH 8.5A 21.7MOHM SMD Würth Elektronik |
805 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 8.5 A | 9A | Shielded | 21.7mOhm | - | 9.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|

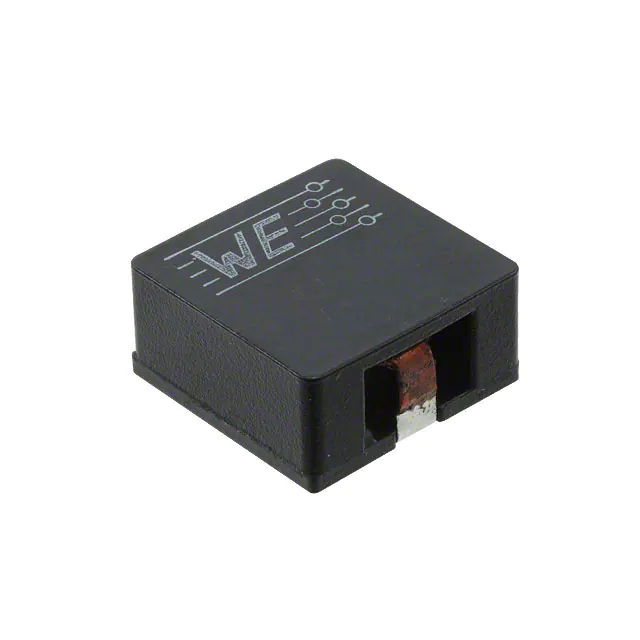

7443557560FIXED IND 5.6UH 25A 2.82MOHM SMD Würth Elektronik |
565 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 25 A | 27A | Shielded | 2.82mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435571100FIXED IND 10UH 16.5A 6.9MOHM SMD Würth Elektronik |
170 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 16.5 A | 18.5A | Shielded | 6.9mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
74439370047FIXED IND 4.7UH 17A 3.5MOHM SMD Würth Elektronik |
151 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 17 A | 58A | Shielded | 3.5mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
74435582200FIXED IND 22UH 15A 7 MOHM SMD Würth Elektronik |
5,823 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 15 A | 18A | Shielded | 7mOhm | - | 8.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435584700FIXED IND 47UH 9A 19.2 MOHM SMD Würth Elektronik |
1,555 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 47 µH | ±20% | 9 A | 12A | Shielded | 19.2mOhm | - | 6.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435580680FIXED IND 6.8UH 28.5A 2.1MOHM SM Würth Elektronik |
539 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 28.5 A | 31A | Shielded | 2.1mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435583300FIXED IND 33UH 11.5A 13.2MOHM SM Würth Elektronik |
410 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 11.5 A | 15A | Shielded | 13.2mOhm | - | 6.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|

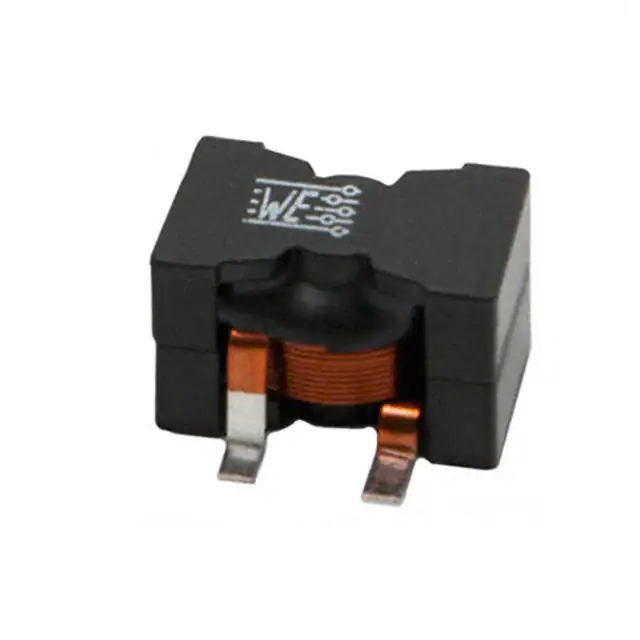

7443631000FIXED IND 10UH 16A 7.96 MOHM SMD Würth Elektronik |
3,762 |
|
数据手册 |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±15% | 16 A | 23A | Shielded | 7.96mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
