固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

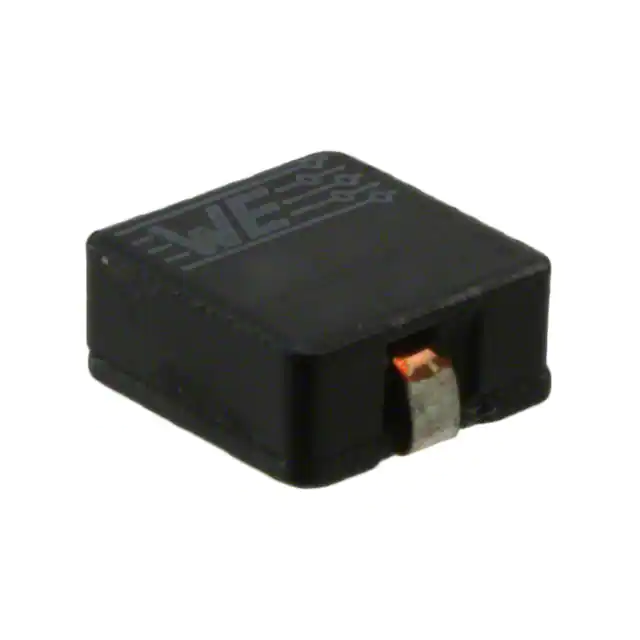

744325780FIXED IND 7.8UH 8A 13.6 MOHM SMD Würth Elektronik |
1,703 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.8 µH | ±20% | 8 A | 9.5A | Shielded | 13.6mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
744325550FIXED IND 5.5UH 10A 10.3MOHM SMD Würth Elektronik |
1,349 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.5 µH | ±20% | 10 A | 12A | Shielded | 10.3mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
744325330FIXED IND 3.3UH 12A 5.9 MOHM SMD Würth Elektronik |
190 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 12 A | 15A | Shielded | 5.9mOhm | - | 54MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|

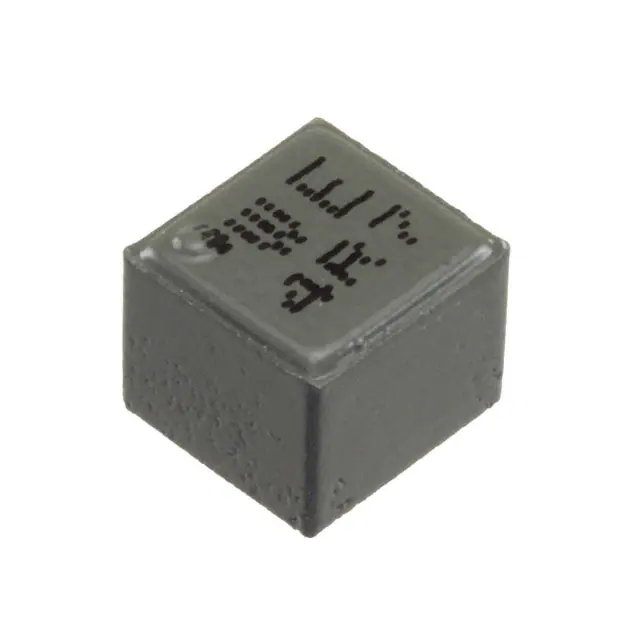

74439358047FIXED IND 4.7UH 9.5A 8.65MOHM SM Würth Elektronik |
943 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 9.5 A | 20.5A | Shielded | 8.65mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8080 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
74439369047FIXED IND 4.7UH 13.5A 5.4MOHM SM Würth Elektronik |
1,080 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 13.5 A | 27A | Shielded | 5.4mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|

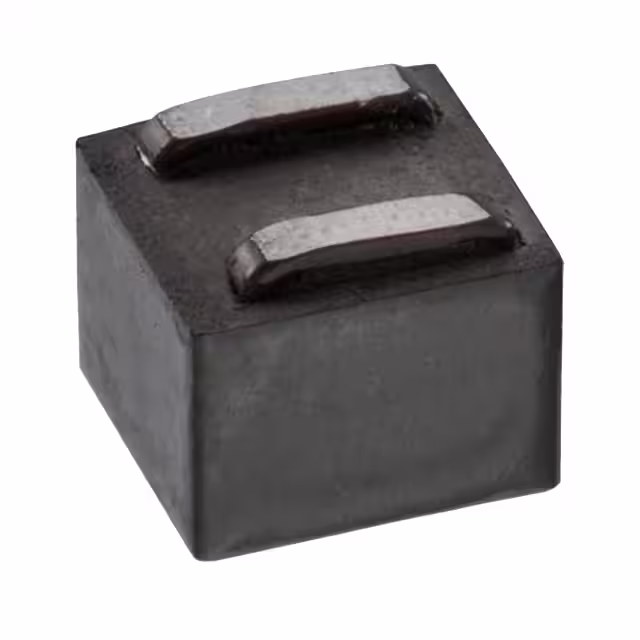

74439369056FIXED IND 5.6UH 11.5A 6.4MOHM SM Würth Elektronik |
684 |
|
数据手册 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 5.6 µH | ±20% | 11.5 A | 23A | Shielded | 6.4mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|

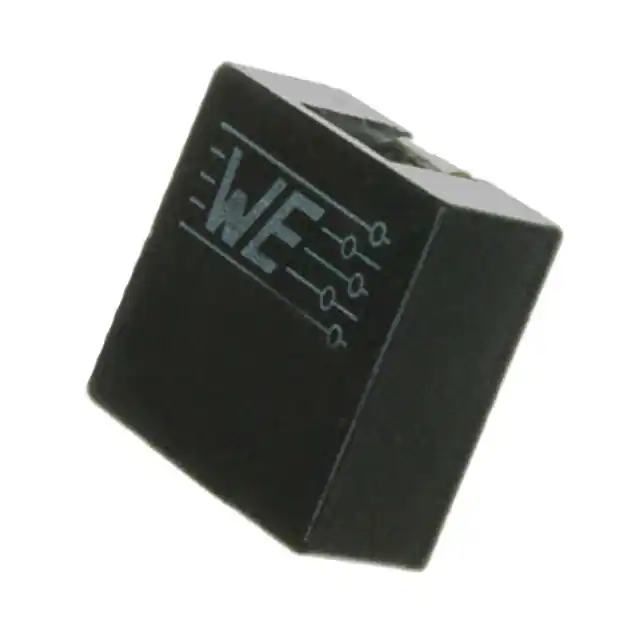

7443556190FIXED IND 1.9UH 32.5A 1.2MOHM SM Würth Elektronik |
497 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.9 µH | ±20% | 32.5 A | 52A | Shielded | 1.2mOhm | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
7443556260FIXED IND 2.6UH 31.5A 1.58 MOHM Würth Elektronik |
279 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.6 µH | ±20% | 31.5 A | 50A | Shielded | 1.58mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435571500FIXED IND 15UH 14A 9 MOHM SMD Würth Elektronik |
1,780 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 14 A | 14A | Shielded | 9mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
|
|
74435572200FIXED IND 22UH 11A 14.6 MOHM SMD Würth Elektronik |
1,712 |
|
数据手册 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 11 A | 11A | Shielded | 14.6mOhm | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1890 | 0.720" L x 0.717" W (18.30mm x 18.20mm) | 0.362" (9.20mm) |
