固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744761268AFIXED IND 680NH 120MA 2.9OHM SMD Würth Elektronik |
3,509 |
|
数据手册 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 120 mA | - | Unshielded | 2.9Ohm Max | 20 @ 250MHz | 300MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
744761310AWE-KI SMT WIRE WOUND CERAMIC IND Würth Elektronik |
2,303 |
|
数据手册 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1 µH | ±5% | 120 mA | - | Unshielded | 3.5Ohm Max | 30 @ 250MHz | 200MHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|

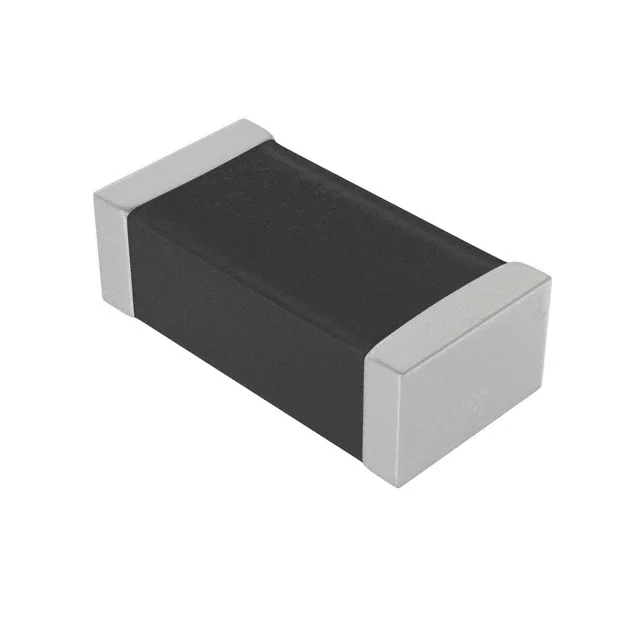

744901039FIXED IND 3.9NH 340MA 500MOHM SM Würth Elektronik |
13,529 |
|
数据手册 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 3.9 nH | ±0.1nH | 340 mA | - | Unshielded | 500mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901047FIXED IND 4.7NH 320MA 600MOHM SM Würth Elektronik |
10,725 |
|
数据手册 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 4.7 nH | ±0.1nH | 320 mA | - | Unshielded | 600mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901112FIXED IND 12NH 180MA 1.6 OHM SMD Würth Elektronik |
5,081 |
|
数据手册 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 12 nH | ±2% | 180 mA | - | Unshielded | 1.6Ohm Max | 13 @ 500MHz | 3.7GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901010FIXED IND 1NH 700MA 100 MOHM SMD Würth Elektronik |
1,848 |
|
数据手册 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 12GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
74479184FIXED IND Würth Elektronik |
1,456 |
|
数据手册 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 33 µH | ±10% | 385 mA | - | Unshielded | 900mOhm Max | 35 @ 1MHz | 13MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|

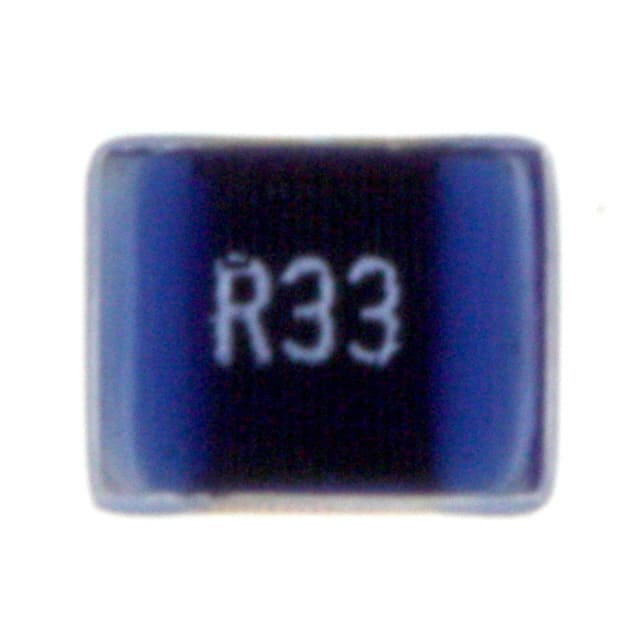

744762233AFIXED IND 330NH 500MA 900MOHM SM Würth Elektronik |
5,401 |
|
数据手册 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 500 mA | - | Unshielded | 900mOhm Max | 45 @ 100MHz | 570MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744758327AFIXED IND 2.7UH 520MA 1.1OHM SMD Würth Elektronik |
4,265 |
|
数据手册 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 520 mA | - | Unshielded | 1.1Ohm Max | 20 @ 7.96MHz | 135MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

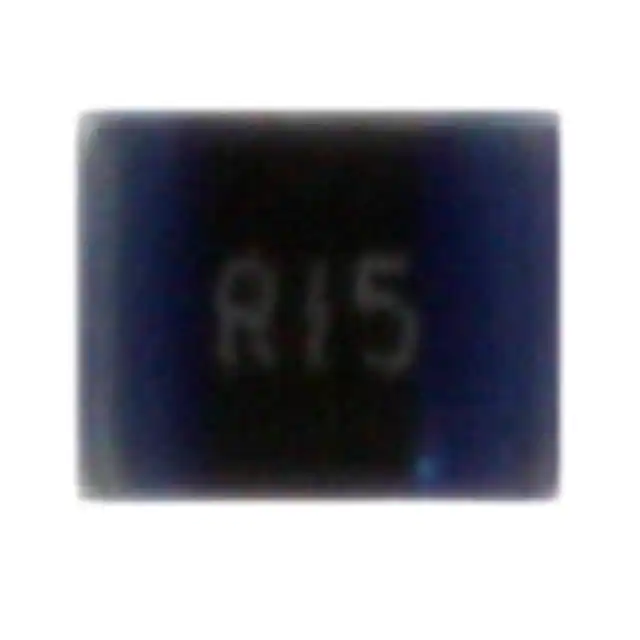

744762215AFIXED IND 150NH 800MA 220MOHM SM Würth Elektronik |
3,186 |
|
数据手册 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 800 mA | - | Unshielded | 220mOhm Max | 45 @ 100MHz | 880MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
