固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2525CZER220M5AFIXED IND 22UH 2.8A 174 MOHM SMD Vishay Dale |
23,202 |
|
数据手册 |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2.8 A | 2.2A | Shielded | 174mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP4040DZER6R8M01FIXED IND 6.8UH 8A 23.3 MOHM SMD Vishay Dale |
9,994 |
|
数据手册 |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 8 A | 13.5A | Shielded | 23.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLP2020CZERR33M01FIXED IND 330NH 13.7A 5.56 MOHM Vishay Dale |
3,969 |
|
数据手册 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 13.7 A | 19A | Shielded | 5.56mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZER100M11FIXED IND 10UH 2.75A 131.9 MOHM Vishay Dale |
3,901 |
|
数据手册 |
IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.75 A | 2.25A | Shielded | 131.9mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZERR68M01FIXED IND 680NH 10.2A 8.96 MOHM Vishay Dale |
3,366 |
|
数据手册 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 10.2 A | 13.5A | Shielded | 8.96mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|

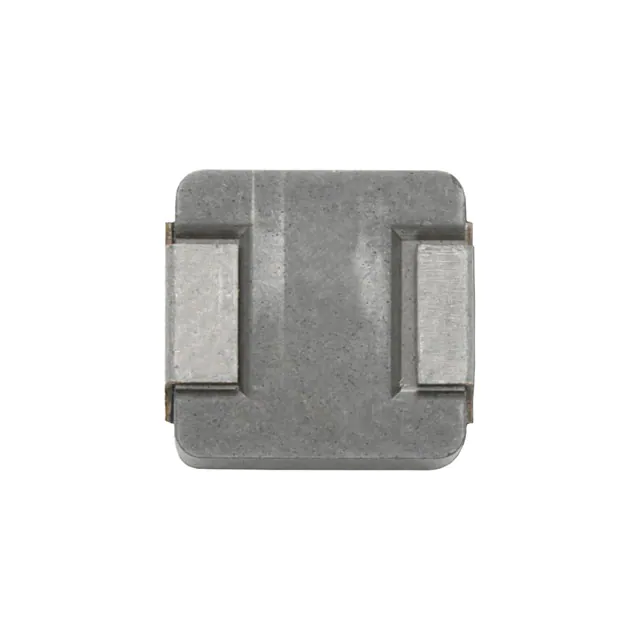

IHLP2525CZER2R2MA1IHLP-2525CZ-A1 2.2 20% ER E3 Vishay Dale |
3,284 |
|
数据手册 |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP1212BZERR68M11FIXED IND 680NH 5.5A 20.4MOHM SM Vishay Dale |
3,078 |
|
数据手册 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 5.5 A | 5A | Shielded | 20.4mOhm Max | - | 105MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
IHLP2020BZER2R2M51IHLP-2020BZ-51 2.2 20% ER E3 Vishay Dale |
1,238 |
|
数据手册 |
IHLP-2020BZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 5.1 A | 6.4A | Shielded | 47.6mOhm Max | - | 43.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2525CZER100M8AFIXED IND 10UH 4A 76.9 MOHM SMD Vishay Dale |
14,100 |
|
数据手册 |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 2.9A | Shielded | 76.9mOhm Max | - | 13.9MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP1212BZERR36M11FIXED IND 360NH 6.3A 13.8MOHM SM Vishay Dale |
6,360 |
|
数据手册 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 6.3 A | 6.5A | Shielded | 13.8mOhm Max | - | 170MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
