固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISC1812ER220JFIXED IND 22UH 227MA 1.36OHM SMD Vishay Dale |
3,950 |
|
数据手册 |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±5% | 227 mA | - | Shielded | 1.36Ohm Max | 50 @ 2.52MHz | 14MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHLP4040EDER220M5AFIXED IND 22UH 5.53A 49.22 MOHM Vishay Dale |
324 |
|
数据手册 |
IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5.53 A | 4.99A | Shielded | 49.22mOhm Max | - | 7.23MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
IHLP2020BZER3R3M01FIXED IND 3.3UH 3.3A 85.5MOHM SM Vishay Dale |
6,397 |
|
数据手册 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.3 A | 8.5A | Shielded | 85.5mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|

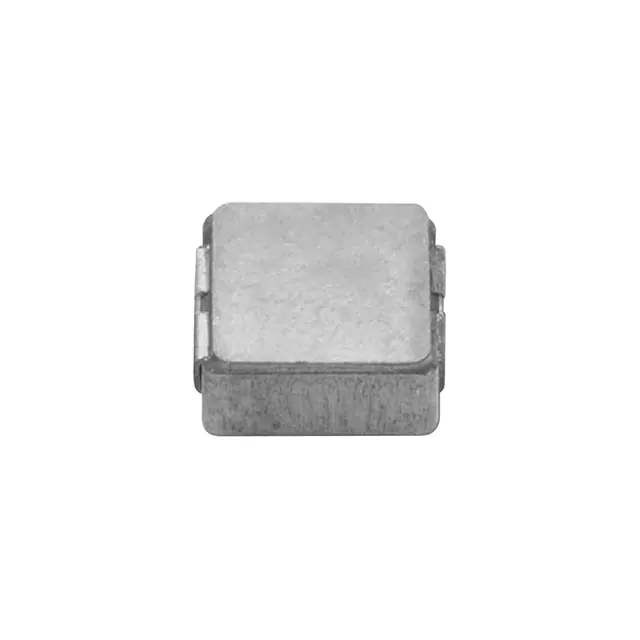

IHLP2525CZER100MA1IHLP-2525CZ-A1 10 20% ER E3 Vishay Dale |
641 |
|
数据手册 |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2020BZER6R8M01FIXED IND 6.8UH 2.4A 150MOHM SMD Vishay Dale |
15,277 |
|
数据手册 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.4 A | 4.3A | Shielded | 150mOhm Max | - | 21MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2525CZERR15M01FIXED IND 150NH 26A 2.5 MOHM SMD Vishay Dale |
1,541 |
|
数据手册 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2020BZER100M01FIXED IND 10UH 2.3A 199 MOHM SMD Vishay Dale |
15,324 |
|
数据手册 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.3 A | 4A | Shielded | 199mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2525BDER2R2M01FIXED IND 2.2UH 6.5A 34 MOHM SMD Vishay Dale |
12,268 |
|
数据手册 |
IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 6.5 A | 14A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
IHLP2020CZER3R3M01FIXED IND 3.3UH 5A 54.7 MOHM SMD Vishay Dale |
5,558 |
|
数据手册 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 5 A | 8.5A | Shielded | 54.7mOhm Max | - | 31MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP1616BZERR10M51FIXED IND 0.1 UH 17.3 A 4.2 MOHM Vishay Dale |
4,742 |
|
数据手册 |
IHLP-1616BZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 17.3 A | 19A | Shielded | 4.2mOhm Max | - | 320MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
