固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2525CZERR22M01FIXED IND 220NH 23A 2.8 MOHM SMD Vishay Dale |
8,697 |
|
数据手册 |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020BZERR47M01FIXED IND 470NH 11.5A 9.4MOHM SM Vishay Dale |
3,078 |
|
数据手册 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 11.5 A | 21A | Shielded | 9.4mOhm Max | - | 98MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IMC1210ER8R2KFIXED IND 8.2UH 194MA 2 OHM SMD Vishay Dale |
2,631 |
|
数据手册 |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±10% | 194 mA | - | Unshielded | 2Ohm Max | 30 @ 7.96MHz | 38MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
IFLR2727EZERR15M01FIXED IND 150NH 45A 0.35MOHM SMD Vishay Dale |
6,369 |
|
数据手册 |
IFLR-2727EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 150 nH | ±20% | 45 A | 30A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|

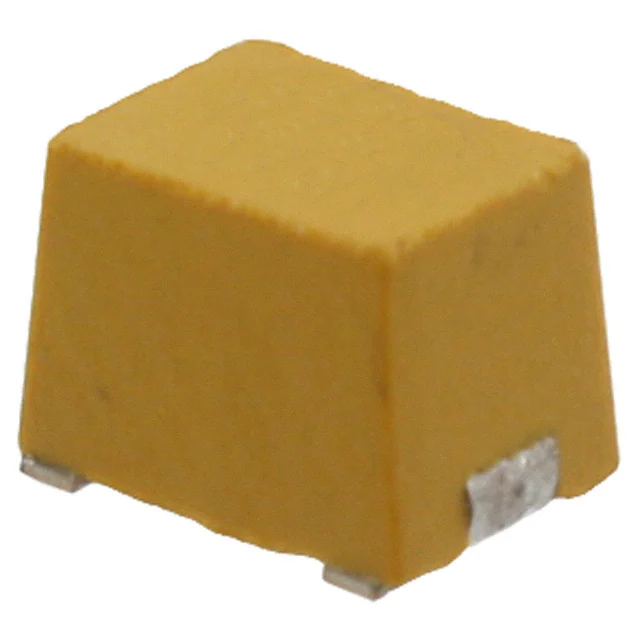

IMC1812ER100KFIXED IND 10UH 250MA 1.6 OHM SMD Vishay Dale |
2,900 |
|
数据手册 |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHLP1212BZERR88M11FIXED IND 880NH 5.5A 22 MOHM SMD Vishay Dale |
10,211 |
|
数据手册 |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 880 nH | ±20% | 5.5 A | 4.5A | Shielded | 22mOhm Max | - | 85MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
IHLP1212AEER1R5M11FIXED IND 1.5UH 2.7A 46 MOHM SMD Vishay Dale |
5,118 |
|
数据手册 |
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.7 A | 4.5A | Shielded | 46mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|
IHLP1616BZER1R0M01FIXED IND 1UH 3.75A 37 MOHM SMD Vishay Dale |
13,772 |
|
数据手册 |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.75 A | 8.5A | Shielded | 37mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

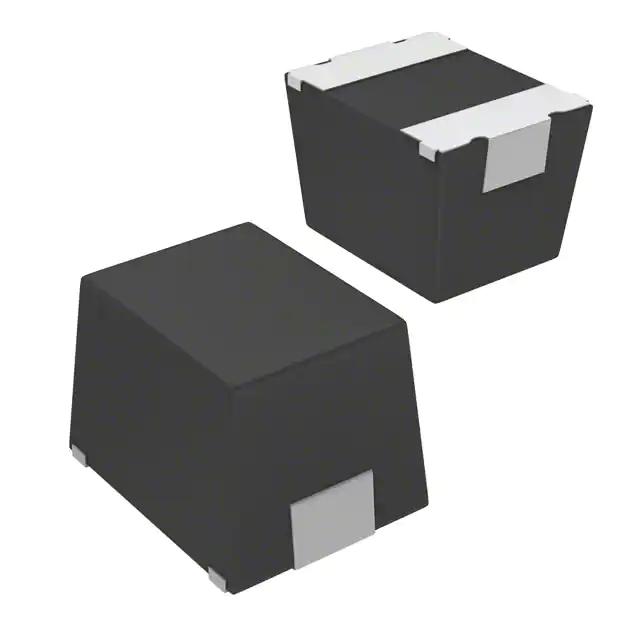

ISC1210ER101KFIXED IND 100UH 80MA 12 OHM SMD Vishay Dale |
2,125 |
|
数据手册 |
ISC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 100 µH | ±10% | 80 mA | - | Shielded | 12Ohm Max | 30 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
IHLP1212BZEV3R3M5AFIXED IND 3.3UH 3.26A 96.79MOHM Vishay Dale |
1,669 |
|
数据手册 |
IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.26 A | 2.52A | Shielded | 96.79mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
