固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP3232CZERR47M01FIXED IND 470NH 21.5A 3.33 MOHM Vishay Dale |
14,600 |
|
数据手册 |
IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 21.5 A | 35A | Shielded | 3.33mOhm Max | - | 77MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
IHLP2525CZER2R2M8AFIXED IND 2.2UH 8.1A 18.3MOHM SM Vishay Dale |
8,141 |
|
数据手册 |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8.1 A | 10.8A | Shielded | 18.3mOhm Max | - | 34.3MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER1R0M8AFIXED IND 1UH 12A 8.45 MOHM SMD Vishay Dale |
1,920 |
|
数据手册 |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12 A | 13A | Shielded | 8.45mOhm Max | - | 59.1MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
ISC1812ER221JFIXED IND 220UH 105MA 6.3OHM SMD Vishay Dale |
1,824 |
|
数据手册 |
ISC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 105 mA | - | Shielded | 6.3Ohm Max | 40 @ 796kHz | 4.2MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IHLP2525CZER150M8AFIXED IND 15UH 2.9A 127 MOHM SMD Vishay Dale |
1,374 |
|
数据手册 |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.9 A | 2.8A | Shielded | 127mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP3232CZERR22M01FIXED IND 220NH 32A 1.71MOHM SMD Vishay Dale |
1,575 |
|
数据手册 |
IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 32 A | 43A | Shielded | 1.71mOhm Max | - | 104MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|

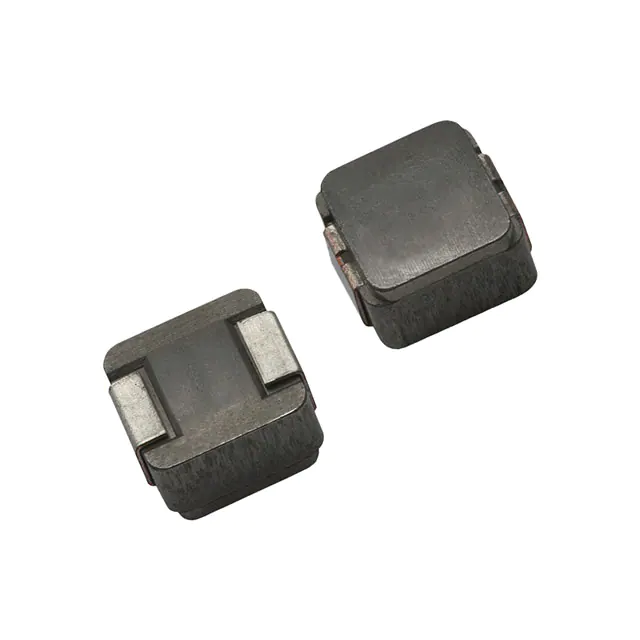

IHLP2020CZER1R0MA1IHLP-2020CZ-A1 1 20% ER E3 Vishay Dale |
942 |
|
数据手册 |
IHLP-2020CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 9.2 A | 12A | Shielded | 13.7mOhm Max | - | 59MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP2020CZER6R8M8AFIXED IND 6.8UH 3.2A 111MOHM SMD Vishay Dale |
844 |
|
数据手册 |
IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 3.2 A | 2.2A | Shielded | 111mOhm Max | - | 18.8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP1212ABERR47M11FIXED IND 470NH 6.4A 19.5MOHM SM Vishay Dale |
14,299 |
|
数据手册 |
IHLP-1212AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6.4 A | 7A | Shielded | 19.5mOhm Max | - | 140MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.047" (1.20mm) |
|
IHLP3232DZERR47M01FIXED IND 470NH 25A 2.62MOHM SMD Vishay Dale |
5,943 |
|
数据手册 |
IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 25 A | 31.5A | Shielded | 2.62mOhm Max | - | 74MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
