固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

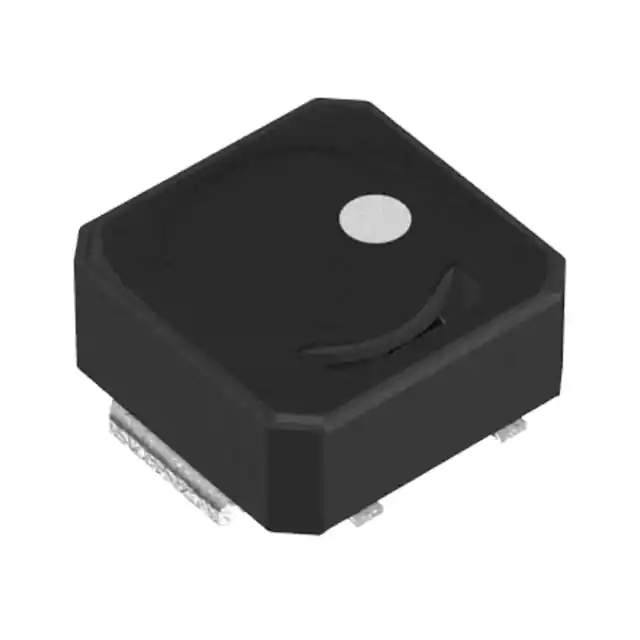

VLCF5020T-2R2N2R6-3FIXED IND 2.2UH 2.62A 43MOHM SMD TDK Corporation |
12,426 |
|
数据手册 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.62 A | 2.62A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
SLF7045T-4R7M2R0-PFFIXED IND 4.7UH 2.1A 36 MOHM SMD TDK Corporation |
99,112 |
|
数据手册 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.1 A | 2A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

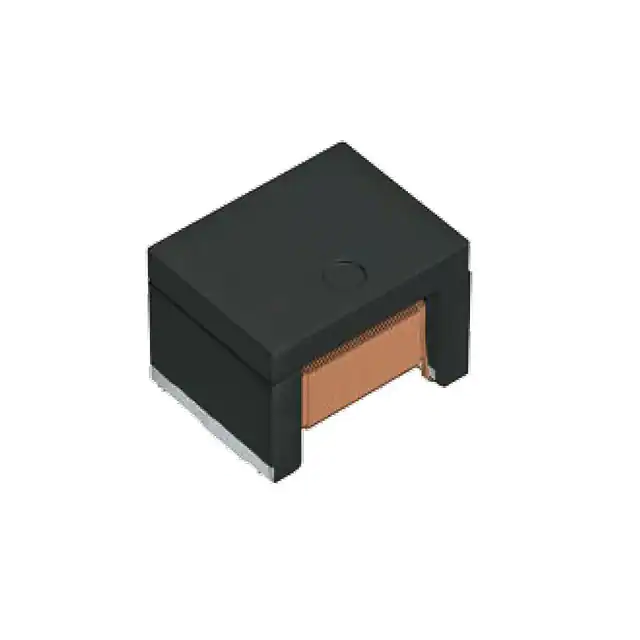

ADL3225V-470MT-TL000FIXED IND 47UH 500MA 900MOHM SMD TDK Corporation |
12,684 |
|
数据手册 |
ADL-V | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 500 mA | 300mA | Unshielded | 900mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|

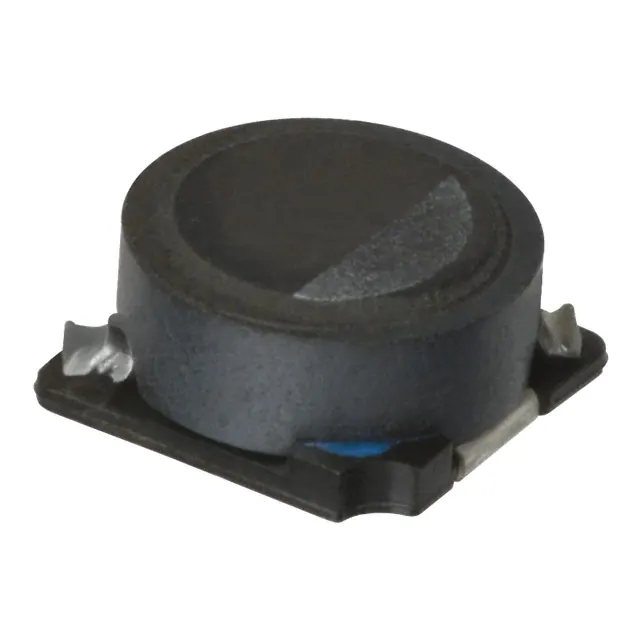

SLF6028T-101MR42-PFFIXED IND 100UH 640MA 516MOHM SM TDK Corporation |
36,643 |
|
数据手册 |
SLF | Nonstandard | Cut Tape (CT) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 640 mA | 420mA | Shielded | 516mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
TFM322512ALMA100MTAAFIXED IND 10UH 1.2A 360 MOHM SMD TDK Corporation |
2,321 |
|
数据手册 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
TFM322512ALMAR47MTAAFIXED IND 470NH 5.3A 21MOHM SMD TDK Corporation |
10,929 |
|
数据手册 |
TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 5.3 A | - | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

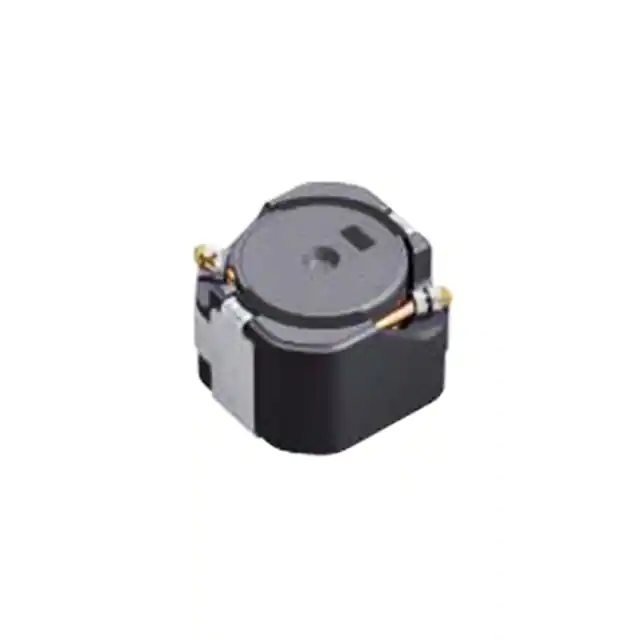

CLF6045NIT-4R7N-DFIXED IND 4.7UH 3.1A 30 MOHM SMD TDK Corporation |
4,353 |
|
数据手册 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.1A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|

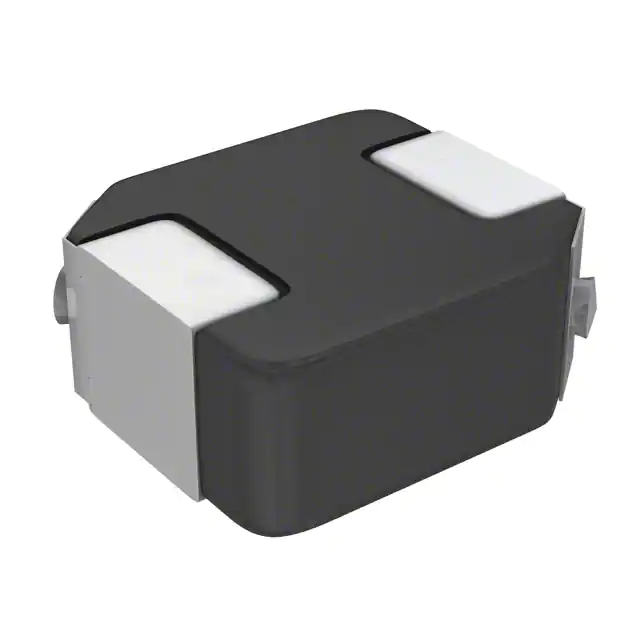

SPM6530T-R47M170FIXED IND 470NH 20A 3.63MOHM SMD TDK Corporation |
3,097 |
|
数据手册 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 20 A | 20.5A | Shielded | 3.63mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|
CLF5030NIT-220M-DFIXED IND 22UH 1.1A 240MOHM SMD TDK Corporation |
16,914 |
|
数据手册 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | 1.1A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
CLF7045NIT-470M-DFIXED IND 47UH 1.26A 160MOHM SMD TDK Corporation |
12,896 |
|
数据手册 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.26 A | 1.26A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
