固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS6045EX-330MFIXED IND 33UH 1.5A 228 MOHM SMD TDK Corporation |
16,441 |
|
数据手册 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.9A | Shielded | 175mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS252010CX-1R0M-1FIXED IND 1UH 2.29A 65 MOHM SMD TDK Corporation |
9,432 |
|
数据手册 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.29 A | 2.25A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
VLS6045EX-470MFIXED IND 47UH 1.3A 299 MOHM SMD TDK Corporation |
64,362 |
|
数据手册 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.8A | Shielded | 230mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

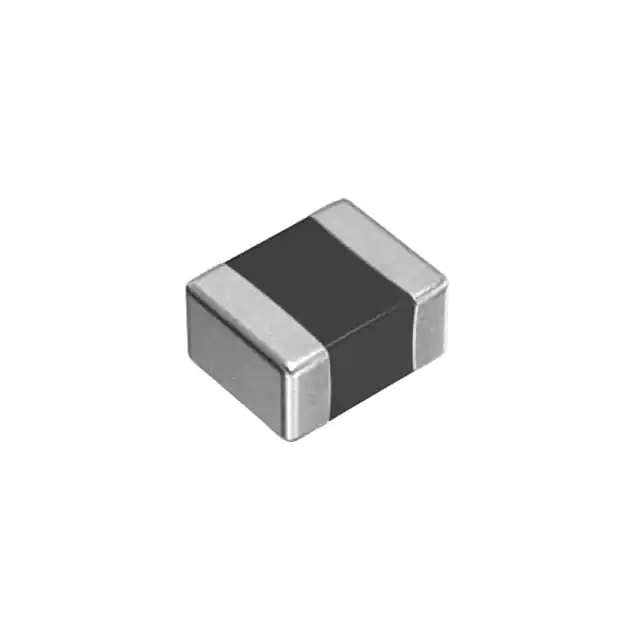

TFM201610ALM-R47MTAAFIXED IND 470NH 4.5A 34MOHM SMD TDK Corporation |
14,394 |
|
数据手册 |
TFM-ALM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 4.5 A | 5.8A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
TFM201610GHM-2R2MTAAFIXED IND 2.2UH 1.9A 152MOHM SMD TDK Corporation |
21,364 |
|
数据手册 |
TFM-GHM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.9 A | 2.4A | Shielded | 152mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
TFM201610ALM-1R0MTAAFIXED IND 1UH 3.1A 56 MOHM SMD TDK Corporation |
5,942 |
|
数据手册 |
TFM-ALM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.1 A | 4.3A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

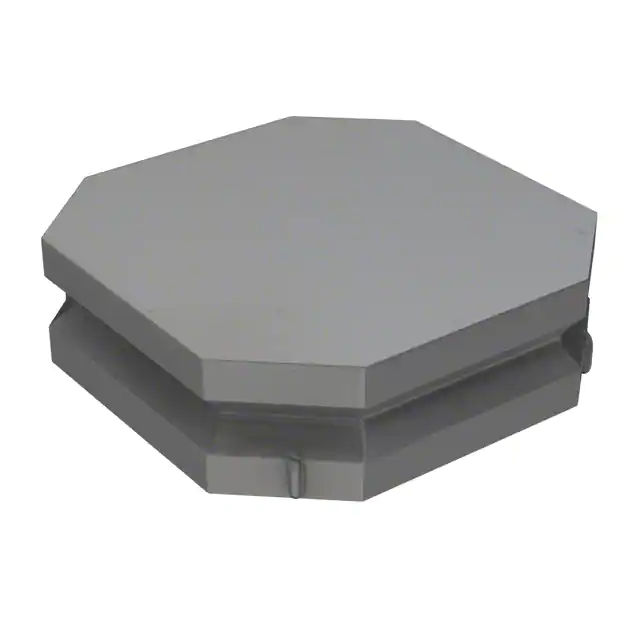

VLS4012ET-2R2MFIXED IND 2.2UH 1.7A 81 MOHM SMD TDK Corporation |
11,817 |
|
数据手册 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 81mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
TFM201610GHM-1R0MTAAFIXED IND 1UH 3.1A 60 MOHM SMD TDK Corporation |
14,524 |
|
数据手册 |
TFM-GHM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.1 A | 3.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
TFM252012ALMA1R0MTAAFIXED IND 1UH 3.7A 42 MOHM SMD TDK Corporation |
11,008 |
|
数据手册 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.7 A | 4.2A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS3012HBX-220MFIXED IND 22UH 1.12A 761MOHM SMD TDK Corporation |
24,722 |
|
数据手册 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.12 A | 1.09A | Shielded | 761mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
